DiskStation DS1515+
Ultra-performance NAS optimized for intensive tasks and encryption

Synology DiskStation DS1515+

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

Featuring a quad-core processor, hardware encryption engine, and flawless software integration, DS1515+ is a powerful, expandable 5-bay NAS server that delivers outstanding speed and accelerated data encryption. Easily scalable, the DS1515+ can be equipped with up to 6GB of DDR3 RAM and host up to 90TB of raw capacity with two Synology DX513 units.

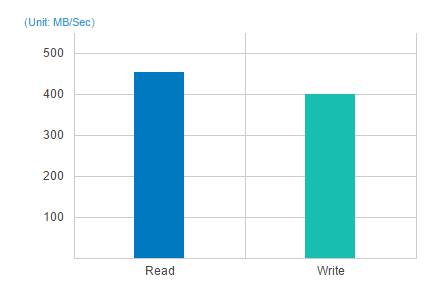

Quad-core CPU for blazing-fast performance

DS1515+ is powered by a quad-core CPU running at 2.4 GHz. Combined with 2GB of DDR3 RAM (expandable to 6GB), it delivers blazing-fast performance over 450.77 MB/s reading and 396.5 MB/s writing.1 That much power makes it easy for DS1515+ to multitask and provide consistently high throughput to all connected clients.

Quad-Core CPU blazing fast

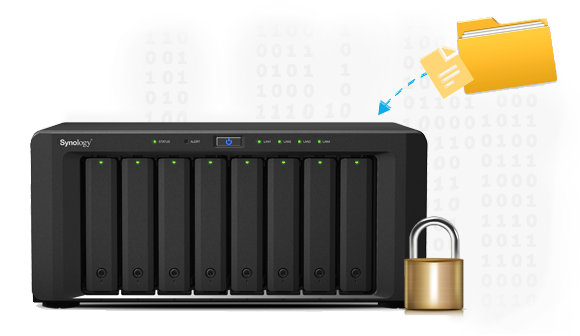

Fast encrypted data transmission with AES-NI

Encrypting data is essential to a healthy security policy. Equipped with a dedicated hardware encryption engine, DS1515+ is the ideal digital locker for sensitive data; files and folders are encrypted on the fly without any perceived performance loss. DS1515+ delivers encrypted data transmission speeds over 448.71 MB/s reading and 191.12 MB/s writing.

Fast Encrypted with AES-NI

Robust scalability up to 108TB

As your data storage needs grow, DS1515+ can be connected to dedicated DX513 expansion units for additional storage on the fly, growing capacity with minimal effort. With two DX513 expansion units connected through specially designed eSATA connectors, raw capacity can be as high as 90TB

Robust scalability up to 108TB

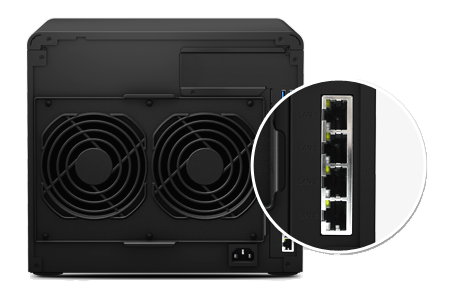

Quad LAN ports for failover and Link Aggregation support

Equipped with four Ethernet ports featuring failover and Link Aggregation support, DS1515+ ensures continual network uptime even if LAN connection malfunction occurs on one port, reducing the chance of service disruption and costly downtime. Link Aggregation improves connection speeds beyond the limits of a single network cable or port.

Quad LAN ports for failover and Link Aggregation support

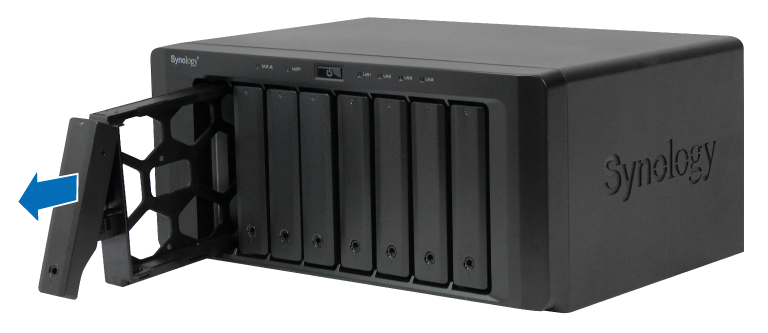

Easy installation, hassle-free maintenance

Easy installation and hot-swappable hard drive support ensures easy maintenance and continuous service uptime should a hard drive need replacement. In addition, DS1515+ incorporates a passive cooling design to reduce dependency on the dedicated processor cooling fan, thus mitigating any critical point of failure. When the system detects a fan failure, the built-in redundancy mechanism ensures continuous operation until the replacement fan arrives.

Easy Installation, hassle free maintenance

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Award winning OS

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, DS1515+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS1515+ allows IT administrators to fine tune access controls and set up privileges to files and folders on DS1515+ through the familiar Windows user interface. With compatibility for major protocols, DS1515+ can eliminate server configuration overhead and enhance IT administrators’ efficiency.

Fit into business environments easily

Seamless storage solution for virtualization environments

DS1515+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, DS1515+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Seamless storage solution

Synology CMS (Central Management System)

For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

Synology CMS

Optimize storage management

With Synology's Storage Manager, DS1515+ allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot Spare also greatly enhance management efficiency and fit deployment of any kind.

Optimize storage management

All-in-one server

With just one DS1515+, it's possible to handle a vast amount of tasks. DS1515+ helps your company gain a competitive edge by acting as your multi-function server. Directory Server provides LDAP service, while DNS and DHCP packages allow you to host a domain name server and automate network IP assignment at no extra cost. With Synology's Proxy Server, you can regulate content access and monitor who can access which website while saving bandwidth. You can host up to 30 websites with Web Station, safeguard the office environments with Surveillance Station, send and receive mails using your own email domain with Mail Station, share printing capability with Printer Server, make DS1515+ act as a VPN server to access company’s resources remotely, and more.

All-in-one Server

Ensuring business continuity

Uninterrupted availability is a critical goal for all businesses. DS1515+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, DS1515+ also ensures redundancy in the event of unexpected network failure.

Ensuring business continuity

Effective backup solution

Synology DS1515+ can serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to Synology NAS using Cloud Station. Whenever you modify a file, the changes are backed up to DS1515+ automatically. Mac users also enjoy native Apple® Time Machine support. You can also back up data from your DS1515+ to another DiskStation, rsync servers, external drives, or even Amazon® S3, Glacier cloud service, Microsoft Azure, SFR, and hicloud. "Backup & Replication" allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions.

Powerful Backup Solutions

Increase business productivity with cloud solutions

With comprehensive cloud solutions, DS1515+ lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.

Increase business productivity with cloud solutions

Secure your data

DS1515+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS1515+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

Product Views:

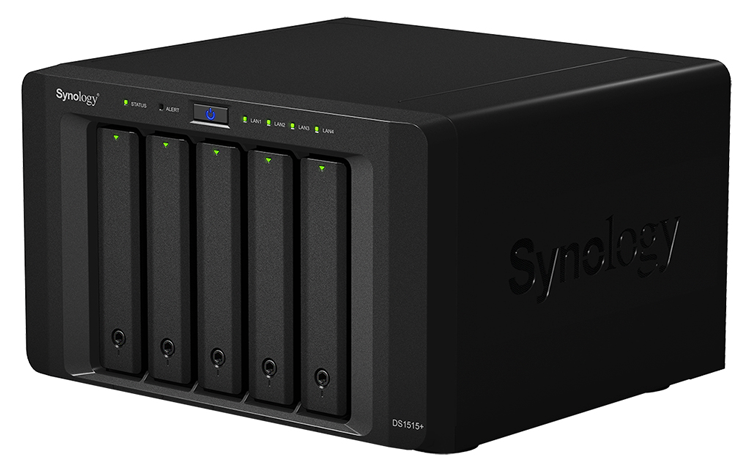

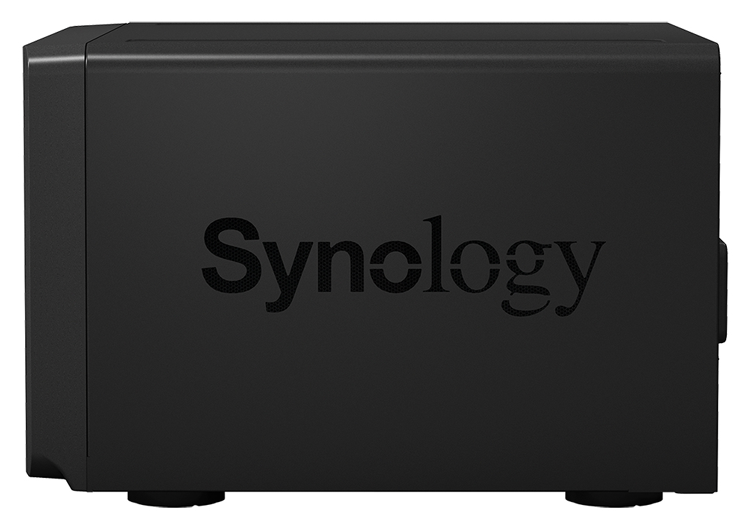

DS1515+ Front View DS1515+ Left Angle DS1515+ Left Side

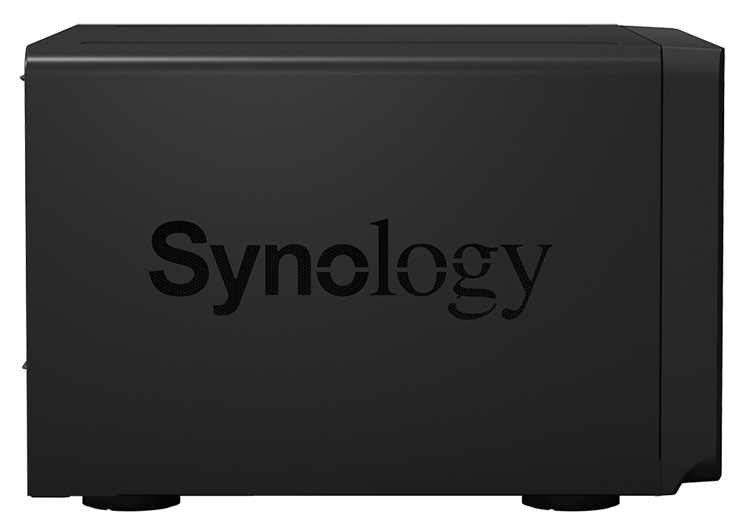

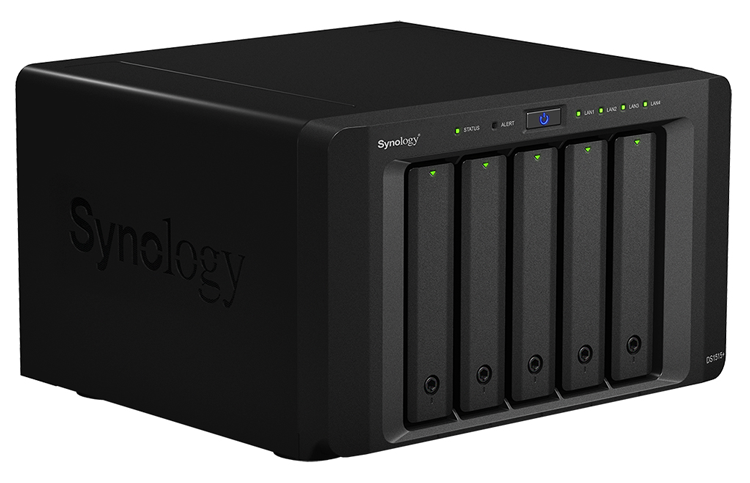

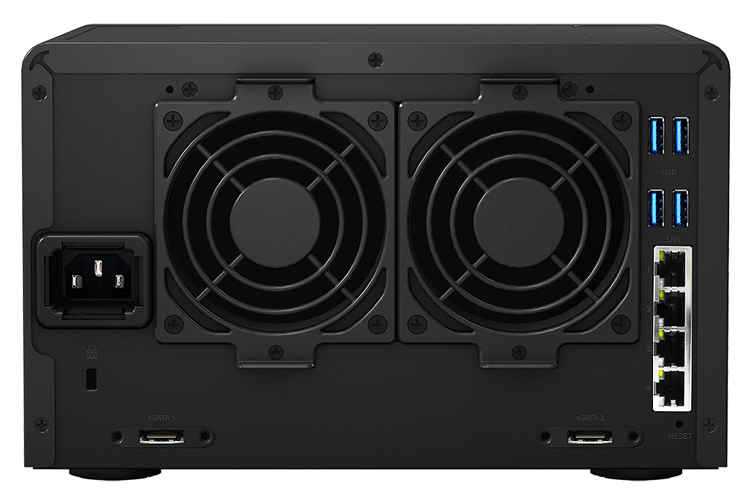

DS1515+ Rear DS1515+ Right Side DS1515+ Right Angle

Technical Specifications:

Technical Specifications:
Hardware Specifications
CPU Model Intel Atom C2538
CPU Frequency Quad Core 2.4 GHz
System Memory 2 GB DDR3
Memory Module Pre-installed 2 GB X 1
Total Memory Slots 2
Memory Expandable up to 6 GB (2 GB + 4 GB)
Maximum Drive Bays with Expansion Unit 15
Maximum Internal Raw Capacity 40 TB (8 TB HDD X 5) (Capacity may vary by RAID types)
USB 3.0 Port 4
Size (Height X Width X Depth) 157 mm X 248 mm X 233 mm
Weight 4.17 kg
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
System Fan 80 mm X 80 mm X 2 pcs
Noise Level 22.3 dB(A)
Power Supply Unit / Adapter 250W
AC Input Power Voltage 100V to 240V AC
Power Consumption 38.39 W (Access)
21.63 W (HDD Hibernation)
Power Frequency 50/60 Hz, Single Phase
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 3 Years
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Notes:
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Performance:

5-bay to 12-bay NAS

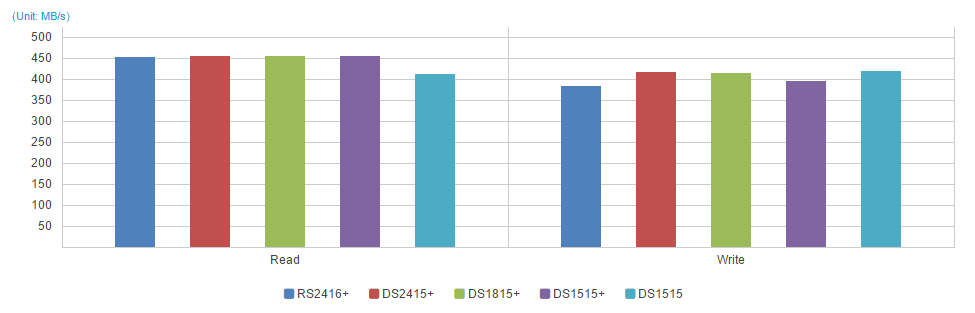

Gigabit Link Aggregation Environment - Sequential Throughput (64KB)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Read 450.34 451.59 451.76 451.52 410.08
Write 380.77 414.26 411.55 392.49 416.89
Sequential Throughput 64KB

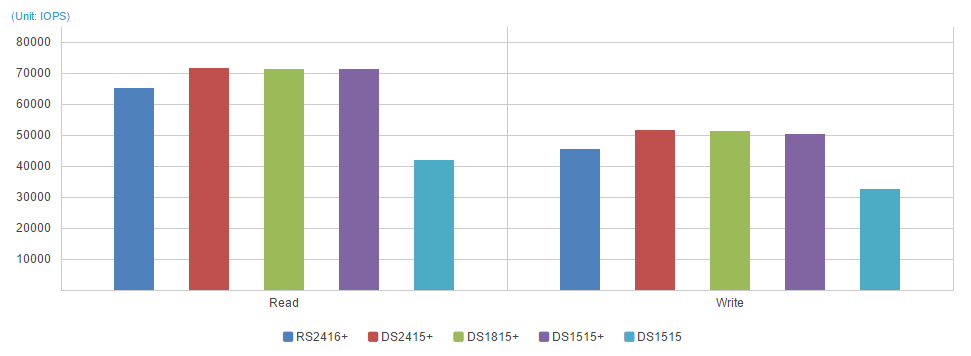

Gigabit Link Aggregation Environment - Sequential IOPS (4KB)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Read 64835.03 71421.87 70964.69 70941.67 41492.10
Write 45255.00 51292.80 50906.29 49846.44 32161.95

Sequential IOPS 4KB

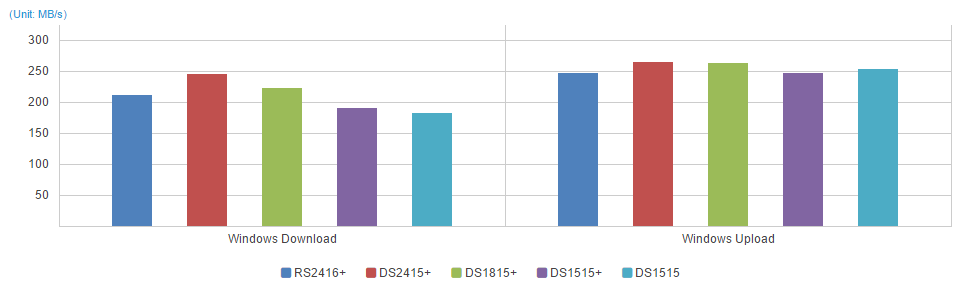

Gigabit Link Aggregation Environment - Windows Upload/Download (1MB x 5000 files)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Windows Download 209.50 243.44 221.31 188.88 179.87
Windows Upload 244.66 263.38 260.91 245.73 251.90

Windows upload/download 1MB x 5000

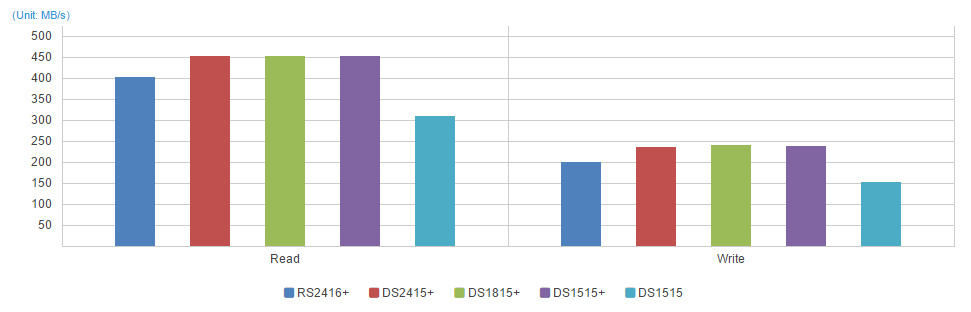

Gigabit Link Aggregation Environment - AES 256-bit Sequential Throughput (64KB)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Read 399.76 451.14 450.79 450.70 307.72
Write 198.70 233.72 237.96 236.17 149.90

AES 256-bit Sequential Throughput 64KB

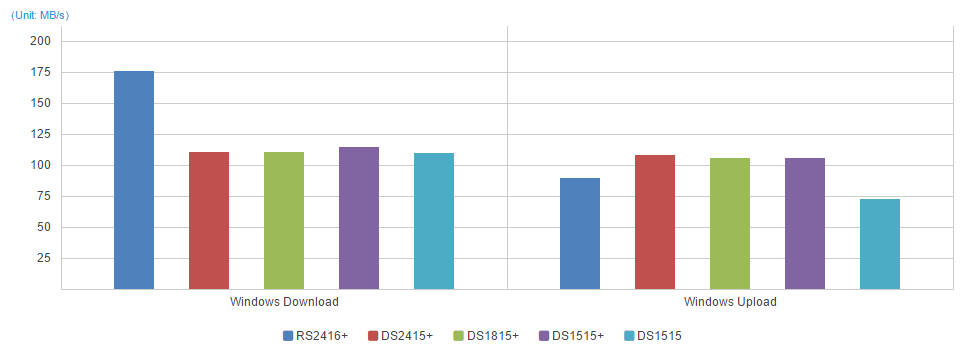

Gigabit Link Aggregation Environment - AES 256-bit File Upload/Download in Windows (1MB x 5000 files)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Windows Download 174.62 109.36 109.47 113.57 108.68
Windows Upload 88.42 107.12 104.99 105.09 72.01

AES 256-bit windows upload/download

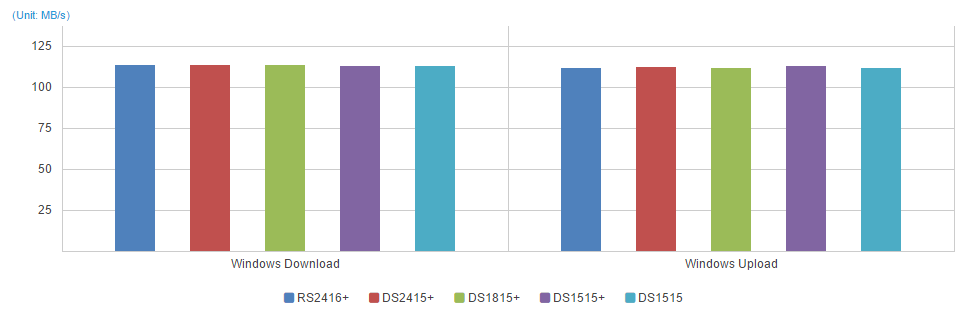

Gigabit Ethernet Environment - Windows Upload/Download (5GB file)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Windows Download 112.69 112.71 112.67 112.32 112.34
Windows Upload 111.11 111.76 110.85 112.03 111.08

Windows upload/download 5GB

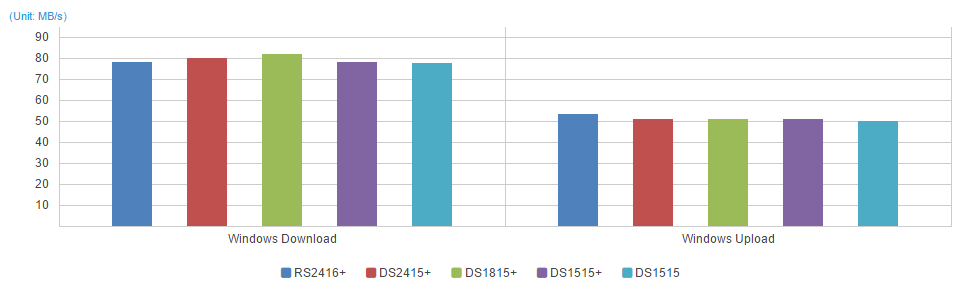

Gigabit Ethernet Environment - Windows Upload/Download (1MB x 5000 files)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Windows Download 77.83 79.39 81.22 77.77 76.97
Windows Upload 52.72 50.54 50.39 50.35 49.53

Gigabit Ethernet Environment windows upload/download

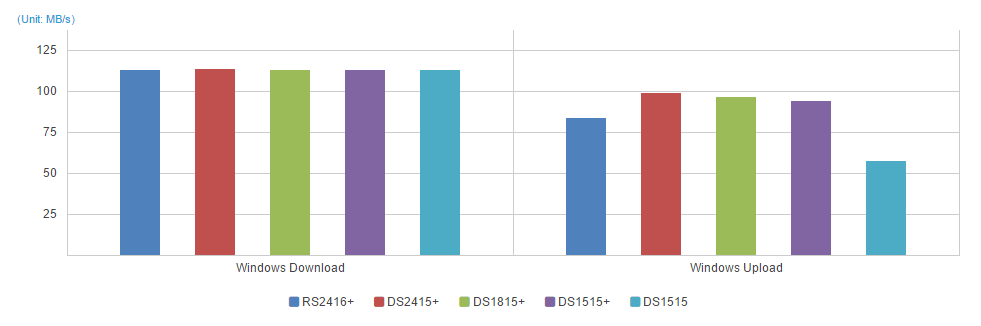

Gigabit Ethernet Environment - AES 256-bit File Upload/Download in Windows (5GB file)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Windows Download 112.02 112.55 112.40 112.28 112.40
Windows Upload 82.71 97.91 95.52 93.03 56.48

AES 256-bit File Upload/Download in Windows (5GB file)

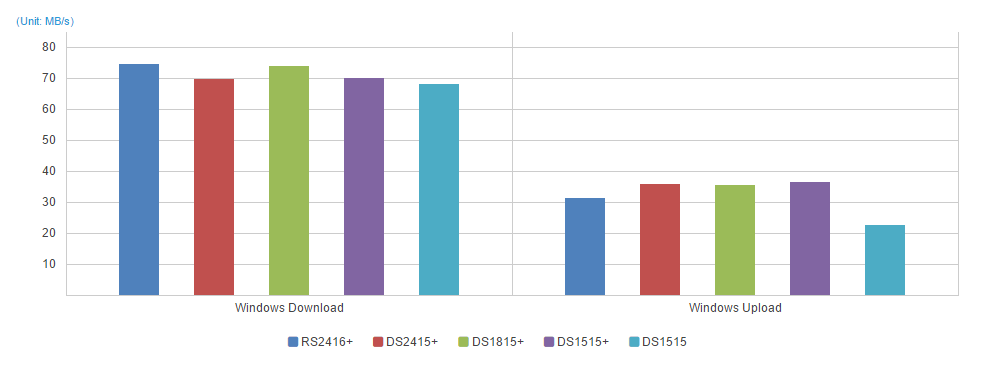

Gigabit Ethernet Environment - AES 256-bit File Upload/Download in Windows (1MB x 5000 files)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Windows Download 74.25 69.37 73.52 69.76 67.74
Windows Upload 31.04 35.40 35.19 36.22 22.25

AES 256-bit File Upload/Download in Windows

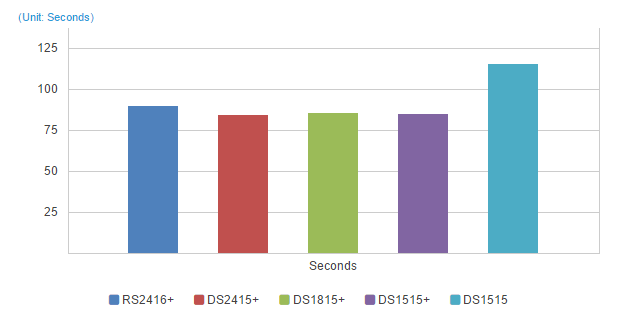

Gigabit Ethernet Environment - Web Server Response Time

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
Seconds 88.95 83.64 84.82 83.88 114.48

Web Server Response Time

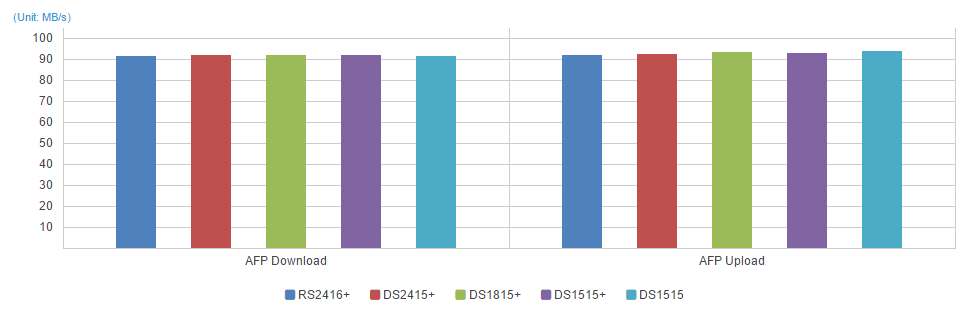

Mac Test Environment - AFP Upload/Download (5GB file)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
AFP Download 90.78 91.56 91.56 91.31 90.91
AFP Upload 91.64 92.04 93.02 92.21 93.56

Mac Test Environment AFP upload/download

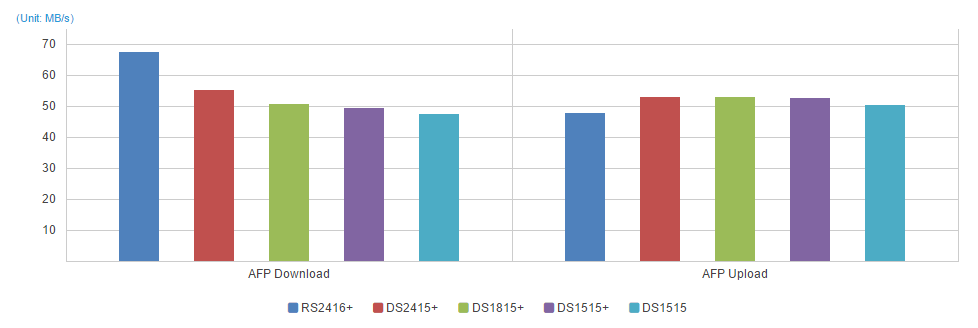

Mac Test Environment - AFP Upload/Download (1MB x 5000 files)

Model RS2416+ DS2415+ DS1815+ DS1515+ DS1515
AFP Download 67.16 54.78 50.32 48.89 47.08
AFP Upload 47.58 52.57 52.69 52.16 50.13

iSCSI Sequential IOPS 4KB

Documentation:

Download the Synology DiskStation DS1515+ Datasheet  (PDF).
