DiskStation DS3615xs
Premium performance and scalability for distributed enterprises

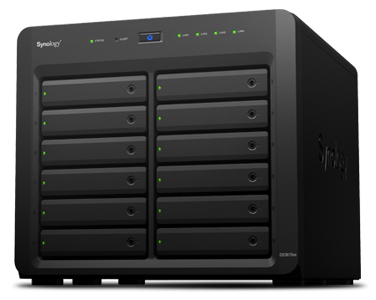

Synology DiskStation DS3615xs

Sorry, this product is no longer available, Please contact us for a replacement product!

Overview:

Synology DiskStation DS3615xs provides a premium-performance NAS solution for large scale businesses that require an efficient way to centralize data protection, simplify data management, deploy virtualization solutions, and rapidly expand storage capacity with minimal time spent on setup and maintenance. Synology DS3615xs is backed with Synology’s 5-year limited warranty.

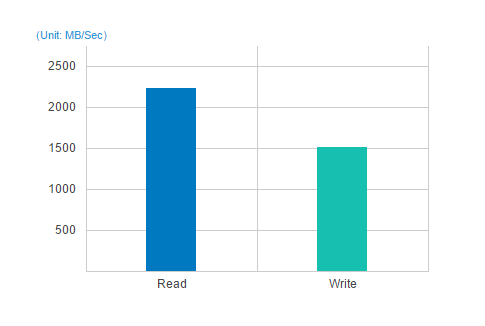

Premium performance

DS3615xs delivers up to 2,214.77 MB/s throughput in reading and 231,295 read IOPS1. DS3615xs is equipped with 4GB RAM and up to 32GB ECC RAM expansion support, so enterprises can guarantee data accuracy as well as superior performance.

Ultra-High Performance

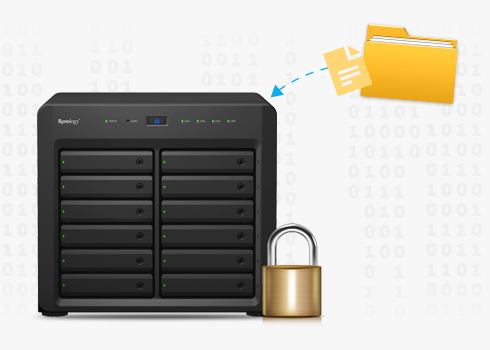

Hardware encryption engine enhances file transfer speeds

Encrypting data is essential to a healthy security policy. Equipped with a dedicated hardware encryption engine, DS3615xs is the ideal digital locker for sensitive data; files and folders are encrypted on the fly and transferred without significant performance loss. DS3615xs delivers encrypted data transmission speeds at 2,182.16MB/s.

Hardware encryption engine

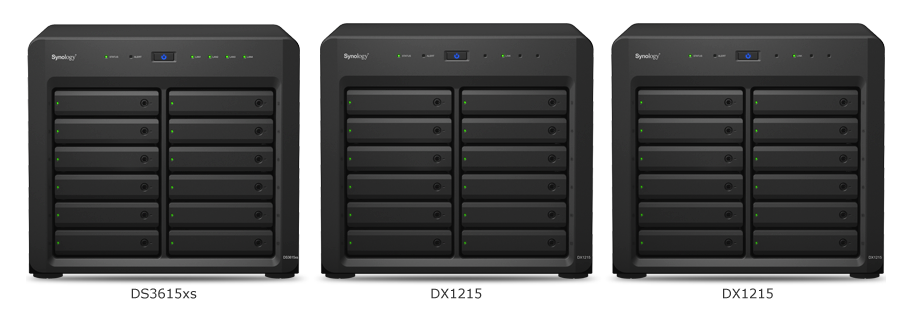

Robust scalability up to 36 drives

With 12 HDD trays and support for adding up to two Synology DX12152 expansion units, DS3615xs provides the ability to seamlessly expand up to 216TB3 of raw storage capacity and expand a single volume up to 108TB on the fly. When the storage capacity of DS3615xs nears it limit, expansion is easily accomplished as it supports up to 36 HDDs or SSDs. DS3615xs provides enterprises flexible capacity and balanced performance to meet the needs of varying applications and processes.

Robust Scalability

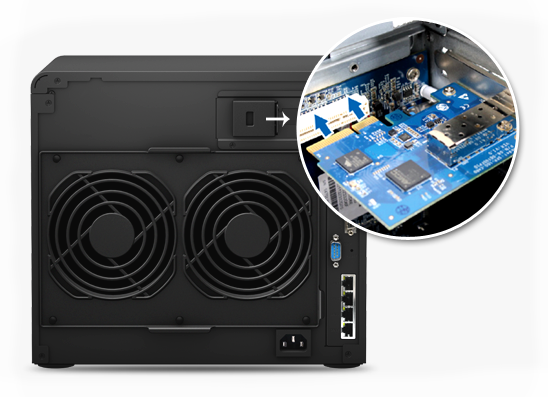

10GbE and SATA III 6Gb/s support

In addition to the default 4 Gigabit ports, DS3615xs comes with one PCI Express 3.0 x8 slot, allowing installation of 10GbE Network Interface Cards (NIC) for maximized bandwidth. Coming with native SATA III 6Gb/s support, DS3615xs ensures the optimum data process under heavy system loading.

10GbE and SATA 3 6Gb/s Support

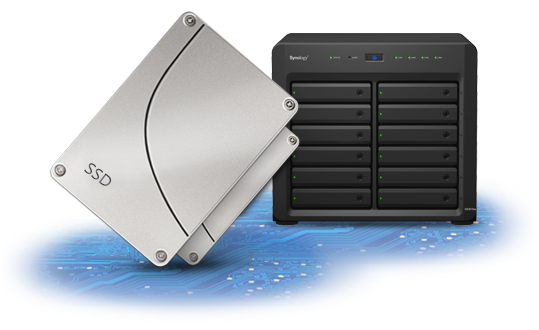

SSD cache technology

DS3615xs enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, DS3615xs offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.

SSD cache technology

5 Year Warranty

Synology DS3615xs is backed with Synology's 5-year limited warranty. With technical support and hardware replacement service, the five-year warranty maximizes your enterprises' return on investment. For the entire duration, you will enjoy technical support via e-mail and telephone.

5 Year Warranty

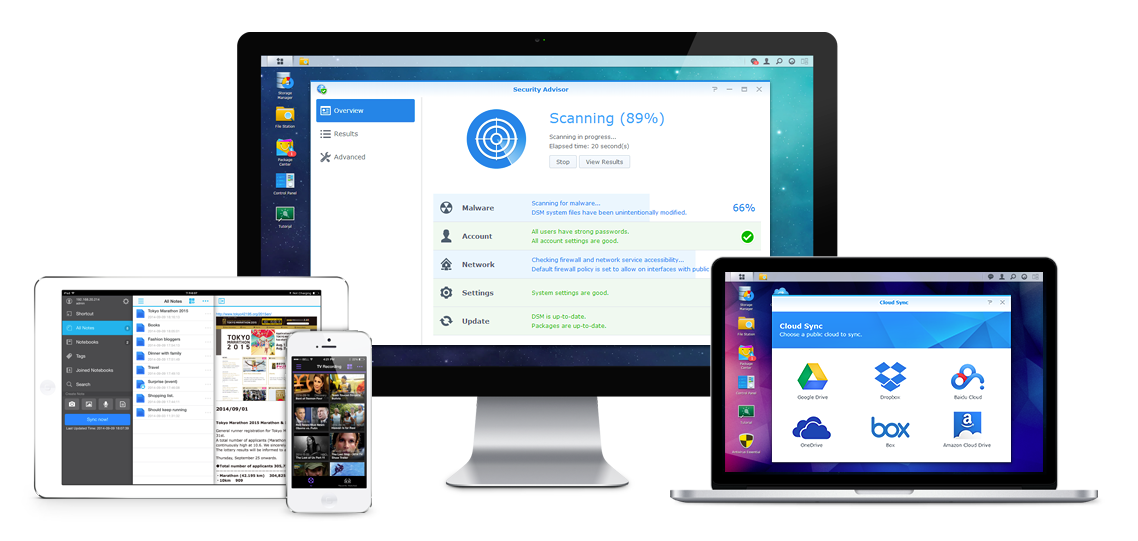

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Award winning OS

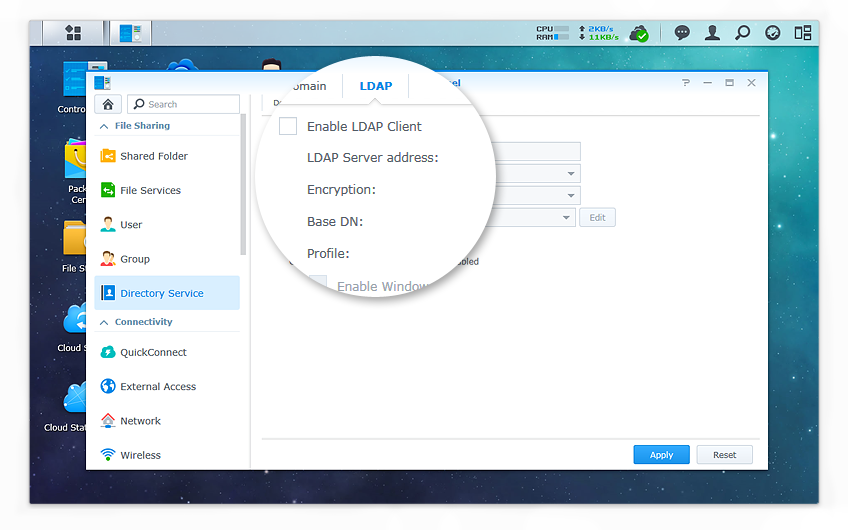

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, DS3615xs enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS3615xs allows IT administrators to fine tune access controls and set up privileges to files and folders on DS3615xs through the familiar Windows user interface. With compatibility for major protocols, DS3615xs can eliminate server configuration overhead and enhance IT administrators’ efficiency.

Fit into business environments easily

Seamless storage solution for virtualization environments

DS3615xs provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, DS3615xs helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Seamless storage solution

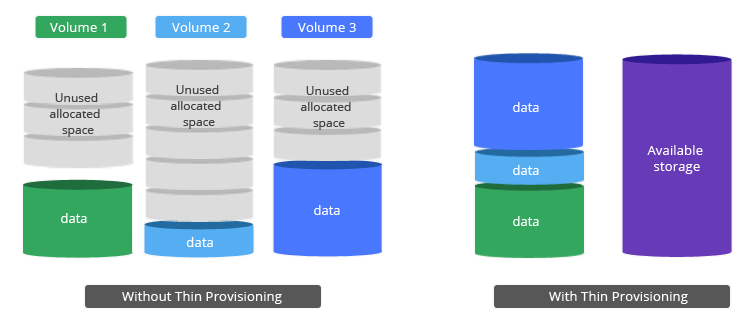

Unified storage system

DS3615xs enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). DS3615xs provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.

Unified Storage System

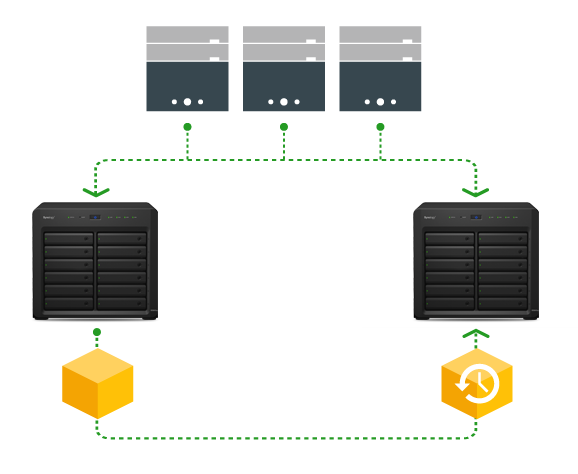

Protection by LUN backup, snapshot, and clone

DS3615xs enhances the ease of moving and copying data in a virtualized environment with the features - LUN Backup, LUN Snapshot, and LUN Clone. DS3615xs offers iSCSI LUN backup at storage level without extra charge. Synology LUN Clone and LUN Snapshot only take up 1/1000 of the original size which highly optimizes storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.

Protection

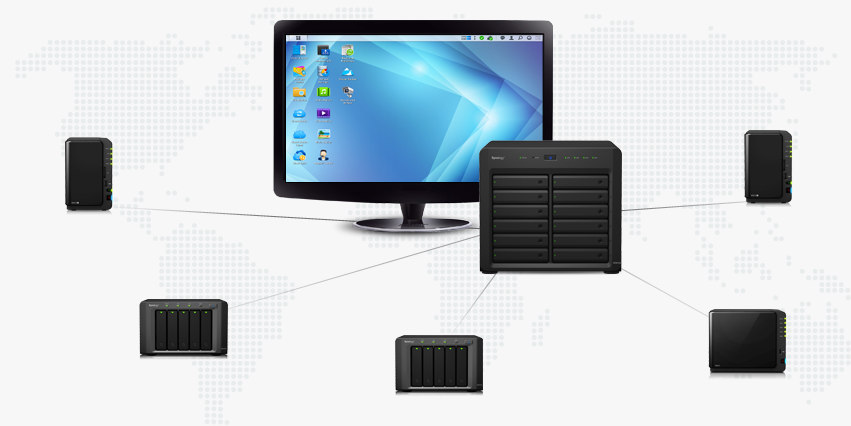

Synology CMS (Central Management System)

For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

Synology CMS

Increase business productivity with cloud solutions

With comprehensive cloud solutions, DS3615xs lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.

Increase Business Productivity with Cloud solutions

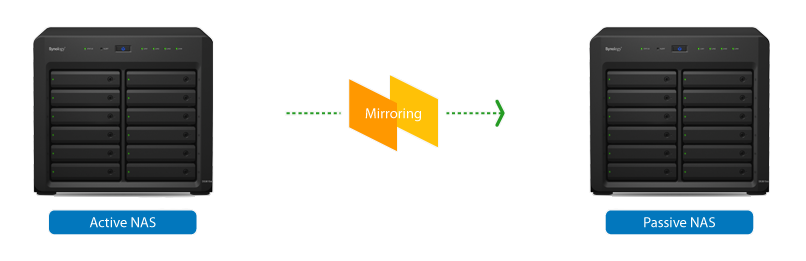

Ensuring business continuity & reliability

Uninterrupted availability is a critical goal for all businesses. DS3615xs offers Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. Shared Folder Sync can replicate data in real-time to another Synology NAS at a remote location, giving your business the Recovery Time Objective (RTO) for prompt disaster recovery. With multiple LAN ports, DS3615xs also ensures redundancy in the event of unexpected network failure.

Ensuring business continuity and reliability

Secure your data

DS3615xs offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS3615xs provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

Product Views:

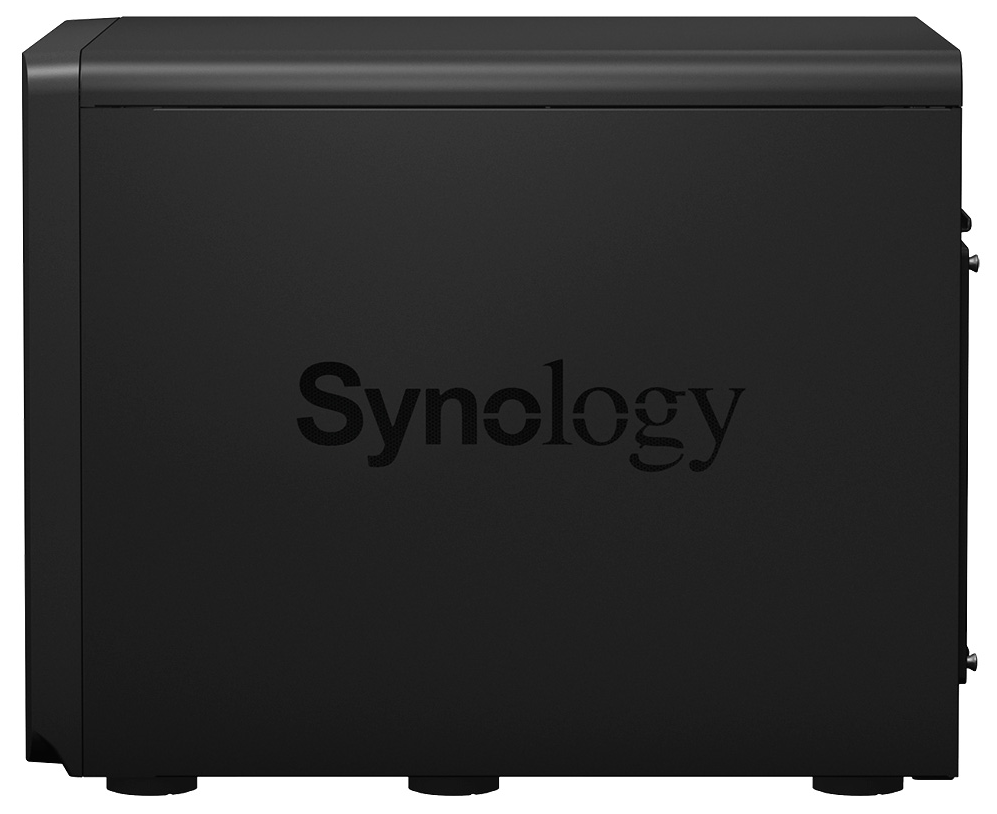

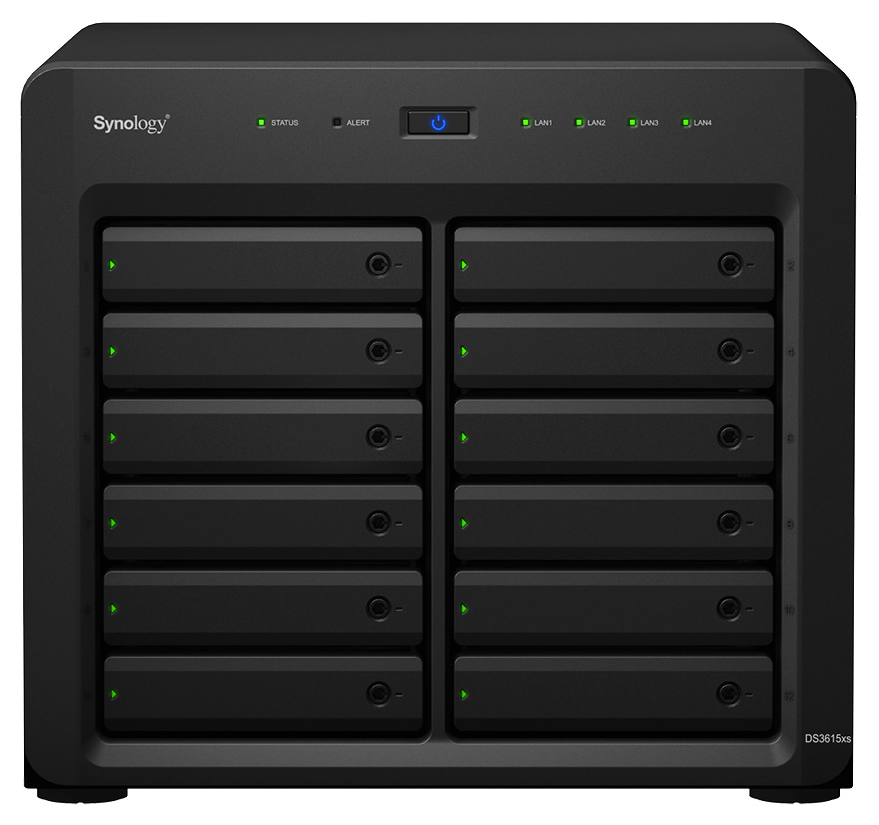

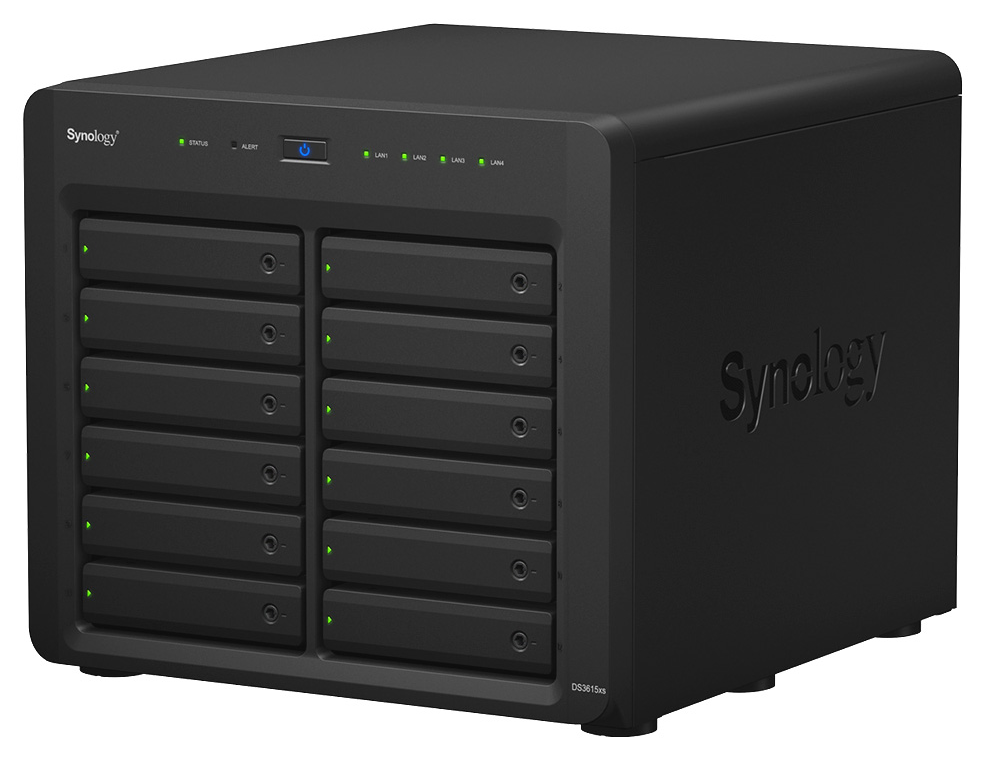

DS3615xs Front DS3615xs Left Angle DS3615xs Left Side

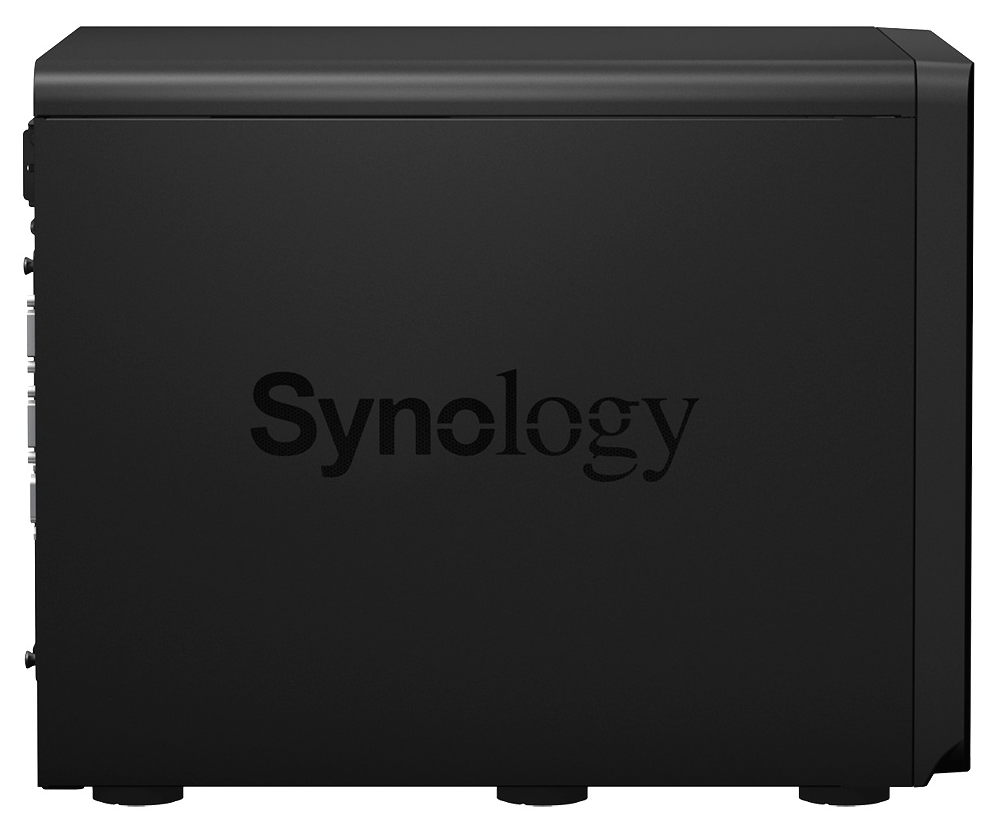

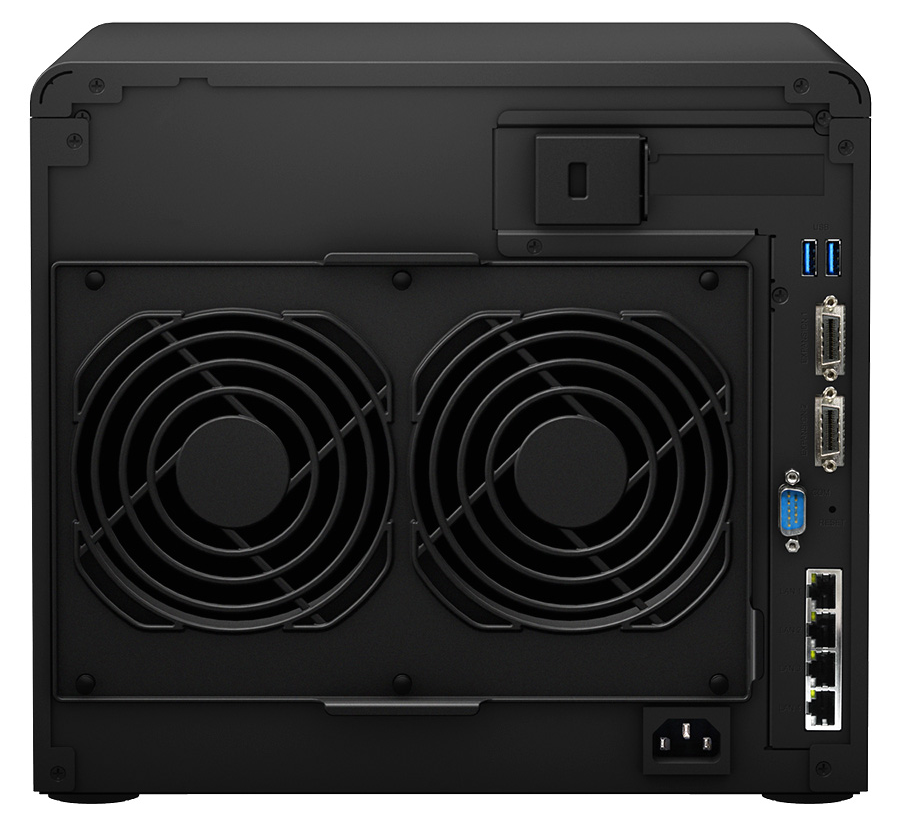

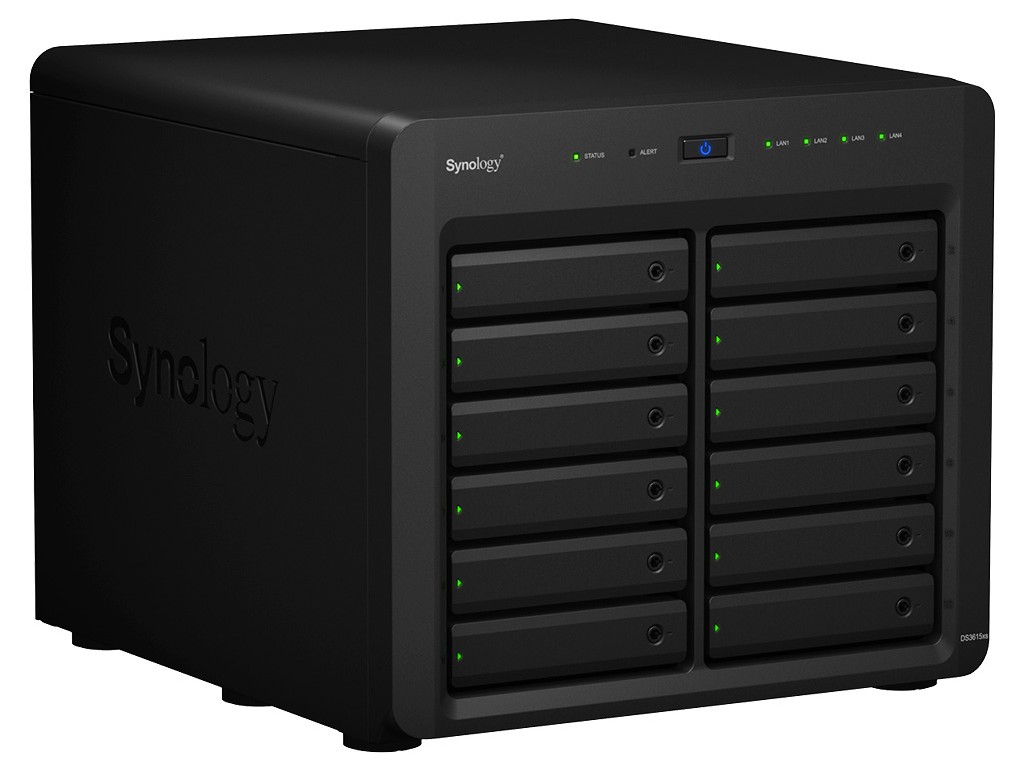

DS3615xs Rear DS3615xs Right Side DS3615xs Right Angle

Technical Specifications:

Technical Specifications:
Hardware Specifications
CPU Model Intel Core i3-4130
CPU Frequency Dual Core 3.4 GHz
System Memory 4 GB DDR3 ECC
Memory Module Pre-installed 2 GB X 2
Total Memory Slots 4
Memory Expandable up to 32 GB (8 GB X 4)
Drive Bay(s) 12
Maximum Drive Bays with Expansion Unit 36
Maximum Internal Raw Capacity 96 TB (8 TB HDD X 12) (Capacity may vary by RAID types)
USB 3.0 Port 2
Expansion Port 2
Size (Height X Width X Depth) 270 mm X 300 mm X 340 mm
Weight 9.8 kg
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
PCIe x8 Slot for 10GbE / 1GbE Network Card 1 (at x8 mode)
System Fan 120 mm X 120 mm X 2 pcs
Noise Level 27.4 dB(A)
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Consumption 88.48 W (Access)
43.54 W (HDD Hibernation)
Power Frequency 50/60 Hz, Single Phase
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Notes:
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 500GB ST9500325AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%
  • When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed.

Performance:

XS/XS+ series

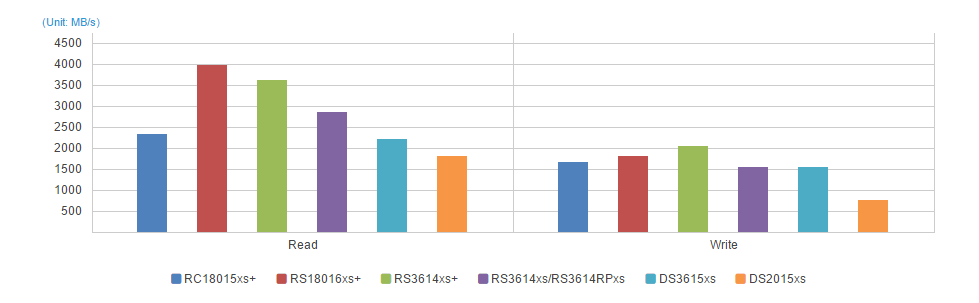

4 X 10GbE / 2 X 10GbE Environment - Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 2313.72 3944.56 3590.33 2843.16 2202.21 1792.07
Write 1645.56 1778.25 2016.95 1525.49 1534.69 745.07
Sequential Throughput 64KB

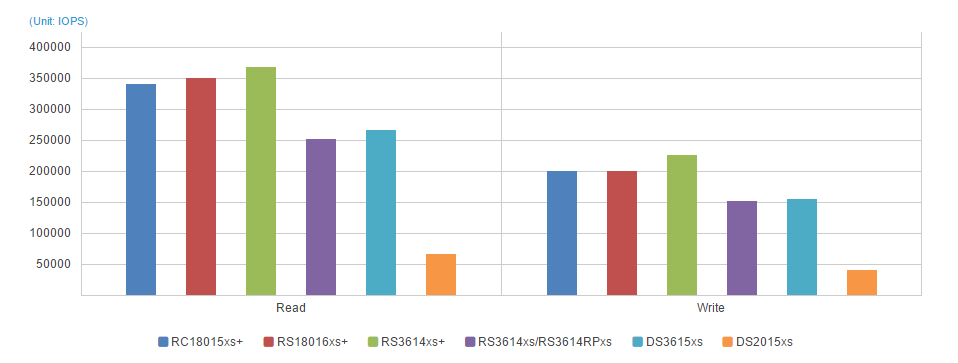

4 X 10GbE / 2 X 10GbE Environment - Sequential IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 338630.56 348265.28 366052.25 250242.11 265103.62 65259.46
Write 197711.20 198225.48 224120.00 149302.80 153637.08 38197.25

Sequential IOPS 4KB

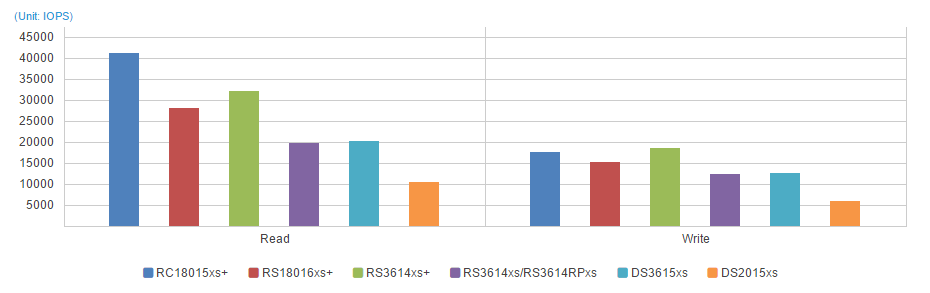

4 X 10GbE / 2 X 10GbE Environment - Random IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 40919.85 27867.65 31860.21 19616.87 19938.16 10162.59
Write 17288.74 15104.59 18417.90 12094.71 12372.17 5791.01

Random IOPS (4KB)

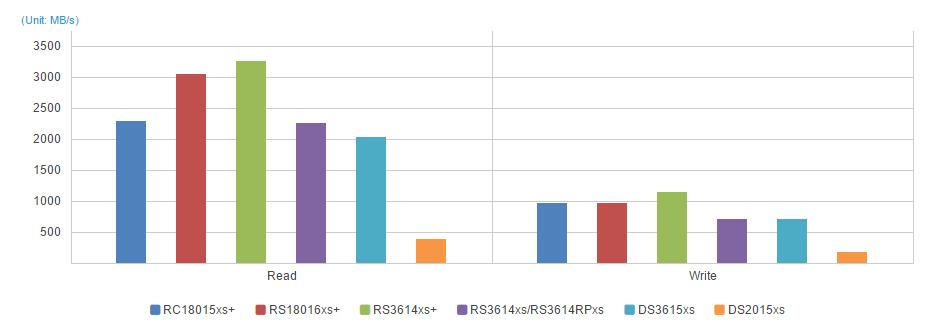

4 X 10GbE / 2 X 10GbE Environment - AES 256-bit Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 2269.33 3034.08 3239.89 2238.64 2017.74 376.06
Write 958.68 952.12 1130.64 696.68 697.64 162.99

AES 256-bit Sequential Throughput 64KB

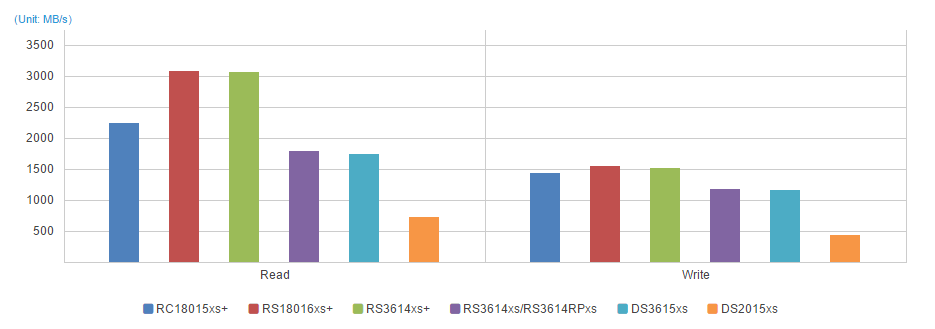

4 X 10GbE / 2 X 10GbE Environment - iSCSI Sequential Throughput (32KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 2219.11 3065.53 3040.66 1769.37 1728.95 712.40
Write 1422.67 1532.46 1502.84 1155.02 1140.87 425.48

iSCSI Sequential Throughput 32KB

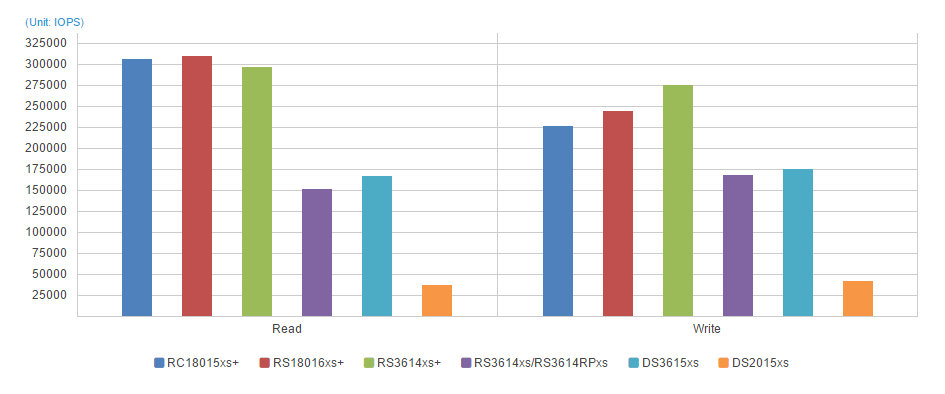

4 X 10GbE / 2 X 10GbE Environment - iSCSI Sequential IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 305332.53 308923.47 295083.88 150216.78 165435.94 35971.40
Write 225329.78 243041.31 273640.62 167247.95 173405.61 40102.97

iSCSI Sequential IOPS 4KB

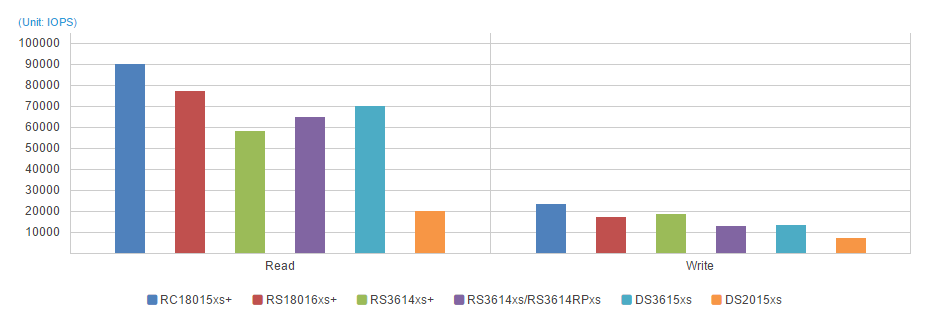

4 X 10GbE / 2 X 10GbE Environment - iSCSI Random IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 89292.61 76887.00 57485.06 64367.32 69361.46 19462.58
Write 22736.99 16864.89 18080.75 12410.54 12758.83 6455.10

iSCSI Random IOPS 4KB

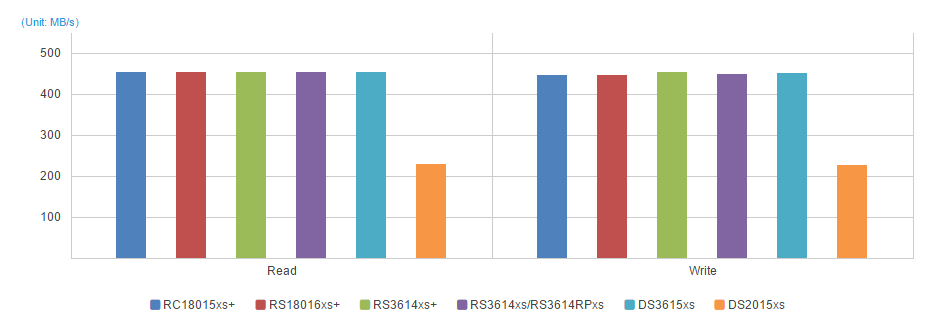

Gigabit Link Aggregation Environment - Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 451.85 451.86 451.83 451.60 451.57 226.00
Write 444.95 442.73 450.15 447.55 448.12 225.43

Gigabit Link Aggregation Environment 64KB

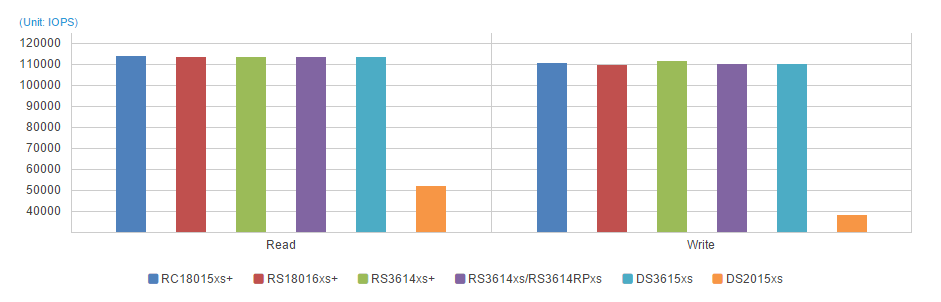

Gigabit Link Aggregation Environment - Sequential IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 113136.07 113076.58 113076.63 113023.71 113052.90 51356.19
Write 109909.01 109244.38 111115.98 109496.50 109565.95 37738.64

Gigabit Link Sequential IOPS 4KB

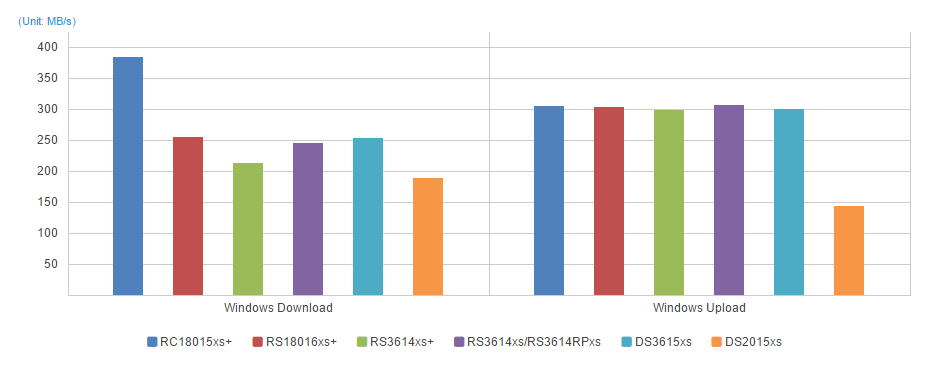

Gigabit Link Aggregation Environment - Windows Upload/Download (1MB x 5000 files)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Windows Download 382.55 252.84 211.97 243.29 251.56 187.04
Windows Upload 303.83 301.33 296.31 305.56 298.60 141.79

Gigabit Link Windows upload/download

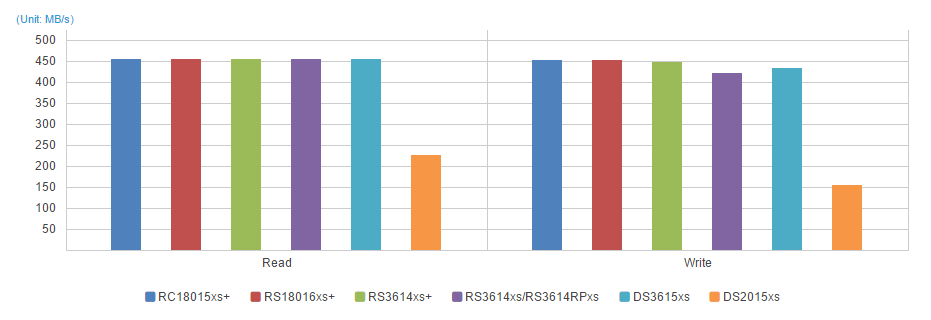

Gigabit Link Aggregation Environment - AES 256-bit Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 451.48 451.85 451.86 451.66 451.59 223.26
Write 450.90 450.51 444.26 420.03 431.10 153.34

Gigabit Link Aggregation Environment - AES 256-bit Sequential Throughput (64KB)

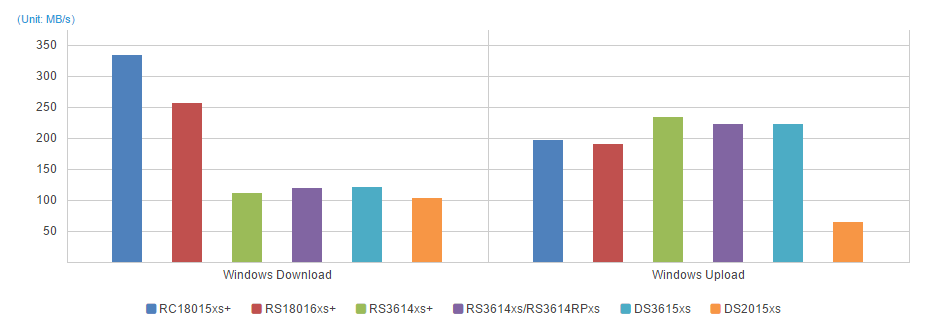

Gigabit Link Aggregation Environment - AES 256-bit File Upload/Download in Windows (1MB x 5000 files)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Windows Download 331.86 255.49 109.94 117.65 120.16 101.04
Windows Upload 194.95 189.07 232.04 220.43 221.52 63.37

iSCSI Sequential IOPS 4KB

Documentation:

Download the Synology DiskStation DS3615xs Datasheet  (PDF).
