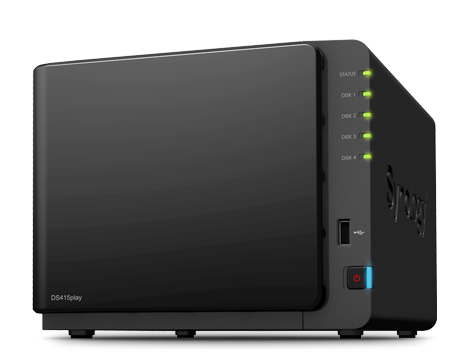

Synology DiskStation DS415play
Embrace the Ultimate Media Center with High Capacity

Synology DiskStation DS415play dlna

Sorry, this product is no longer available. Please contact us for more information.

Overview:

Optimized for multimedia processing, DS415play features 1080p Full HD video transcoding, delivering on-demand Full HD transcoding to guarantee seamless streaming experiences.

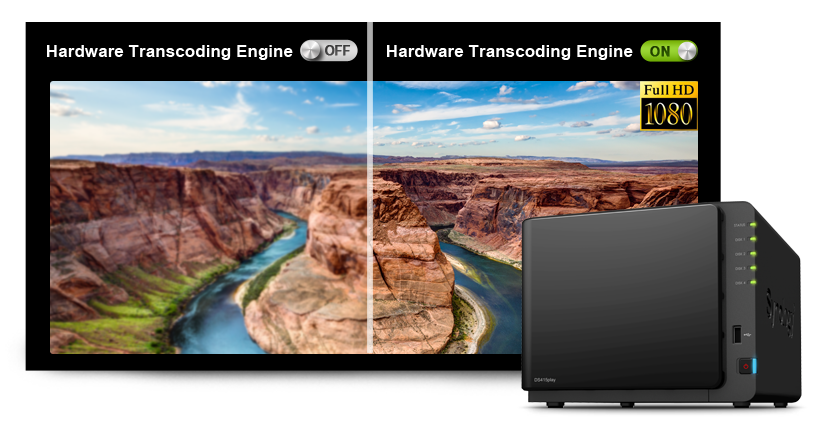

1080p Full HD video transcoding

Powered by a hardware accelerated transcoding engine, DS415play features 1080p Full HD video transcoding on the fly, effortlessly sharing videos with your smart TV, network media player, mobile devices, and PC. DS415play also supports multi-channel streaming, letting family members enjoy movies in different rooms.

1080p Full HD Video Transcoding

Dual core CPU with floating-point unit enhances media processing

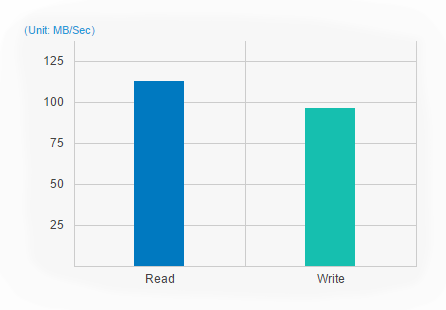

DS415play comes with dual core CPU and 1GB RAM, delivering an average 112.35 MB/sec reading and 98.58 MB/sec writing speed under RAID 5 configuration in a Windows® environment.1 The built-in floating-point unit not only enhances the overall capability of the main CPU, but is particularly advantageous in speeding up thumbnail creation when uploading large amounts of photos or videos.

Dual-core CPU with floating point

Support for up-to-date storage interfaces

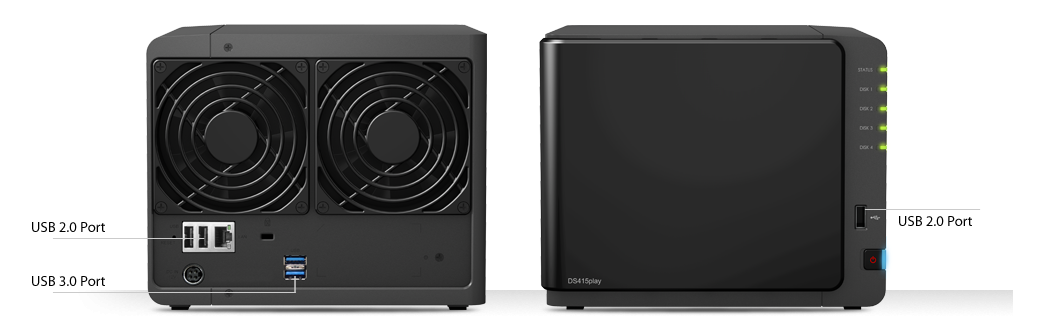

DS415play comes with the external interfaces you need - up to three USB 2.0 ports to power multiple peripheral devices concurrently, and another two USB 3.0 ports for high speed external storage exchange.

Support for up-to-date storage interfaces

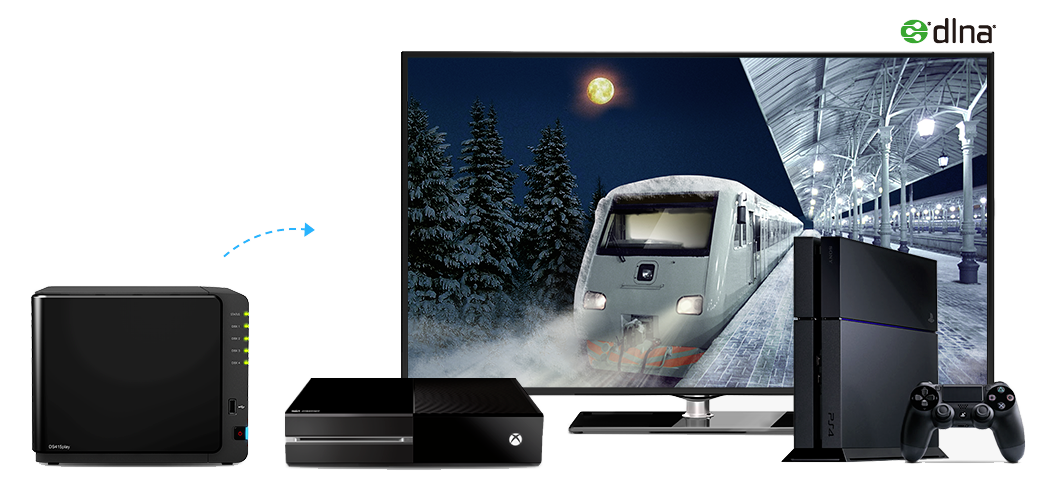

DLNA Certified® media server

As a DLNA Certified® DMS (Digital Media Server), DS415play can serve as your primary media server, with the capability to host digital multimedia content for local or remote playback. Once connected to a router, DS415play streams music, photos, and videos to DLNA-compliant devices, such as DLNA TVs or gaming consoles without any pre-configuration. You can even browse and select content on DS415play using DS audio and designate a DLNA player within the same local network to play it.

DLNA Certified Media Server

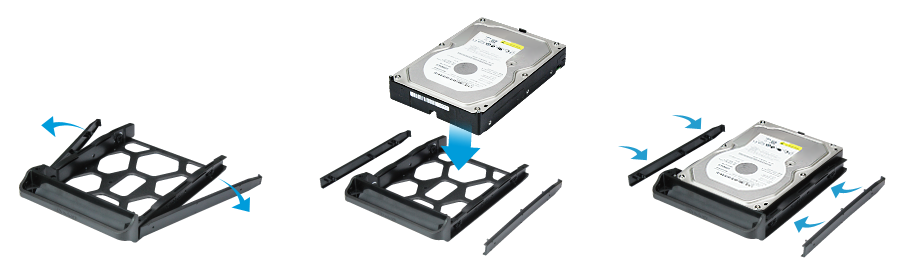

Easy hard drive installation

Designed with both safety and convenience in mind, DS415play contains tool-less hard drive trays, allowing you to install 3.5" hard drives without a screw driver. Meanwhile, DS415play supports hot-swappable hard drive trays for instant and risk-free hard disk replacement.

Easy hard drive installation

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Award winning OS - DiskStation Manager

Ultimate file center

File Station is a fast and secure feature for sharing and managing your files stored on DS415play. Just drag-n-drop and upload data from Mac or PC. Advanced filters make it easy to search for documents, photos, or videos. With built-in FTP or email clients, DS415play lets you organize and share files through an advanced web application effortlessly. You can even share files and folders with others by simply sending a link. Files can be reached on mobile devices via the companion mobile app DS file. HTTPS, SSL/TLS encryption, and link expiry dates also ensure file sharing over the Internet is highly secure.

Ultimate file center

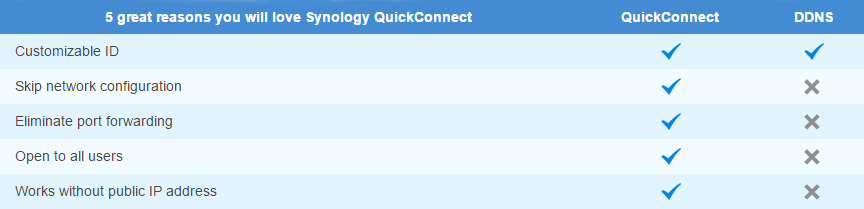

Connect your data quickly and easily

Synology aims to provide you the most convenient way to enjoy all services on DS415play. With Synology QuickConnect, you don't have to deal with difficult DDNS setup. QuickConnect frees you from complicated router configuration and port-forwarding, so your entertainment and work files can be accessed on any computer, laptop, or mobile devices instantly without extra charge.

Connect your data quickly and easily

Effective backup solution

Synology DS415play can serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to Synology NAS using Cloud Station. Whenever you modify a file, the changes are backed up to DS415play automatically. Mac users also enjoy native Apple® Time Machine support. You can also back up data from your DS415play to another DiskStation, rsync servers, external drives, or even Amazon® S3, Glacier cloud service, Microsoft Azure, SFR, and hicloud. "Backup & Replication" allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions.

Effective backup solution

Your files anywhere with cloud service

DS415play brings you comprehensive cloud service. Cloud Station lets you sync files among DiskStations and multiple devices, including Windows PC, Mac, Linux, iOS, Android, as well as Windows mobile devices, whereas 2-way sync allows file synchronization among different DiskStations. You can even sync your DiskStation with Google Drive, OneDrive, Dropbox, Box, hubiC, and Baidu Cloud — establish your hybrid cloud to enjoy more storage flexibility and prevent data loss.

Your files anywhere with cloud service

The most compatible sharing

Enjoy seamless files sharing across Windows®, Mac®, and Linux® platforms as DS415play offers comprehensive network protocol support including FTP, SMB2, AFP, NFS and WebDAV. With Windows AD and LDAP integration, DS415play can fit effortlessly into any existing network environment - there is no need for IT administrators to maintain two sets of credentials. You also won't worry about missing files with the Recycle Bin feature which is supported on AFP, CIFS, File Station, and WebDAV. All files deleted in a shared folder will be automatically moved into the Recycle Bin.

Compatible sharing

Get mobility with our apps

Synology develops versatile mobile apps — DS note, DS audio, DS video, DS photo+, DS cloud, DS file, DS download and DS cam — allowing you to access and manage the contents of your DS415play with smartphones and tablets. QuickConnect brings an easier network experience as it eliminates complicated router configuration or port forwarding. With Synology mobile apps, your multimedia collection and work files are always on the go.

app mobility

Eco-friendly NAS server

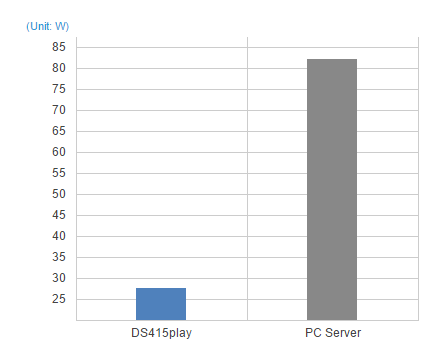

All Synology NAS is designed with energy efficiency in mind. DS415play only consumes 16.84W in HDD Hibernation and 27.33W in access*. With special fan and the smart airflow design, the DS415play keeps the system running cool 24/7, while its noise dampening design makes it quieter than PC counterparts. Synology acknowledges the responsibility as a global citizen, so all Synology products are produced with RoHS compliant parts and packed with recyclable packing materials.

* The power consumption figures may vary on different environments.

Eco-friendly NAS server

Product Views:

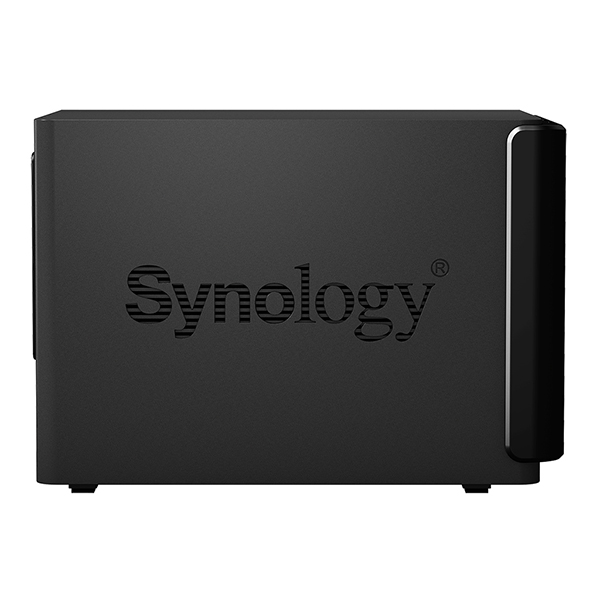

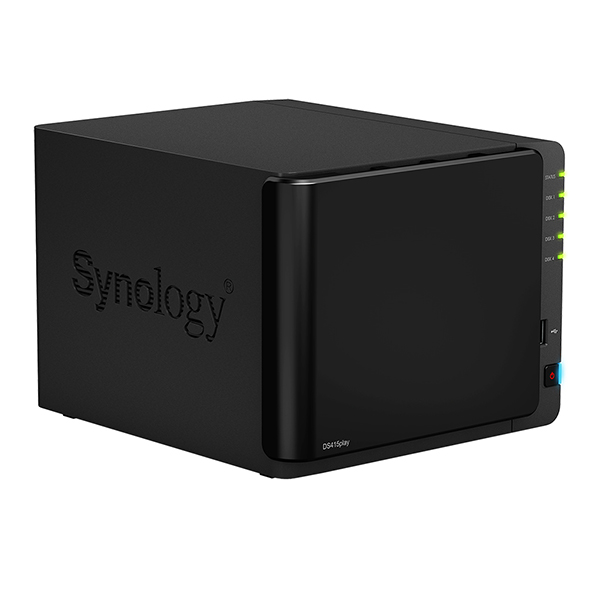

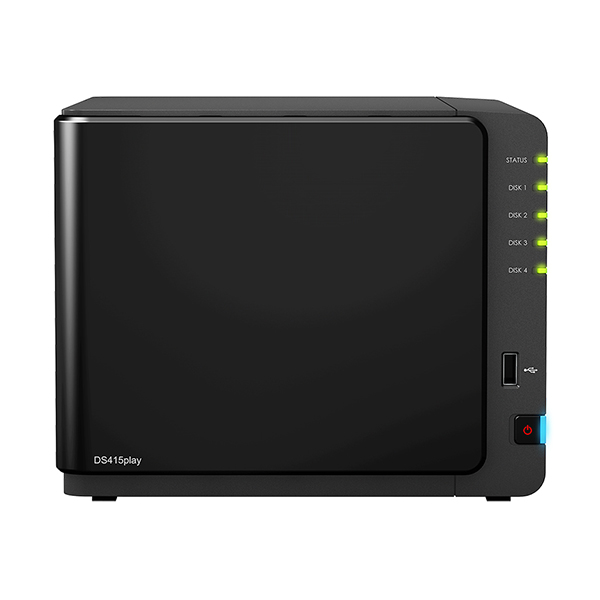

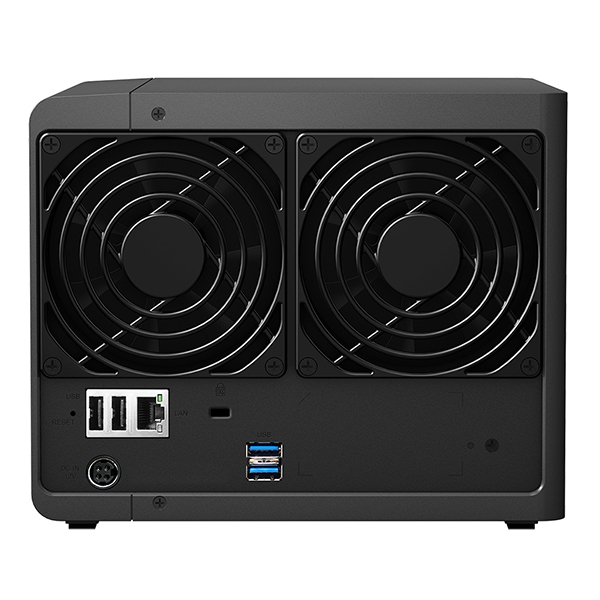

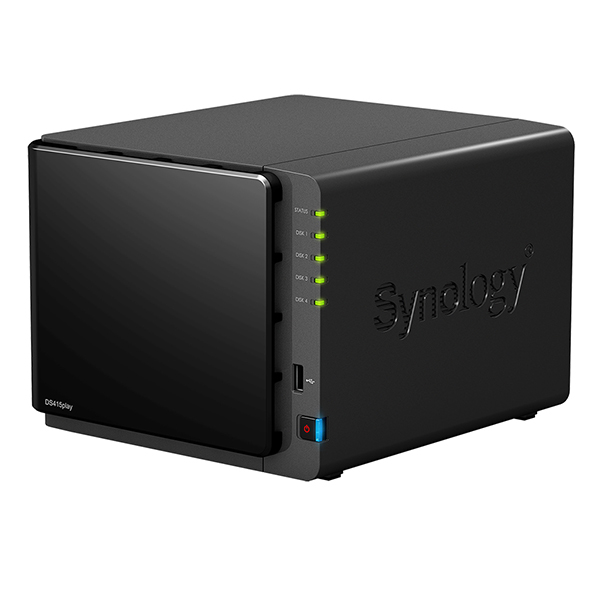

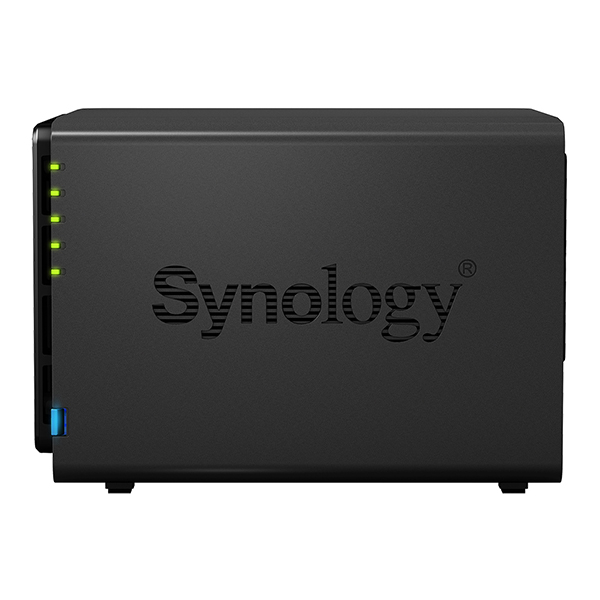

Synology DS415play (1 of 6) Synology DS415play (2 of 6) Synology DS415play (3 of 6)
Synology DS415play (4 of 6) Synology DS415play (5 of 6) Synology DS415play (6 of 6)

Technical Specifications:

Technical Specifications:
Hardware Specifications
CPU Model Intel Atom CE5335
CPU Frequency Dual Core 1.6 GHz
System Memory 1 GB DDR3
Drive Bays 4
Maximum Internal Raw Capacity 32 TB (8 TB HDD X 4) (Capacity may vary by RAID types)
USB 3.0 Port 2
Size (Height X Width X Depth) 165 mm X 203 mm X 233.2 mm
Weight 2.03 kg
RJ-45 1GbE LAN Port 1 (with Link Aggregation / Failover support)
System Fan 92 mm X 92 mm X 2 pcs
Noise Level 20.0 dB(A)
Power Supply Unit / Adapter 90W
AC Input Power Voltage 100V to 240V AC
Power Consumption 27.33 W (Access)
16.84 W (HDD Hibernation)
Power Frequency 50/60 Hz, Single Phase
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 2 Years
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Notes:
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Support for Wake on WAN needs switch and routers which recognize Magic Packet.
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Performance:

4-bay NAS

Gigabit Link Aggregation Environment - Sequential Throughput (64KB)

Model RS815(RP)+ RS815 DS415+ DS414 DS414slim
Read 359.11 216.95 225.94 217.76 123.35
Write 347.71 120.36 222.79 119.46 50.64
Sequential Throughput 64KB

Gigabit Link Aggregation Environment - Sequential IOPS (4KB)

Model RS815(RP)+ RS815 DS415+ DS414 DS414slim
Read 70172.15 15339.78 55911.80 15331.41 5315.40
Write 49363.98 10894.80 49210.88 10923.92 3639.61

Sequential IOPS 4KB


Gigabit Link Aggregation Environment - Windows Upload/Download (1MB x 5000 files)

Model RS815(RP)+ RS815 DS415+ DS414 DS414slim
Windows Download 151.52 130.04 153.93 166.29 92.46
Windows Upload 250.97 92.03 139.43 91.98 35.31

Windows upload/download 1MB x 5000


Gigabit Link Aggregation Environment - AES 256-bit Sequential Throughput (64KB)

Model RS815(RP)+ RS815 DS415+ DS414 DS414slim
Read 360.23 79.03 225.92 78.96 32.66
Write 217.83 32.43 216.70 32.45 12.80

AES 256-bit Sequential Throughput 64KB


Gigabit Link Aggregation Environment - AES 256-bit File Upload/Download in Windows (1MB x 5000 files)

Model RS815(RP)+ RS815 DS415+ DS414 DS414slim
Windows Download 75.64 51.04 65.31 50.70 28.26
Windows Upload 103.27 27.74 90.98 27.72 12.01

AES 256-bit windows upload/download


Gigabit Ethernet Environment - Windows Upload/Download (5GB file)

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
Windows Download 112.22 112.22 112.16 112.13 112.36 110.47 110.84
Windows Upload 111.95 108.96 111.91 95.45 108.58 73.69 52.89

Windows upload/download 5GB


Gigabit Ethernet Environment - Windows Upload/Download (1MB x 5000 files)

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
Windows Download 80.60 72.59 85.40 63.52 73.64 56.87 57.25
Windows Upload 50.08 45.14 52.35 41.56 45.40 35.26 29.77

Gigabit Ethernet Environment windows upload/download


Gigabit Ethernet Environment - AES 256-bit File Upload/Download in Windows (5GB file)

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
Windows Download 111.37 39.98 112.36 17.40 39.75 31.60 29.94
Windows Upload 93.19 21.95 94.58 13.18 22.02 9.50 14.42

AES 256-bit File Upload/Download in Windows (5GB file)


Gigabit Ethernet Environment - AES 256-bit File Upload/Download in Windows (1MB x 5000 files)

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
Windows Download 71.68 32.12 74.92 15.33 32.14 25.57 24.95
Windows Upload 35.42 12.67 37.21 9.42 12.66 7.24 9.21

AES 256-bit File Upload/Download in Windows


Gigabit Ethernet Environment - Web Server Response Time

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
Seconds 84.08 393.47 83.88 280.05 385.83 578.02 1086.71

Web Server Response Time


Mac Test Environment - AFP Upload/Download (5GB file)

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
AFP Download 91.14 86.94 90.11 87.84 87.34 81.58 84.59
AFP Upload 92.71 90.30 92.65 82.48 90.27 49.42 51.41

Mac Test Environment AFP upload/download 5GB


Mac Test Environment - AFP Upload/Download (1MB x 5000 files)

Model RS815(RP)+ RS815 DS415+ DS415play DS414 DS414j DS414slim
AFP Download 48.51 44.24 49.19 43.83 43.52 38.72 52.85
AFP Upload 52.42 41.21 49.51 35.38 41.25 28.57 29.26

Mac Test Performance AFP Upload/Download (1MB x 5000 files)

Documentation:

Download the Synology DiskStation DS415play Data Sheet (PDF).
