RackStation RC18015xs+
Uncompromising reliability, unyielding data protection

Synology RackStation RC18015xs+

Synology Products RC18015xs+
Synology RackStation
RC18015xs+ Synology RackStation Controller
#RC18015xs+
Our Price: $4,391.00

Click here to jump to more pricing!

Overview:

Featuring a high-availability design, next-generation snapshot technology, and massive scalability up to 180 drives, RC18015xs+ and RXD1215sas deliver the secure, reliable, and superior performance storage solution for enterprises seeking business continuity and point-in-time data recovery.

High-availability cluster design

RC18015xs+ and RXD1215sas are specifically designed to work together as a high-availability cluster — requiring two RC18015xs+ and at least one RXD1215sas expansion unit. By combining the two computing servers and multiple storage units into a single high-availability cluster, RC18015xs+ and RXD1215sas deliver unyielding reliability and data availability. With the active/passive structure, services are automatically switched over to one server if the other unexpectedly goes offline, helping your business avoid costly downtime.

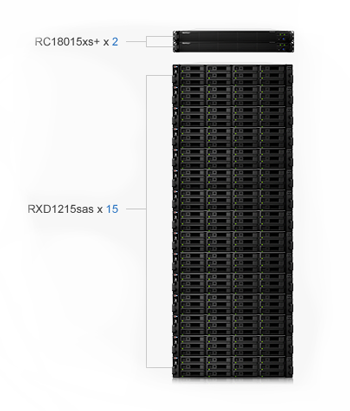

Massive scalability up to 180 drives

Up to fifteen RXD1215sas can be connected to the dual RC18015xs+ computing nodes2, accommodating massive scalability up to 180 drives and maximum raw storage beyond 1PB3. The shared storage architecture eliminates the need for data replication over the network, in addition to drastically reducing deployment costs.

Massive Scalability

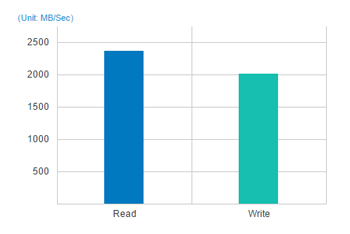

Blazing fast performance and throughput

RC18015xs+ delivers superior performance of over 2,270 MB/s throughput and 355,400 IOPS when using dual 10GbE connections bonded with Link Aggregation4. Equipped with 8GB ECC RAM (upgradeable up to 32GB), the RC18015xs+ ensures enterprise-level data accuracy and speed for your mission critical tasks.

Blazing fast Performance

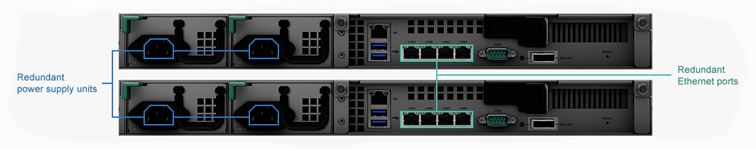

Hardware redundancy enhances system uptime

In addition to the active/passive architecture, RC18015xs+ is equipped with redundant hardware components, such as power supply units, internal system fans, and LAN ports. In the event of component failure, the system continues operating normally while replacement parts are obtained and installed.

Hardware Redundancy

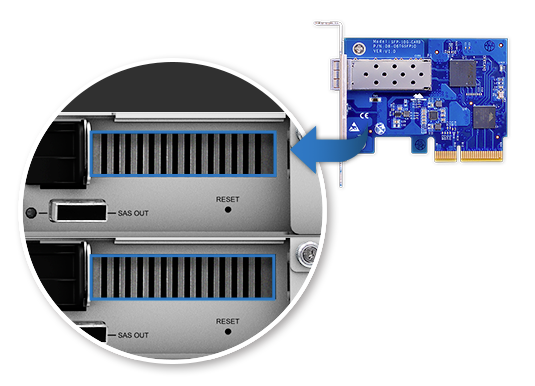

Ready for the 10GbE generation

In addition to the default four Gigabit Ethernet ports (plus one dedicated port for the Heartbeat), RC18015xs+ comes with one PCI Express 3.0 x8 slot (running at x8 mode), accommodating installation of one 10GbE network interface card (NIC) for maximized bandwidth.

Ready for the 10GbE Generation

5 Year Warranty

Synology RC18015xs+ is backed with Synology's 5-year limited warranty. With technical support and hardware replacement service, the five-year warranty maximizes your enterprises' return on investment. For the entire duration, you will enjoy technical support via e-mail and telephone.

5 Year Warranty

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Award winning OS

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, RC18015xs+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on RC18015xs+ allows IT administrators to fine tune access controls and set up privileges to files and folders on RC18015xs+ through the familiar Windows user interface. With compatibility for major protocols, RC18015xs+ can eliminate server configuration overhead and enhance IT administrators’ efficiency.

Fit into business environments easily

Seamless storage solution for virtualization environments

RC18015xs+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, RC18015xs+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Seamless storage solution

Unified storage system

RC18015xs+ enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). RC18015xs+ provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.

Unified Storage System

Protection by LUN backup, snapshot, and clone

RC18015xs+ enhances the ease of moving and copying data in a virtualized environment with the features - LUN Backup, LUN Snapshot, and LUN Clone. RC18015xs+ offers iSCSI LUN backup at storage level without extra charge. Synology LUN Clone and LUN Snapshot only take up 1/1000 of the original size which highly optimizes storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.

Protection

Synology CMS (Central Management System)

For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

Synology CMS

Increase business productivity with cloud solutions

With comprehensive cloud solutions, RC18015xs+ lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.

Increase Business Productivity with Cloud solutions

Ensuring business continuity & reliability

Uninterrupted availability is a critical goal for all businesses. RC18015xs+ offers Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. Shared Folder Sync can replicate data in real-time to another Synology NAS at a remote location, giving your business the Recovery Time Objective (RTO) for prompt disaster recovery. With multiple LAN ports, RC18015xs+ also ensures redundancy in the event of unexpected network failure.

Ensuring business continuity and reliability

Secure your data

RC18015xs+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RC18015xs+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

Product Views:

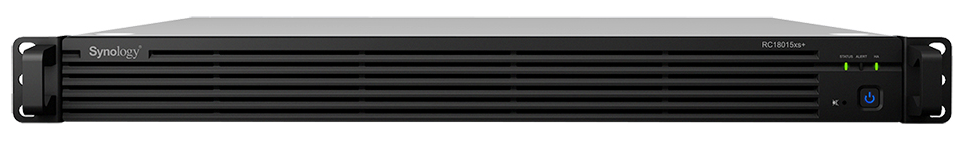

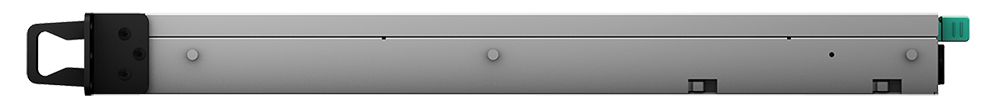

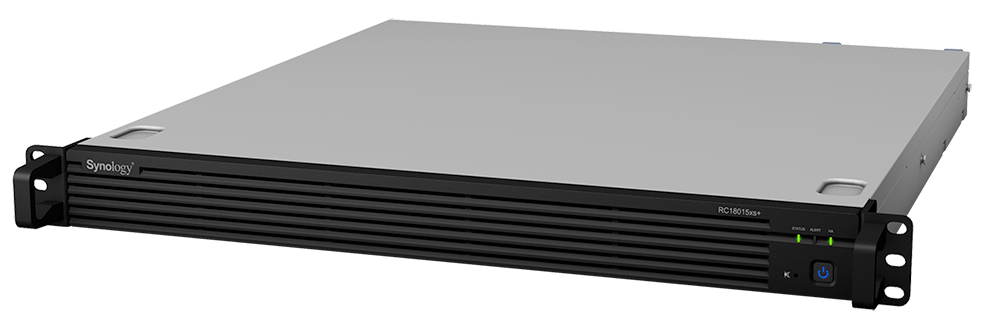

RC18015xs Plus Front View RC18015xs+ Left Angle RC18015xs+ Left Side

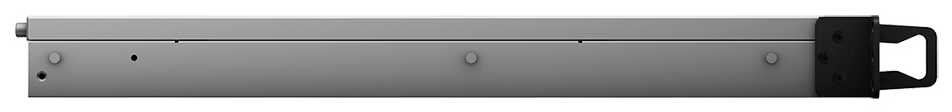

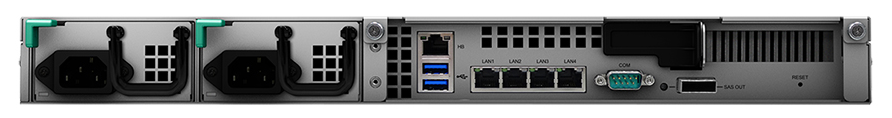

RC18015xs+ Rear RC18015xs+ Right Side RC18015xs+ Right Angle

Technical Specifications:

Technical Specifications:
Hardware Specifications
CPU Model Intel Xeon E3-1230 v2
CPU Frequency Quad Core 3.3 GHz
System Memory 8 GB DDR3 ECC
Memory Module Pre-installed 4 GB X 2
Total Memory Slots 4
Memory Expandable up to 32 GB (8 GB X 4)
Maximum Drive Bays with Expansion Unit 180
Maximum Internal Raw Capacity 1440 TB (8 TB HDD X 180) (Capacity may vary by RAID types)
USB 3.0 Port 2
Expansion Port 1
Size (Height X Width X Depth) 44 mm X 430 mm X 480 mm
Weight 7.3 kg
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support) + 1 for Heartbeat
PCIe x8 Slot for 10GbE / 1GbE Network Card 1 (at x8 mode)
System Fan 40 mm X 40 mm X 6 pcs
Noise Level 48 dB(A)
Power Supply Unit / Adapter 2 X 150W
AC Input Power Voltage 100V to 240V AC
Power Consumption 60.16 W (Access)
Power Frequency 50/60 Hz, Single Phase
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Notes:
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 500GB ST9500325AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%
  • SFP+ Cable Support: SFP+ 10GbE Direct Attach Twinax Cables with Connectivity up to 2 Meters.

Performance:

XS/XS+ series

4 X 10GbE / 2 X 10GbE Environment - Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 2313.72 3944.56 3590.33 2843.16 2202.21 1792.07
Write 1645.56 1778.25 2016.95 1525.49 1534.69 745.07
Sequential Throughput 64KB

4 X 10GbE / 2 X 10GbE Environment - Sequential IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 338630.56 348265.28 366052.25 250242.11 265103.62 65259.46
Write 197711.20 198225.48 224120.00 149302.80 153637.08 38197.25

Sequential IOPS 4KB


4 X 10GbE / 2 X 10GbE Environment - Random IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 40919.85 27867.65 31860.21 19616.87 19938.16 10162.59
Write 17288.74 15104.59 18417.90 12094.71 12372.17 5791.01

Random IOPS (4KB)

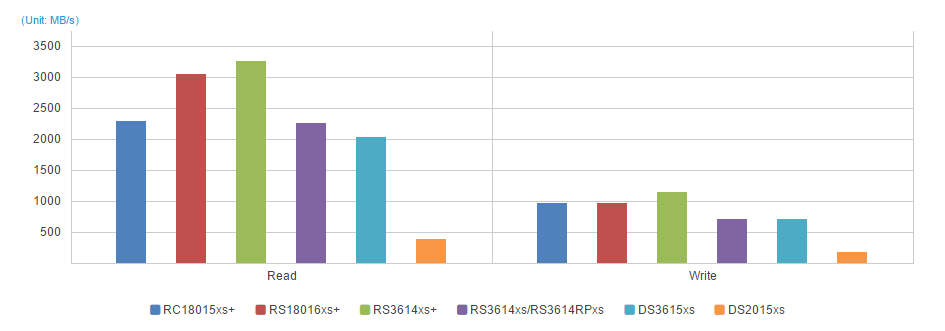

4 X 10GbE / 2 X 10GbE Environment - AES 256-bit Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 2269.33 3034.08 3239.89 2238.64 2017.74 376.06
Write 958.68 952.12 1130.64 696.68 697.64 162.99

AES 256-bit Sequential Throughput 64KB


4 X 10GbE / 2 X 10GbE Environment - iSCSI Sequential Throughput (32KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 2219.11 3065.53 3040.66 1769.37 1728.95 712.40
Write 1422.67 1532.46 1502.84 1155.02 1140.87 425.48

iSCSI Sequential Throughput 32KB

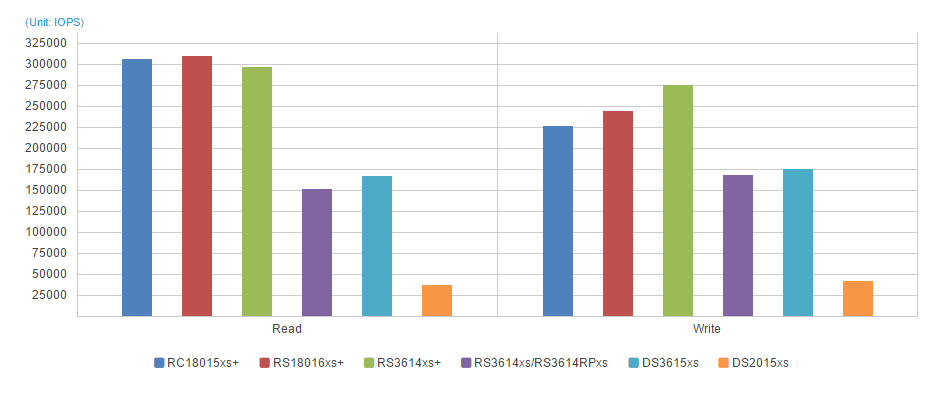

4 X 10GbE / 2 X 10GbE Environment - iSCSI Sequential IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 305332.53 308923.47 295083.88 150216.78 165435.94 35971.40
Write 225329.78 243041.31 273640.62 167247.95 173405.61 40102.97

iSCSI Sequential IOPS 4KB


4 X 10GbE / 2 X 10GbE Environment - iSCSI Random IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 89292.61 76887.00 57485.06 64367.32 69361.46 19462.58
Write 22736.99 16864.89 18080.75 12410.54 12758.83 6455.10

iSCSI Random IOPS 4KB

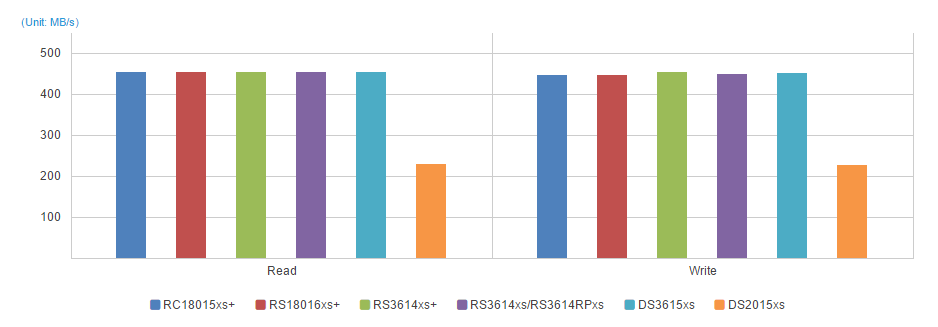

Gigabit Link Aggregation Environment - Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 451.85 451.86 451.83 451.60 451.57 226.00
Write 444.95 442.73 450.15 447.55 448.12 225.43

Gigabit Link Aggregation Environment 64KB


Gigabit Link Aggregation Environment - Sequential IOPS (4KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 113136.07 113076.58 113076.63 113023.71 113052.90 51356.19
Write 109909.01 109244.38 111115.98 109496.50 109565.95 37738.64

Gigabit Link Sequential IOPS 4KB

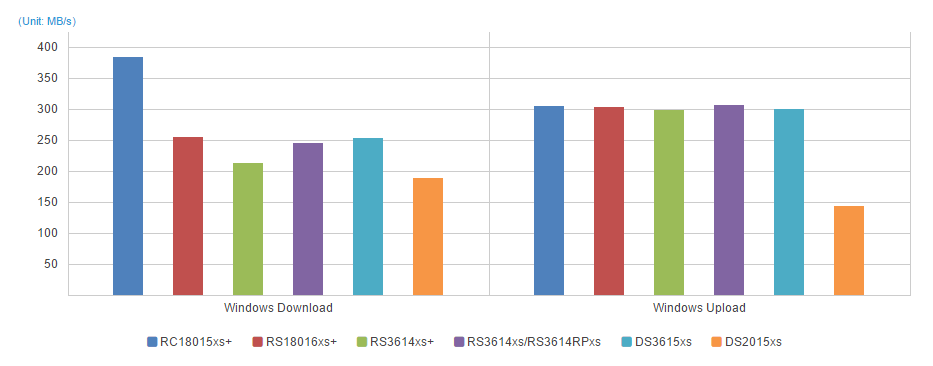

Gigabit Link Aggregation Environment - Windows Upload/Download (1MB x 5000 files)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Windows Download 382.55 252.84 211.97 243.29 251.56 187.04
Windows Upload 303.83 301.33 296.31 305.56 298.60 141.79

Gigabit Link Windows upload/download

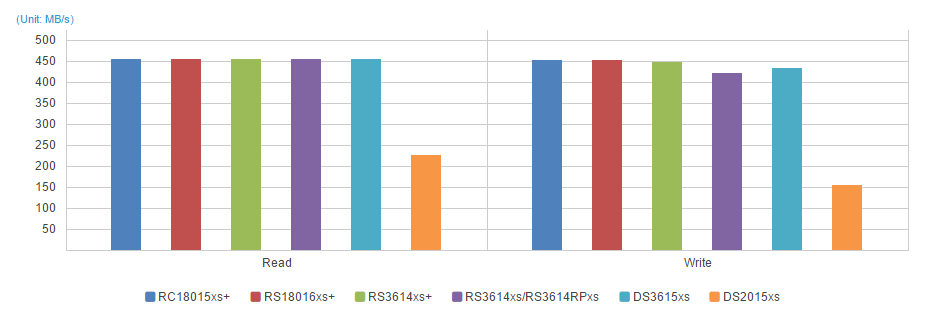

Gigabit Link Aggregation Environment - AES 256-bit Sequential Throughput (64KB)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Read 451.48 451.85 451.86 451.66 451.59 223.26
Write 450.90 450.51 444.26 420.03 431.10 153.34

Gigabit Link Aggregation Environment - AES 256-bit Sequential Throughput (64KB)

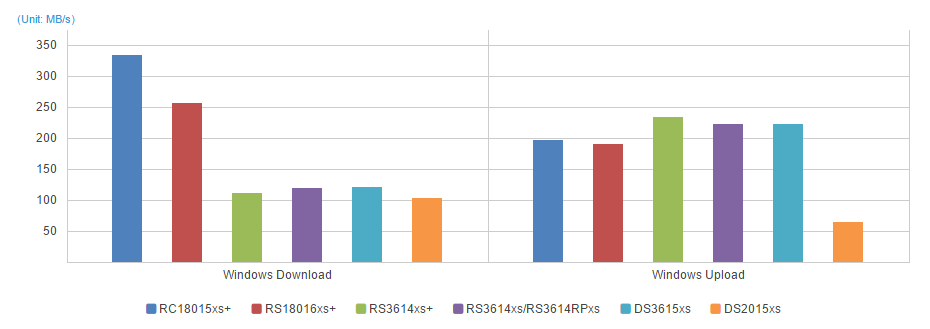

Gigabit Link Aggregation Environment - AES 256-bit File Upload/Download in Windows (1MB x 5000 files)

Model RC18015xs+ RS18016xs+ RS3614xs+ RS3614xs/RS3614RPxs DS3615xs DS2015xs
Windows Download 331.86 255.49 109.94 117.65 120.16 101.04
Windows Upload 194.95 189.07 232.04 220.43 221.52 63.37

iSCSI Sequential IOPS 4KB

Documentation:

Download the Synology DiskStation RC18015xs+ Datasheet  (PDF).
