High-performance NAS server optimized for intensive tasks and encryption
Our Price: $965.00
Our Price: $1,445.00

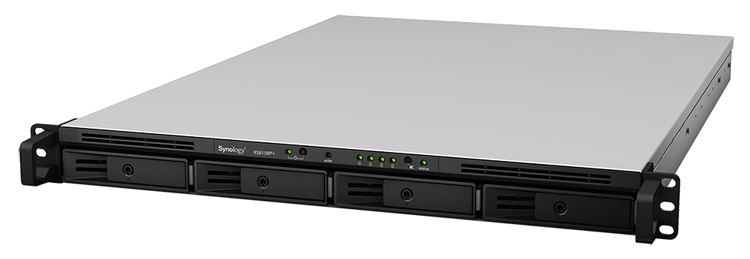

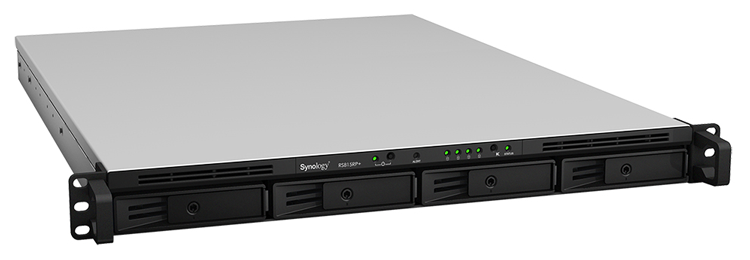

Synology RackStation RS815+/RS815RP+ features an all-new quad core CPU with an AES-NI hardware encryption engine, providing outstanding performance and data encryption acceleration within a 1U rackmout chassis. With four built-in Gigabit LAN ports and scalability of up to 8 drives, Synology RS815+/RS815RP+ is the ideal storage solution for centralizing data backups, protecting critical assets and sharing files across different platforms. Synology RS815+/RS815RP+ is backed with Synology’s 3-year limited warranty.
- Quad Core CPU Delivers 389.03 MB/s Reading, 361.33 MB/s Writing
- AES-NI Hardware Encryption Engine Delivers 388.66 MB/s Reading, 158.9 MB/s Writing
- Four Gigabit LAN Ports with Failover and Link Aggregation Support
- Scale up to 8 Drives with Synology RX4152
- Expandable RAM Module (Up to 6GB)
- Redundant Power Supplies Ensure Service Uptime (RS815RP+ only)
- High Availability and SSD Read/Write Cache Support
- VMware, Citrix, and Microsoft Hyper-V CertifiedRunning on Synology DiskStation Manager (DSM)
With a brand-new quad core CPU, expandable RAM module up to 6GB, and four Gigabit LAN ports supporting link aggregation and failover, Synology RackStation RS815+/RS815RP+ delivers up to an average 389.03 MB/s reading and 361.33 MB/s writing speed under RAID 5 configuration in a Windows® environment.1 Powered by its AESNI hardware encryption engine, RS815+/RS815RP+ also delivers fast encrypted data transmission at over 388.66 MB/s reading and 158.9 MB/s writing, becoming Synology’s most powerful 1U rackmount NAS server ever-built.
RS815+/RS815RP+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Hyper-V. Being VMware vSphere 5 and VAAI integration certified, RS815+/RS815RP+ helps offload specific storage operations and optimizes computation power for unparalleled performance and efficiency in VMware environments. As the centralized storage of a virtual environment, RS815+/RS815RP+ enables virtual machine migration, allowing movement from server to server whilst eliminating service downtime and disruption to user. Windows Offloaded Data Transfer (ODX) and Synology Advanced LUN support extremely improves the efficiency on massive data transfer and migration.
Robust & Affordable Scalability Up to 48TB
With an optional Synology expansion unit RX415, storage volume expansion for Synology RS815+/RS815RP+ is fast and easy. RX415 securely connects to a RS815+/RS815RP+ via an eSATA cable with specially-designed locking connectors and expands the existing storage on Synology RS815+/RS815RP+ up to a maximum raw capacity of 48TB.
Fit to Business Environment
Windows ADS integration allows the Synology RS815+/RS815RP+ to quickly and easily fit in an existing business network environment with no need to recreate users’ accounts on the Synology RS815+/ RS815RP+. The User Home feature minimizes the administrator’s effort in creating a private shared folder for a large amount of users. Windows ACL support on RS815+/RS815RP+ provides much finergrained access control and efficient privilege settings, allowing IT staffs to set up privileges to files and folders on RS815+/RS815RP+ through their familiar Windows user interface. The privileges set on Windows ACL will be applied to all access entries, including AFP, FTP, File Station, NFS and WebDAV. The secure privilege offers IT staff peace of mind, no worries about any loopholes.
Resilient and Reliable
In addition to its superior performance, RS815+/RS815RP+ is built for reliability. Four Gigabit LAN ports provide redundancy in the event of unexpected hardware failure while hot swappable drives also help to minimize system downtime during drive replacement. Uninterrupted availability is a critical goal for all businesses; however, many businesses worldwide still remain unprepared for disaster. High Availability Manager can ensure a seamless transition between clustered servers in the event of server failure with minimal impact to applications, thus decreasing the risk of unexpected interruptions and costly downtime.
Easy Backup Solutions
To protect your critical business data, RS815+/RS815RP+ can become a centralized backup target for consolidating fragmented and unstructured information across your network through a range of options. Advanced backup privilege management makes network backup tasks safer and efficient. Cloud Station with selective sync and ACL control provides real-time data backup and synchronization among multiple computers and mobile devices. Complete backup solutions including Scheduled LUN Snapshot, LUN clone and Backup & Replication minimize the impact of disasters.
Energy Efficient Design
Synology RS815+/RS815RP+ is designed and developed with energy efficiency in mind. Compared with the average storage server counterparts, RS815+/RS815RP+ consume a relatively low amount of power. The support of Wake on LAN/WAN and scheduled power on and off can further reduce power consumption and operation cost. HDD hibernation can be configured to take effect automatically when the system has been inactive for a specified period of time. This not only saves energy but also extends the lifespan of the hard drives.
All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.

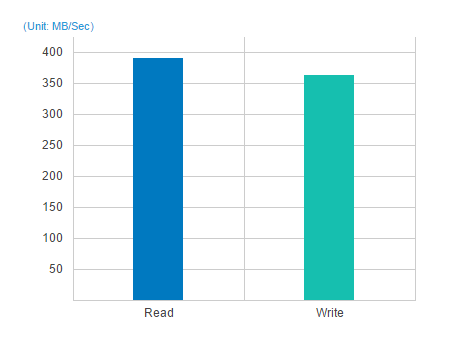

Quad-core CPU brings high performance
Powered by a quad-core CPU running at 2.4 GHz, RS815+/RS815RP+ delivers average 389.03 MB/s reading and 361.33 MB/s writing.1 With this superior performance and a RAM module expandable to 6GB (2GB by default), RS815+/RS815RP+ is a powerful 1U NAS server for mission-critical tasks of SMBs.
Ideal encrypted data transmission with AES-NI
RS815+/RS815RP+ features a hardware encryption engine, which offloads encryption calculation tasks away from the main CPU. That means files and folders are encrypted on the fly without compromising the performance ─delivering encrypted data transmission speeds over 388.66 MB/s reading and 158.9 MB/s writing.

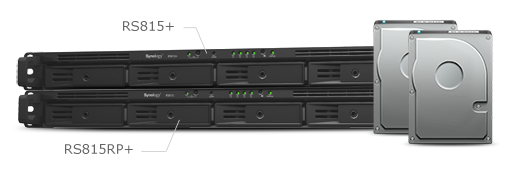

Robust scalability up to 8 drives
When your data storage is nearing its limits, RS815+/RS815RP+ can be connected to a dedicated RX415 expansion unit, letting you easily scale up to 8 drives for additional storage on the fly. With a RX415 connected through an eSATA cable with specially-designed locking connectors, raw capacity can be as high as 48TB.
Optimize storage management
With Synology's Storage Manager, RS815+/RS815RP+ allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot Spare also greatly enhance management efficiency and fit deployment of any kind.
SSD cache technology
RS815+/RS815RP+ enables the combination of hard drives and SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache support, RS815+/RS815RP+ offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.
Award winning OS - DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.
Fit into business environments easily
With the support of Windows AD, LDAP, and Domain Trust, RS815+/RS815RP+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on RS815+/RS815RP+ allows IT administrators to fine tune access controls and set up privileges to files and folders on RS815+/RS815RP+ through the familiar Windows user interface. With compatibility for major protocols, RS815+/RS815RP+ can eliminate server configuration overhead and enhance IT administrators’ efficiency.
Seamless storage solution for virtualization environments
RS815+/RS815RP+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, RS815+/RS815RP+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

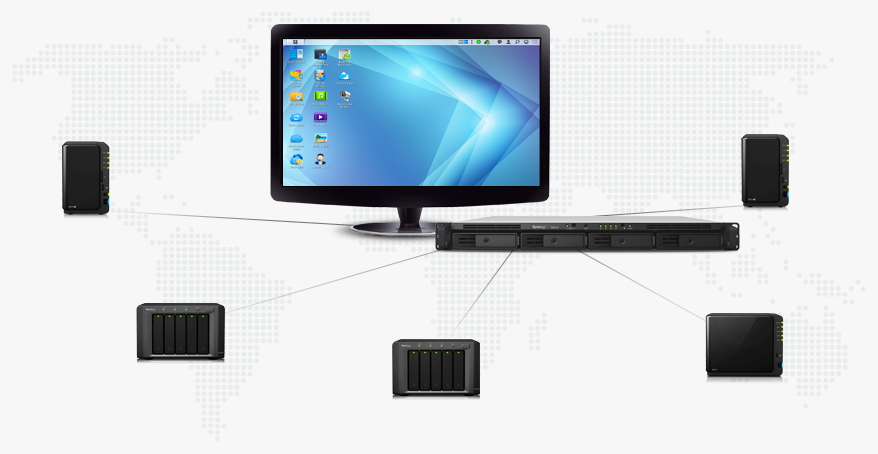

Synology CMS (Central Management System)
For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.
With just one RS815+/RS815RP+, it's possible to handle a vast amount of tasks. RS815+/RS815RP+ helps your company gain a competitive edge by acting as your multi-function server. Directory Server provides LDAP service, while DNS and DHCP packages allow you to host a domain name server and automate network IP assignment at no extra cost. With Synology's Proxy Server, you can regulate content access and monitor who can access which website while saving bandwidth. You can host up to 30 websites with Web Station, safeguard the office environments with Surveillance Station, send and receive mails using your own email domain with Mail Station, share printing capability with Printer Server, make RS815+/RS815RP+ act as a VPN server to access company’s resources remotely, and more.
Ensuring business continuity
Uninterrupted availability is a critical goal for all businesses. RS815+/RS815RP+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, RS815+/RS815RP+ also ensures redundancy in the event of unexpected network failure.

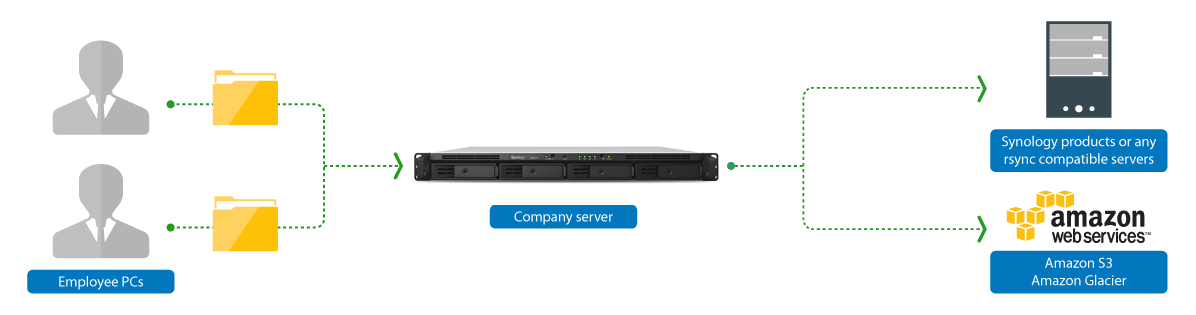

Powerful backup solutions to enhance efficiency
Backup & Replication feature allows you to back up data from one RS815+/RS815RP+ to another DiskStation, or rsync-compatible servers. It also provides the flexibility to restore the server to any particular point in time, and back up modified blocks to optimize storage and processing time. In addition, RS815+/RS815RP+ offers you the capability to back up iSCSI LUNs with no extra charge. Businesses can enjoy efficient backup performance with "Point-in-time copy" technology for data consistence and incremental backup to speed up processing time.
Increase business productivity with cloud solutions
With comprehensive cloud solutions, RS815+/RS815RP+ lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.
Secure your data
RS815+/RS815RP+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RS815+/RS815RP+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

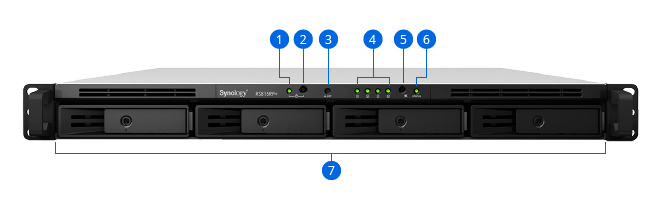

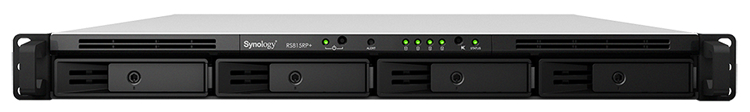

- Power indicator
- Power button
- Alert indicator
- Drive status indicator
- Beep off button
- Status indicator
- Drive tray

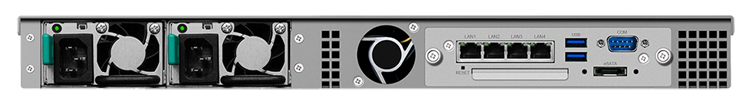

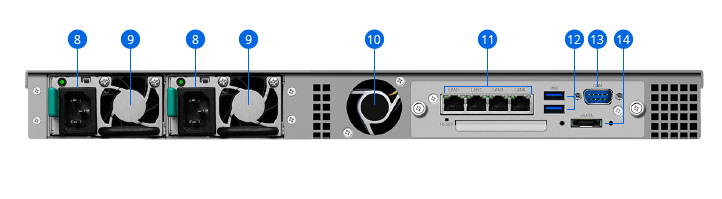

- Power port
- PSU fan
- 1GbE RJ-45 port
- USB 3.0 port
- Console port
- eSATA port
|CPU Model||Intel Atom C2538|
|CPU Frequency||Quad Core 2.4 GHz|
|System Memory||2 GB DDR3|
|Memory Module Pre-installed||2 GB X 1|
|Total Memory Slots||2|
|Memory Expandable up to||6 GB (2 GB + 4 GB)|
|Maximum Drive Bays with Expansion Unit||8|
|Maximum Internal Raw Capacity||32 TB (8 TB HDD X 4) (Capacity may vary by RAID types)|
|USB 3.0 Port||2|
|Size (Height X Width X Depth)||44 mm X 430.5 mm X 457.5 mm
44 mm X 430.5 mm X 591.8 mm (for RP model)
9.36 kg (for RP model)
|RJ-45 1GbE LAN Port||4 (with Link Aggregation / Failover support)|
|System Fan||40 mm X 40 mm X 3 pcs|
|Noise Level||25.3 dB(A)
52.8 dB(A) (for RP model)
|Power Supply Unit / Adapter||250W
2 X 250W (for RP model)
|AC Input Power Voltage||100V to 240V AC|
|Power Consumption||36.78 W (Access)
20.57 W (HDD Hibernation)
45.88 W (Access, for RP model)
30.74 W (HDD Hibernation, for RP model)
|Power Frequency||50/60 Hz, Single Phase|
|Operating Temperature||5°C to 35°C (40°F to 95°F)|
|Storage Temperature||-20°C to 60°C (-5°F to 140°F)|
|Relative Humidity||5% to 95% RH|
|Networking protocol||SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)|
|File sharing capability||
|Privilege||Windows Access Control List (ACL)|
|Directory service||Windows AD Integration: Domain Users login via Samba (CIFS)/AFP/FTP/File Station, LDAP Integration|
|Virtualization||VMware vSphere 5, Microsoft Hyper-V, Citrix Certified|
|Security||FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection|
|Utilities||Synology Assistant, Cloud Station, Evidence Integrity Authenticator|
|Supported client||Windows XP onward, Mac OS X 10.5 onward, Ubuntu 9.04 onward|
|Supported browser||Chrome, Firefox Internet Explorer: 8 or onward, Safari 5 or onward, Safari (iOS 5 or later on iPad), Chrome (Android 4.0 on tablets)|
|Language||English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český|
|File Station||Virtual Drive, Remote Folder|
|Backup solutions||Network Backup, Local Backup, Desktop Backup, Shared Folder Sync - Maximum Task Number: 8, Configuration Backup|
|Mail Server||Supported Mail Server Protocols: POP3, SMTP, IMAP|
|FTP Server||Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log|
|Web Station||Virtual Host (up to 30 websites), PHP/MySQL, 3rd-Party Applications Support|
|Printer Server||Maximum Printer #: 2, Printing Protocols: LPR, CIFS, IPP, Apple iOS Printing, Google Cloud Print™, Multi Functional Print Server (MFP functions are for Windows PC only)|
|Log Center||SSL Connection, Log Rotation: 6 months, 1 year, 2 years, 3 years, Email Notification|
|iOS/Android applications||DS audio, DS cam, DS cloud, DS download, DS file, DS finder, DS photo+, DS video, DS note|
|Windows Phone applications||DS audio, DS download, DS file, DS finder, DS photo+, DS video|
|Surveillance Station||Default IP cam #: 2, Maximum IP cam # (licenses required): 40 (with two free licenses to install two IP cameras. Additional licenses can be purchased to expand the license quota.)|
|VPN Server||Maximum Connections : 20, VPN Method: PPTP, OpenVPN|
|Mail Station||Webmail Interface for Mail Server, Receiving Mails from Multiple POP3 Mailboxes, Customizable SMTP Server|
|Antivirus Essential||Full System Scan, Scheduled Scan, White List Customization, Virus Definition Auto Update|
|Cloud Station Server||Maximum Concurrent File Transfers: 512, Retain Historical and Deleted File Versions|
|Cloud Sync||Data Sync with Public Cloud Services: Dropbox, Google Drive, Baidu, Microsoft OneDrive, Box and hubiC|
|DLNA/UPnP Media Server||DLNA certified, PS3/PS4/Xbox 360/Xbox One support|
|Download Station||Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum concurrent download task: 80
|Note Station||Rich-Text Note Organization with Versioning, Encryption, Sharing, Media Embedding and Attachments|
|Other packages||Photo Station, Audio Station, iTunes Server, 3rd-party packages|
|Environment & Packaging:|
*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1.Performance figures could vary on different environments.
2.RS815+/RS815RP+ supports one Synology RX415, sold separately.
Synology strives to enhance the performance of our NAS with every software update, even long after a product is launched. For enterprises and users that demand uncompromising performance from their servers, check the figures below to find the most suitable choice.
1GbE SMB - Sequential Throughput (64KB)
1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)
1GbE SMB - Windows File Transfer (3GB file x 1)
1GbE SMB - Windows File Transfer (1MB file x 3000)
1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)
1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)
1GbE AFP - Mac File Transfer (3GB file x 1)
1GbE AFP - Mac File Transfer (1MB file x 3000)
1GbE Web Server - HTML Response Efficiency
|Responses per second||52010.11||3333.06||63488.82||23824.99||39699.81||23430.09||18668.92|
1GbE Web Server - PHP Response Efficiency
|Responses per second||10934.26||5996.57||13690.33||8874.15||8457.31||5585.42||3317|
- Operating System: DSM 6.1
- Volume Type: RAID 5 (4 bay), RAID 1 (2 bay), Basic (1 bay)
- DS416slim: Fully loaded with Intel 535 Series 240GB SSDSC2BW240H6 SSD
- Other models: Fully loaded with Seagate ST6000VN0001 6TB HDD
- File System:
- [1-bay] DS116, DS115j
- [2-bay] RS217, DS216, DS216play, DS216j, DS216se
- [4-bay] RS816, DS418, DS418j, DS416slim
- [2-bay] DS718+, DS218+
- [4-bay] RS815(RP)+, DS918+, DS418play
- 1GbE Network Environments:
- For models with single 1GbE LAN port: MTU 1500; connected to 1 client PC via HP 2530-48G switch
- For models with multiple 1GbE LAN ports: Link Aggregation is enabled for Sequential Throughput tests; MTU 1500; connected to client PCs via HP 2530-48G switch
- 1GbE SMB Network Environments:
- For NAS models with single 1GbE LAN port: Intel Core i7-3770 3.40GHz; 32GB DDR3-1866; RAMdisk with 14GB source partition and 14GB target partition; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
- For NAS models with multiple 1GbE LAN ports: Intel Core i7-3770 3.40GHz; 4GB DDR3-1600; Intel 520 (120GB) SSD x 2; striped volume; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
- IOMeter setting for Sequential Throughput tests: Continuously read from/write to a single 8GB file for 3 minutes; Block size: 64KB
- 1GbE Web Server Network Environment:
- Intel Core i7-6700 3.40GHz; 16GB DDR4-2133; Intel Gigabit CT; MTU 1500; Ubuntu 16.04
- (html) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark" http://DS_IP/index.html
- (php) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark"http://DS_IP/echo.php
- 1GbE AFP Network Environment: Mac Mini; 2.3GHz 4 core Intel Core i7; 16GB DDR3-1600; RAMdisk with 7GB source partition and 4GB target partition; MTU 1500; OSX 10.9
- Performance figures are achieved in the Synology lab by using very powerful client computers with optimized network settings, and could vary in different environments. Regular office desktop or notebook computers may not be able to reproduce these figures.
Download the Synology RackStation RS815+ Datasheet (PDF).
- Pricing and product availability subject to change without notice.
