Expansion Unit RX1217 / RX1217RP
Scale up your RackStation in a breeze

Synology DiskStation RX1217 / RX1217RP

Synology Products
Synology Expansion Unit
Synology Expansion Unit RX1217 12 Bay
#RX1217
Our Price: $1,445.00
Synology Expansion Unit RX1217RP 12 Bay
#RX1217RP
Our Price: $2,224.00

Click here to jump to more pricing!

Overview:

RX1217 / RX1217RP

Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations.

Volume expansion & backup

When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design

Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Product Views:

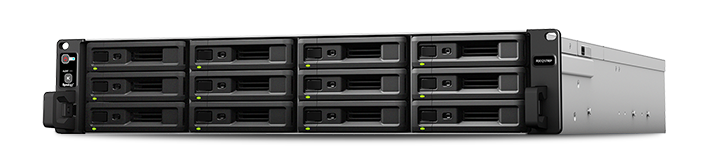

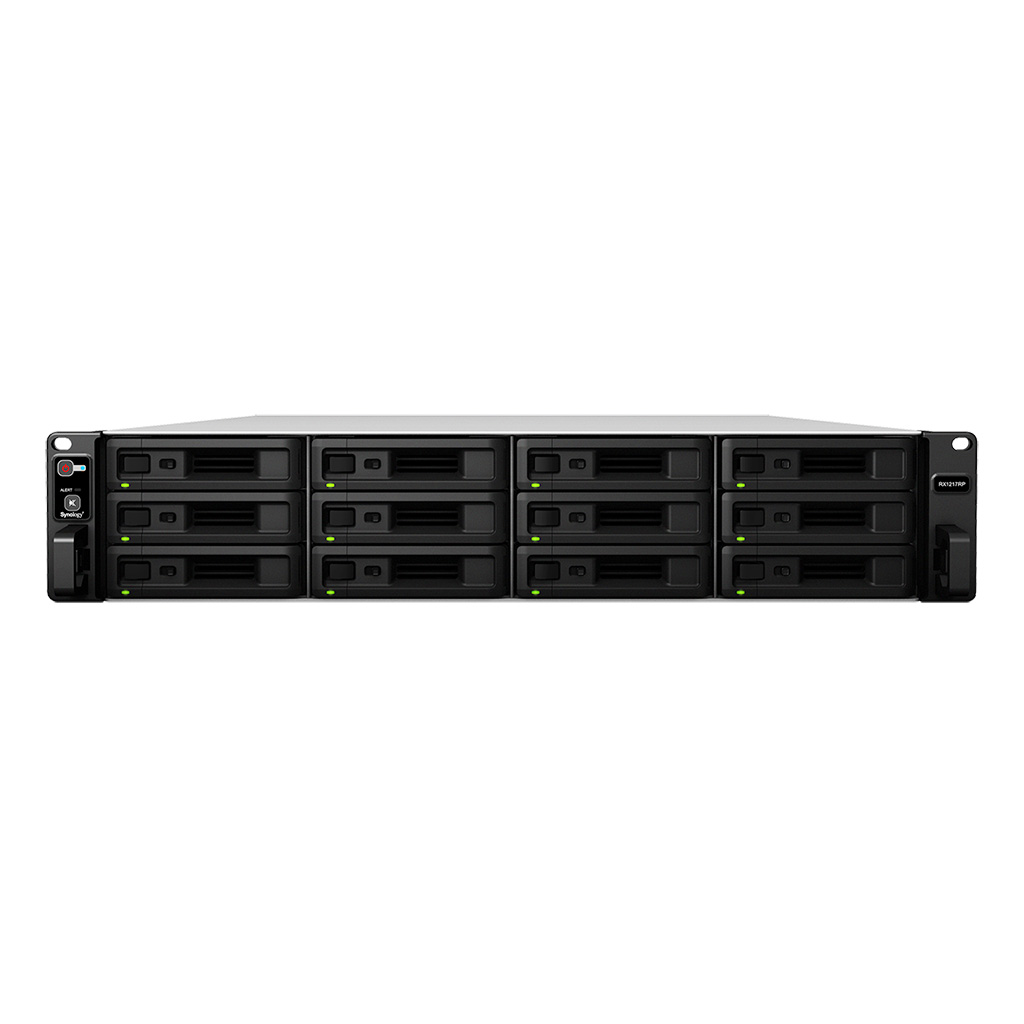

RX1217 Front View

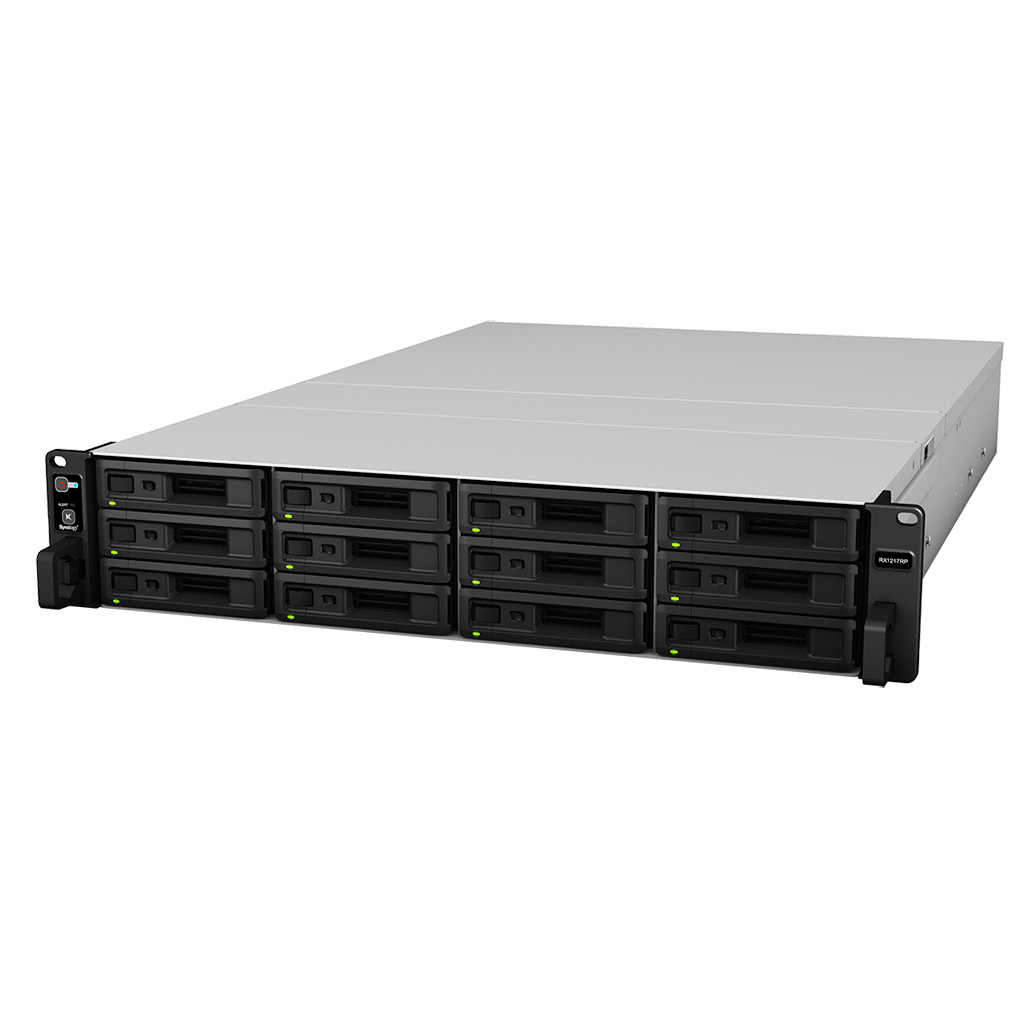

RS3617xs Left Angle

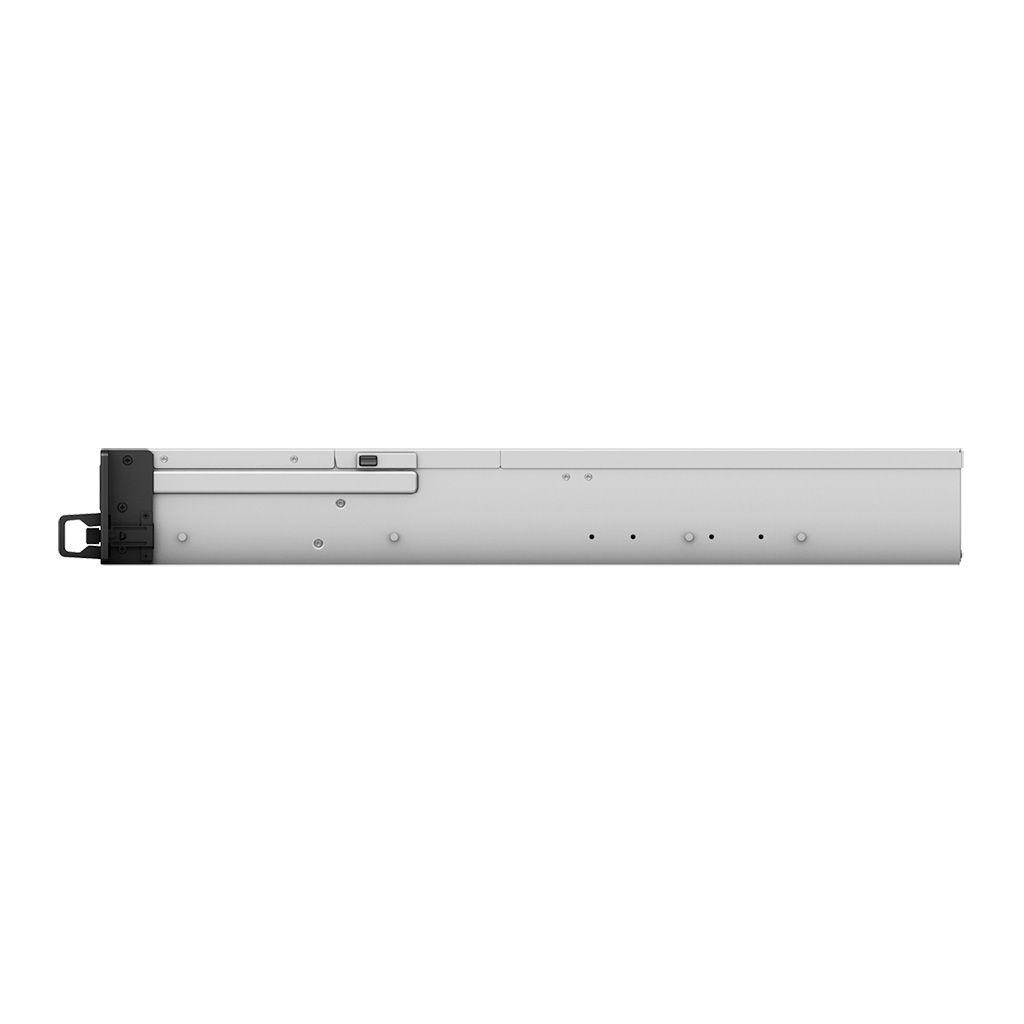

RS3617xs Left Side

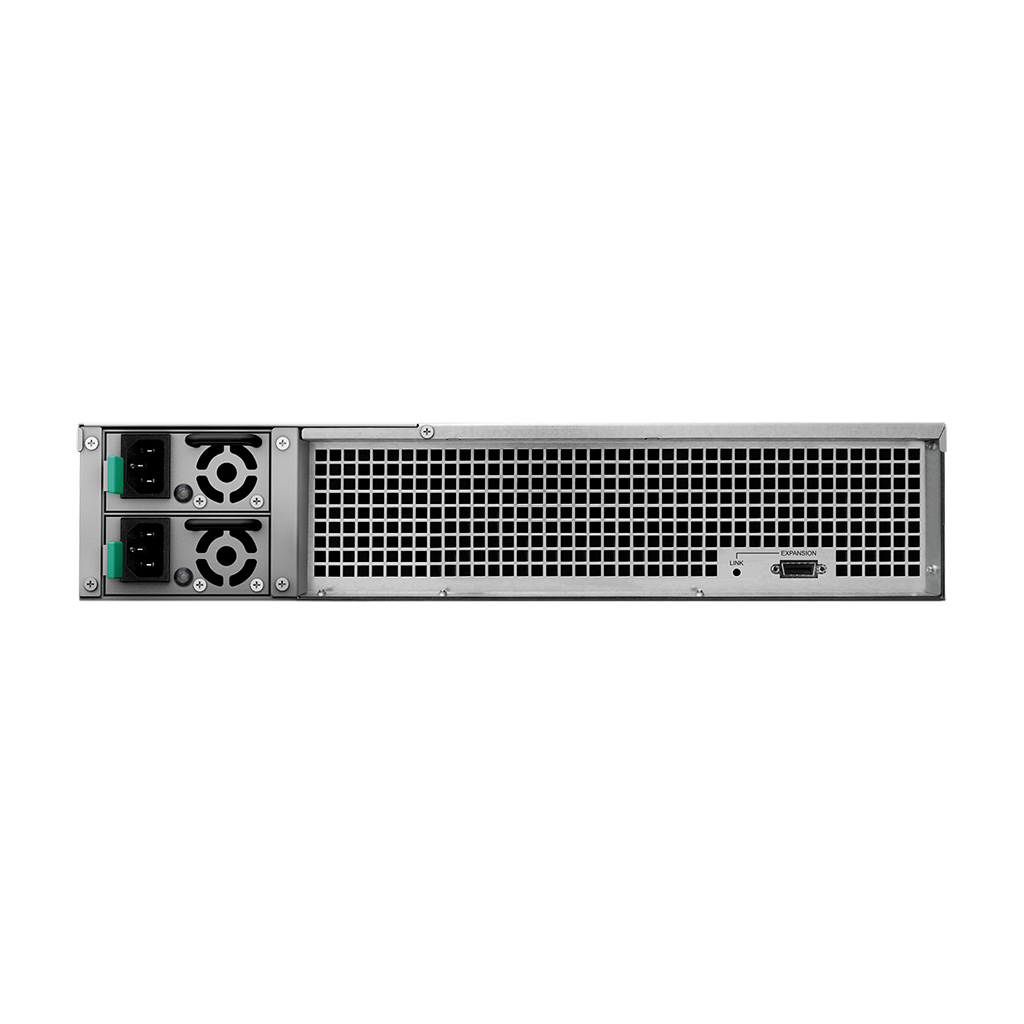

RS3617xs Rear

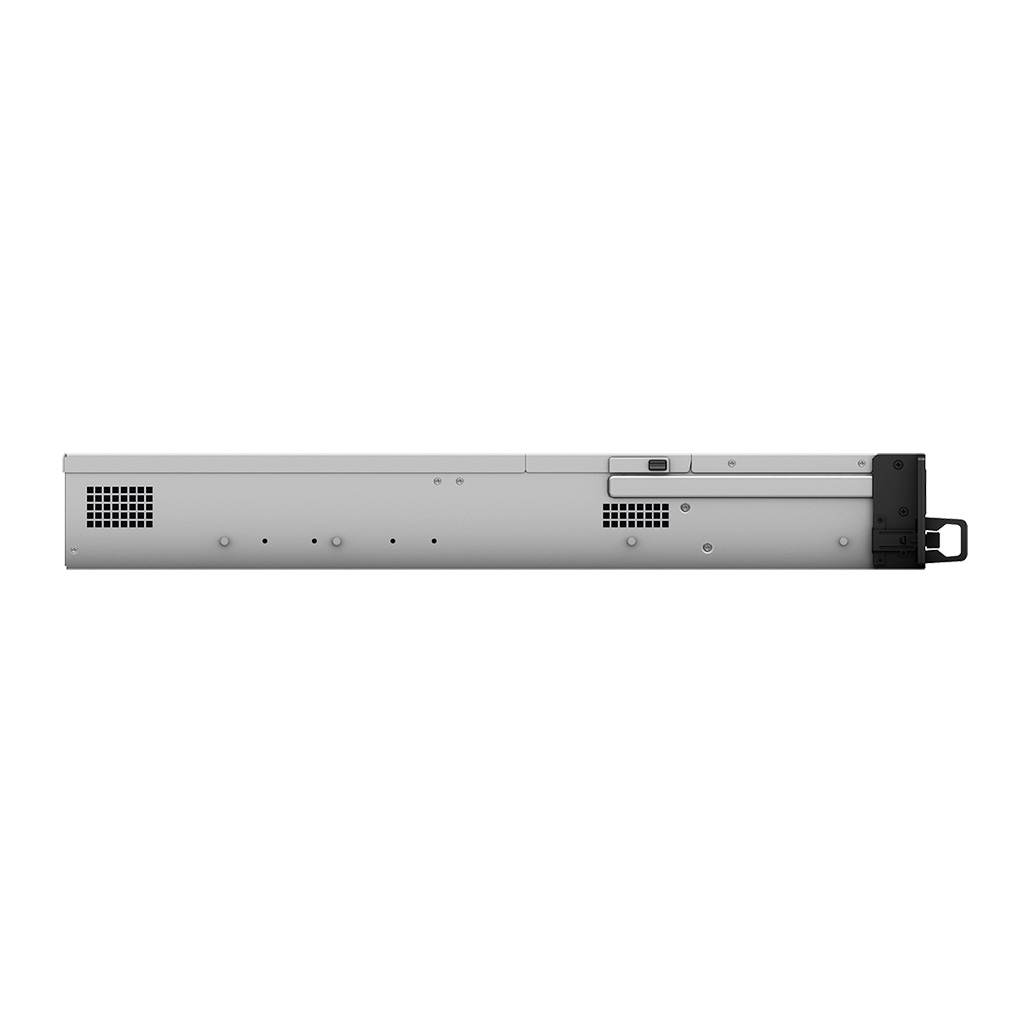

RS3617xs Right Side

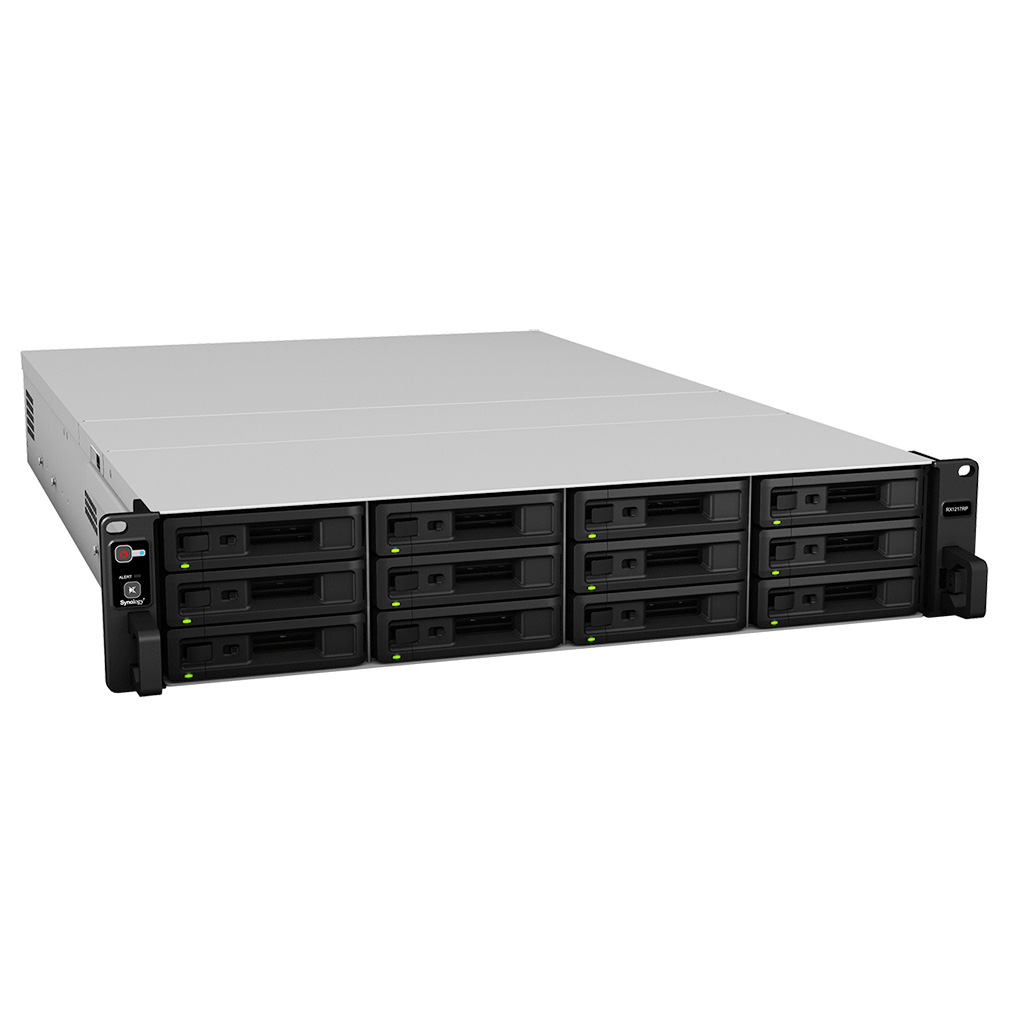

RS3617xs Right Angle

Technical Specifications:


Hardware Specifications:
Applied Models
  • RS3617xs+
  • RS3614xs+
  • RS3413xs+
  • RS3617xs
  • RS3617RPxs
  • RS3614(RP)xs
  • RS3412(RP)xs
  • RS3411(RP)xs
  • RS2416(RP)+
  • RS2414(RP)+
  • RS2212(RP)+
  • RS2211(RP)+
Note DSM version requirement: 6.0.1-7393 or later version
Storage
Drive Bay(s) 12
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
Infiniband port 1
Appearance
Size (Height X Width X Depth) 88 mm x 430.5 mm x 664 mm
88 mm x 430.5 mm x 692 mm (for RP model)
Weight 12.7 kg
13.4 kg (for RP model)
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 500W
2 X 500W (for RP model)
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 68.60 W (Access)
27.45 W (HDD Hibernation)
71.32 W (Access, for RP model)
31.20 W (HDD Hibernation, for RP model)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Redundant Power Supply (for RP model)
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Noise Level 54.6 dB(A)
54.2 dB(A) (for RP model)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC Class A
  • CE Class A
  • BSMI Class A
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • AC Power Cord X 2 (for RP model)
  • Expansion Cable: Infiniband X 1
  • Quick Installation Guide X 1
Optional Accessories Synology RKS1317 - Rail Kit Sliding

Documentation:

Download the Synology RackStation RX1217 / RX1217RP Datasheet  (PDF).
