DiskStation DS620slim
Secure digital content with a modern look

Synology Products
Synology DiskStation
Synology DiskStation DS620slim 6 bay SAN/NAS Storage System - Intel Celeron J3355 Dual-core (2 Core) 2 GHz
#DS620slim
Our Price: $449.00
Synology Recommended Bundles
3TB Bundle
DS620slim (2GB RAM) 3TB Capacity
Includes:
  • Synology DiskStation DS620slim 6 bay SAN/NAS Storage System, 2GB RAM
  • WD Red 500 GB Solid State Drive - 2.5 in. SATA, 3TB Capacity (QTY 6 X 0.5TB)
#DS620slim-6-500
Our Price: $927.74
Contact Us for the lowest pricing!
6TB Bundle
DS620slim (2GB RAM) 6TB Capacity
Includes:
  • Synology DiskStation DS620slim 6 bay SAN/NAS Storage System, 2GB RAM
  • WD Red 1 TB Solid State Drive - 2.5 in. SATA, 6TB Capacity (QTY 6 X 1TB)
#DS620slim-6-1000
Our Price: $1,574.00
Contact Us for the lowest pricing!
12TB Bundle
DS620slim (2GB RAM) 12TB Capacity
Includes:
  • Synology DiskStation DS620slim 6 bay SAN/NAS Storage System, 2GB RAM
  • WD Red 2 TB Solid State Drive - 2.5 in. SATA, 12TB Capacity (QTY 6 X 2TB)
#DS620slim-6-2000
Our Price: $2,699.00
Contact Us for the lowest pricing!
24TB Bundle
DS620slim (2GB RAM) 24TB Capacity
Includes:
  • Synology DiskStation DS620slim 6 bay SAN/NAS Storage System, 2GB RAM
  • WD Red 4 TB Solid State Drive - 2.5 in. SATA, 24TB Capacity (QTY 6 X 4TB)
#DS620slim-6-4000
Our Price: $4,949.00
Contact Us for the lowest pricing!

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview:

When performance meets style

DS620slim is a mini 6-bay NAS with a stylish chassis design, perfectly blending in modern workplaces or apartments. Supporting near-instantaneous snapshot technology, DS620slim is an all-around file management solution that fulfills professionals’ needs of advanced data protection.

CPU

Dual-core 2GHz burst up to 2.5GHz


Memory

DDR3L 2GB, up to 6GB


Encryption Performance

Over 226 MB/s reading and 198 MB/s writing


Btrfs: Next generation storage efficiency

The Btrfs file system introduces cutting-edge storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

btrf file system

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders

Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots

File or folder level data restoration makes data recovery fast and flexible

Automatic file self-healing detects and recovers corrupted files without user intervention


Ultimate file management and sharing

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS620slim supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

btrf file system

Access Files Seamlessly

Access and sync your files seamlessly

Synology Drive provides a built-in universal portal to access your data anytime and anywhere, and synchronize all your files across platforms, including Windows, macOS, Linux, Android, and iOS.

  • Sync files on demand: Save the storage space and network bandwidth of your PC.
  • Go back in time: Easily retrieve previous versions of your shared files.
  • Back up your data: Protect your files with scheduled backups or in real-time.

Stream content to your TV

Turn your Synology NAS into a home media hub and stream your digital contents to computers, mobile devices, Samsung TV, Apple TV, Google Chromecast, and DLNA devices.

Stream content to your tv

Features:

File Server Management

File Server/Management

Powerful built-in file management and sharing services.

Snapshot Replication

Snapshot Replication

Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for quick disaster recovery.

Multimedia

Multimedia

Complete multimedia solution for management, streaming, and playback.

DSM UI

DSM UI

Award-winning operating system with an intuitive user interface and powerful capabilities.

Security

Security

Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.

Public Cloud Integration

Public Cloud Integration

Backup and synchronize data easily between your public cloud accounts and your NAS.

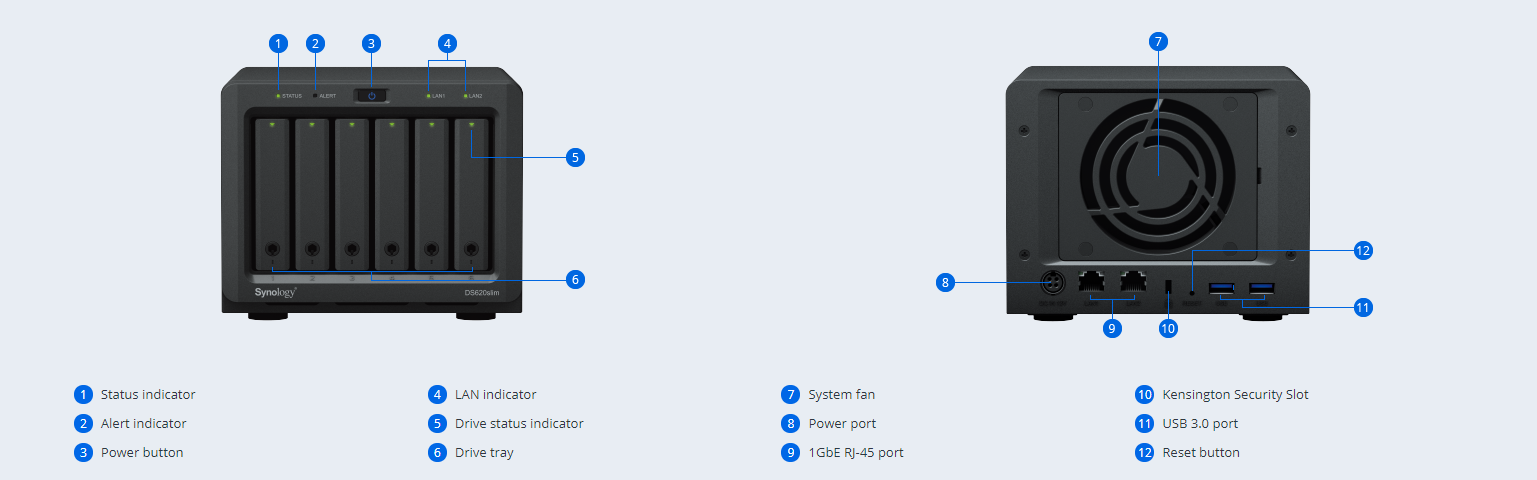

Physical Features:

Physical Features

Specifications:


Hardware Specs - DS620slim

CPU

CPU Model Intel Celeron J3355
CPU Architecture 64-bit
CPU Frequency 2-core 2.0 (base) / 2.5 (burst) GHz
Hardware Encryption Engine (AES-NI)
Hardware Transcoding Engine H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30

Memory

System Memory 2 GB DDR3L non-ECC SODIMM
Memory Module Pre-installed 2 GB (2 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 6 GB (2 GB + 4 GB)
Notes
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 6
Compatible Drive Type* (See all supported drives)
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 46.08 TB (7.68 TB drive x 6) (Capacity may vary by RAID types)
Maximum Single Volume Size* 108 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2

File System

Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth) 121 mm x 151 mm x 175 mm
Weight 1.4 kg

Others

System Fan 80 mm x 80 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 20.5 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 65 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 34.88 W (Access)
7.59 W (HDD Hibernation)
British Thermal Unit 119.1 BTU/hr (Access)
25.92 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%.

Temperature

Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Certification

  • EAC
  • VCCI
  • RCM
  • FCC
  • CE
  • BSMI

Warranty

2 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Documentation:

Download the Synology DiskStation DS620slim Datasheet  (PDF).
