Synology Mesh Router MR2200ac
Intelligent mesh Wi-Fi router with Tri-Band and MU-MIMO technology for homes and offices

Synology Mesh Router MR2200ac

Sorry, this product is no longer available, please contact us for a replacement.



Embrace a whole Wi-Fi coverage in your home and office with the intelligent Synology Mesh Router MR2200ac. Designed with Tri-Band and MU-MIMO technology, MR2200ac makes sure your devices are on the fastest bandwidth dedicated to an optimized performance while keeping multiple devices reliably connected without any delay. Besides, you can enjoy the best Wi-Fi seamless roaming with a single Wi-Fi name among your modular mesh system. Safe Access provides easy-to-use parental management while keeping away any malicious intrusions. Synology MR2200ac is backed by Synology’s 2-year limited warranty.

  • Dedicated Tri-band 2.13 Gbps (400+867+867 Mbps) bandwidth optimized for performance and reliability
  • Easy setup and remote management from web client or mobile app
  • Comprehensive parental management and easy-to-use inter face with Safe Access
  • Single Wi-Fi name and seamless roaming with 802.11 k/v/r support
  • Create advanced VPNs with WebVPN, Synology SSL VPN, and SSL VPN capability
  • Guest Wi-Fi with features such as guest por tals, scheduling, and password rotation
  • Powerful add-on packages to enhance security, file sharing, and additional functionality

Brilliant mesh system ready for smart home

To build a mesh system, simply extend an existing RT2600ac Wi-Fi network with an additional MR2200ac or integrate multiple MR2200ac mesh routers. The single Wi-Fi name you set allows you to roam from room to room: you can now stream a movie without the signal dropping and enjoy an extraordinary seamless roaming experience. With its Tri-band technology on one 2.4 GHz band and two 5 GHz bands featuring MU-MIMO support, MR2200ac establishes three separated connections and allows accommodation to extra devices to achieve maximum Wi-Fi speeds and reduces congestion.

Smart Connect ensures devices are automatically connected to the most suitable band to reach the optimal connection performance - this greatly reduces any delays and interruption. Guest network provides a secure connection and gives public and temporary visitors only limited permission - this keeps the primary network properly functioning and well protected. You can also set up a welcome portal for everyone connecting to your guest Wi-Fi. Tools including scheduling, auto password change, and MAC address filtering also help prevent unwanted connections.

With MR2200ac supporting Wi-Fi Protected Setup (WPS), simply press one button to allow your Wi-Fi connection to be automatically configured and enjoy a hassle-free setup. Coupled with the attached USB 3.0 port available for extra storage devices, MR2200ac can easily become your private server that provides effortless access and file sharing.

Revolutionary software experience

Built with security and stability in mind, Synology Router Manager (SRM) allows for friendly management on your device. The familiar, desktop-like interface makes it easy to use, and also comes with capable network tools that users can quickly setup, customize or efficiently troubleshoot issues.

Secure and convenient access options are built into SRM. Easily manage your network with multiple access methods remotely with QuickConnect, DDNS, or with DS router on mobile devices. Optional two-step authentication ensures that no one but you can make changes to your network.

Redefine parental control

In view of limiting Internet usage and protecting children from online dangers, the add on package Safe Access allows you to easily understand the Internet habits of children at different ages.

  • Profile management: Set rules by users instead of devices with User Profiles to streamline your management. Your Local Network and Guest Wi-Fi can also be specified in one group.
  • Time management: Internet schedules and Time Quota help you encourage children to use time wisely, and learn to be more organized and productive with limited time online.
  • Web-filtering: The constantly updated block categories help you filter out inappropriate content and safeguard your children. Besides, you can set up additional allow list or block list so children can only visit or be blocked from specific sites.
  • Website history: Easily keep track of the access history of each profile and learn more details about your children’s online activities.

Advanced VPN capabilities

With the VPN Plus Server1 add-on package, you can transform your Synology Mesh Router MR2200ac into a powerful yet intuitive comprehensive VPN solution. VPN Plus Server provides security and convenience to your remote workforce when you need remote access to internal network resources. WebVPN allows client-free VPN for secured, remote access to internal websites using only a browser without any software installation or configuration required on clients. Synology SSL VPN is available with dedicated clients on both desktop and mobile platforms. Remote Desktop allows employees to easily and securely access resources on their PCs within the internal network through a web browser. VPN Plus Server also supports hosting standard SSTP, PPTP, OpenVPN, and L2TP over IPSec VPN options.

Moreover, Site-to-Site VPN2 increases business productivity by boosting cross-premises file transfer speeds for companies with branches in multiple locations, allowing them to share resources across different networks through encrypted tunnels without the need for employees to configure VPN settings on individual computers.

Solid network foundation

Synology MR2200ac offers advanced security features that help make your network more resilient against network intrusions. SRM's built-in Security Advisor will analyze and remind you of security issues in your configuration, allowing you to easily setup security configurations. In addition to the built-in IPv4 and IPv6 firewalls, the DNS/IP Threat Intelligence Database of Safe Access also helps prevent malicious attacks from infiltrating and compromising your devices.

Comprehensive network management

To deal with heavy network traffic from multiple applications, SRM offers well designed traffic management solutions.

Traffic control keeps you updated in the real-time with detailed information of each application and device, while also allowing you to define the priority of services with application QoS and the guaranteed bandwidth allocation of devices. Thanks to the automatically generated Network Traffic Report, you can easily track the detailed event logs and recent traffic trends. The report duration can be defined from daily to annual according to your needs, flexibly assisting you in network tuning on specific applications and each device.

Comprehensive file sharing, management, and connectivity

Comprehensive sharing capabilities together with the add-on package Cloud Station Server allows you to create your personal cloud storage with ease. Easily backup, share, and sync your files with MR2200ac from multiple devices. With a capable Media Server package, your MR2200ac can serve as a media server to any smart television set, networked set-top-box, or the latest gaming consoles. DNS server also helps you find web pages, computers, or other network devices at ease by translating domain names into IP addresses.

Featuring a USB port, Synology MR2200ac can effortlessly transfer files from USB devices or other clients in the network. MR2200ac supports Time Machine backup with an attached storage device. You can also connect MR2200ac to your mobile devices, enable USB tethering, and allow MR2200ac to access the Internet via 3G/4G network.

Evolving Software and Platform

SRM and its ecosystem is constantly growing. Synology is dedicated to providing not just security updates but new features with core software improvements, additional add-on packages, and new supporting mobile applications. Stay up to date with our improvements on our website and via our newsletters!

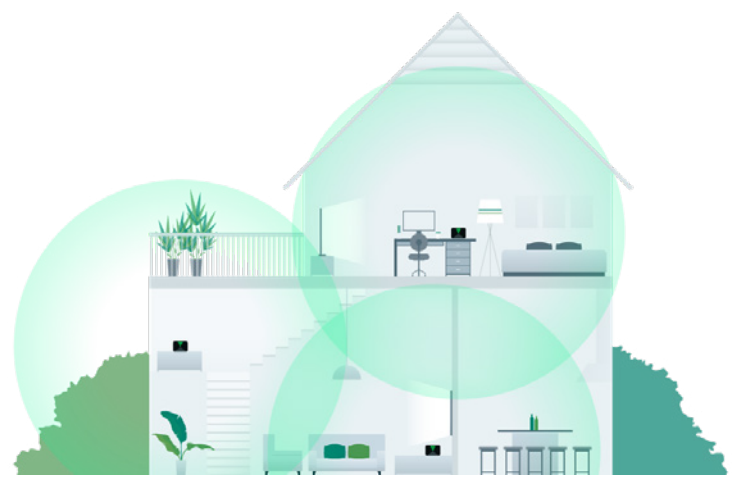

Smart Wi-Fi all around

Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.

Smart Wi-Fi all around

The intelligence behind your mesh network

The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.

  • Pick the ones you want to add to your network
  • Self-configuring
  • Automatically selects the best topology

Whole-home Wi-Fi, easily managed

State-of-the-art technology doesn't have to be complicated. See how Wi-Fi Connect makes your mesh Wi-Fi straightforward – and powerful.

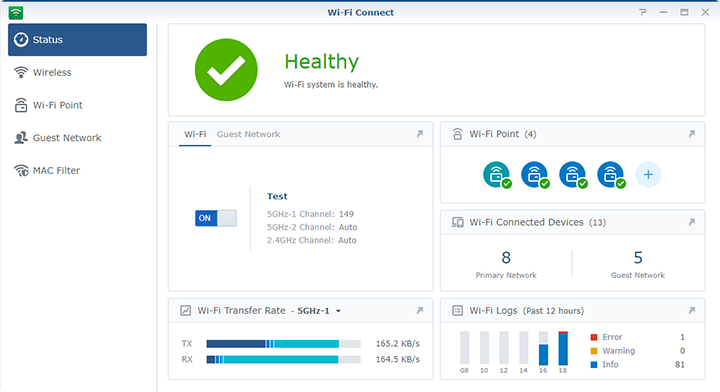

Real-time monitoring

This is your whole Wi-Fi system at a glance. The MR2200ac in the hallway got unplugged? You see it here.

Real-time monitoring

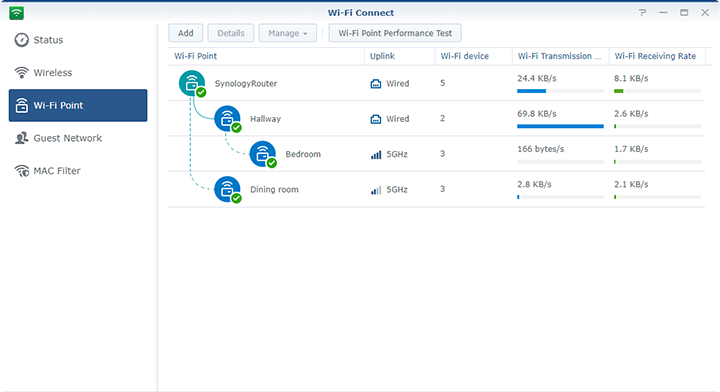

Mesh networking at work

A beautiful network map visualizes how your Wi-Fi points are interconnected and whether they are using 5 GHz, 2.4 GHz, or Ethernet uplinks.

Mesh networking at work

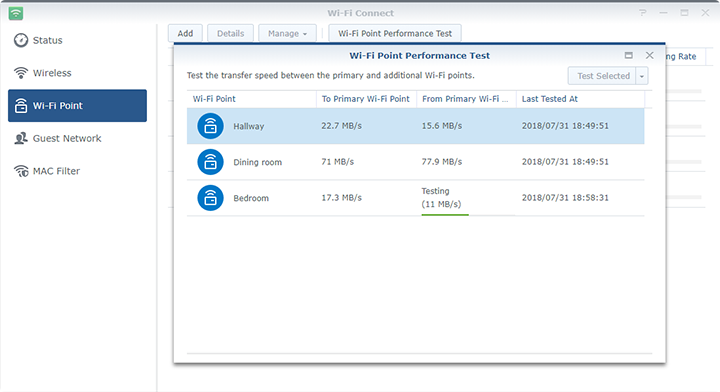

Identify bottlenecks

Run performance tests to pinpoint what might be slowing down your network.

Identify bottlenecks

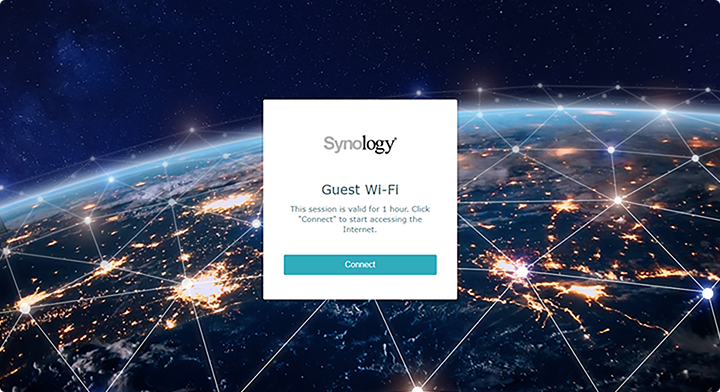

Customize guest network options

Set up a welcome portal for everyone connecting to your guest Wi-Fi. Tools like scheduling, auto password change, and MAC filters can help keep unwanted connections away.

Customize guest network options

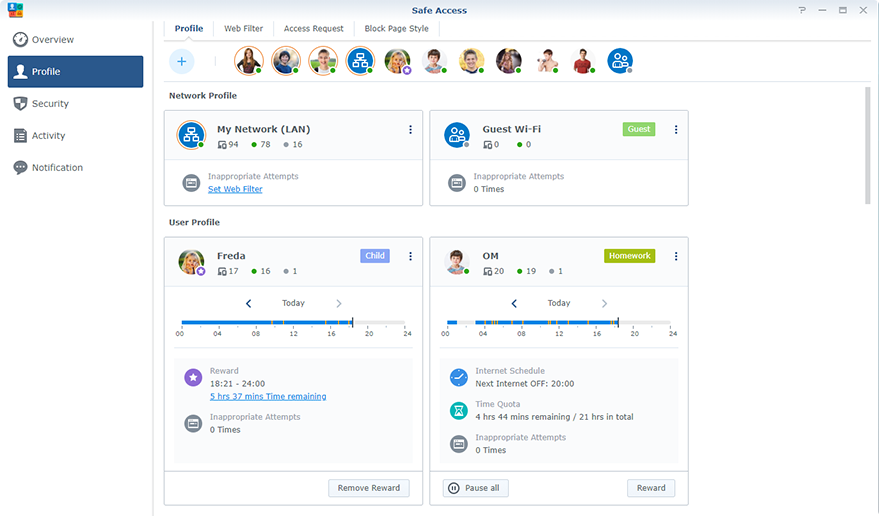

Create a kid-friendly online world

Synology want kids to be safe online, even when we’re not there. Safe Access helps you lay down rules for each kid without having to look for parental control solutions for every devices. Now you can get a full picture of how they’re exploring the world every day, and protect them until they’re ready.


Create a user profile to manage all devices someone owns at one time. You can also have one for all future devices connecting to your local network, one for guest Wi-Fi, one for IoT gadgets, and so on.

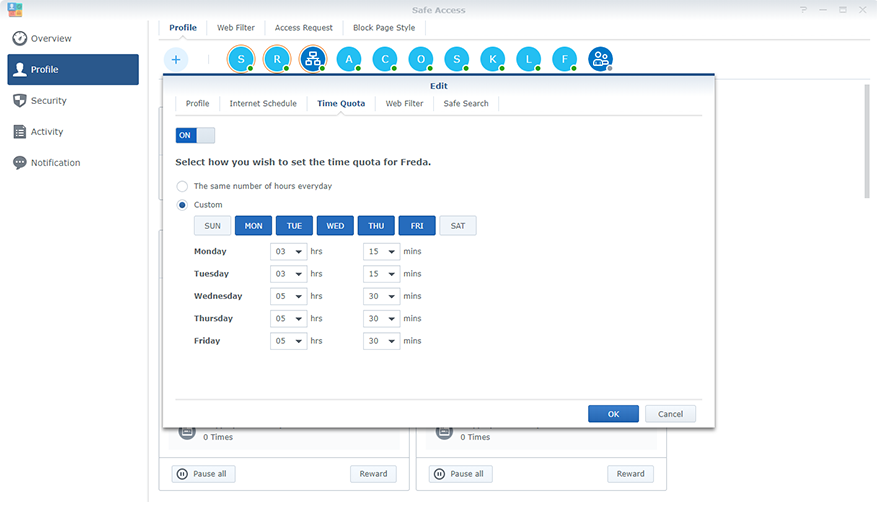

Time management

Set time limits and schedules. Encourage your kids to use their time wisely, and reserve some quality time for family.

Time management

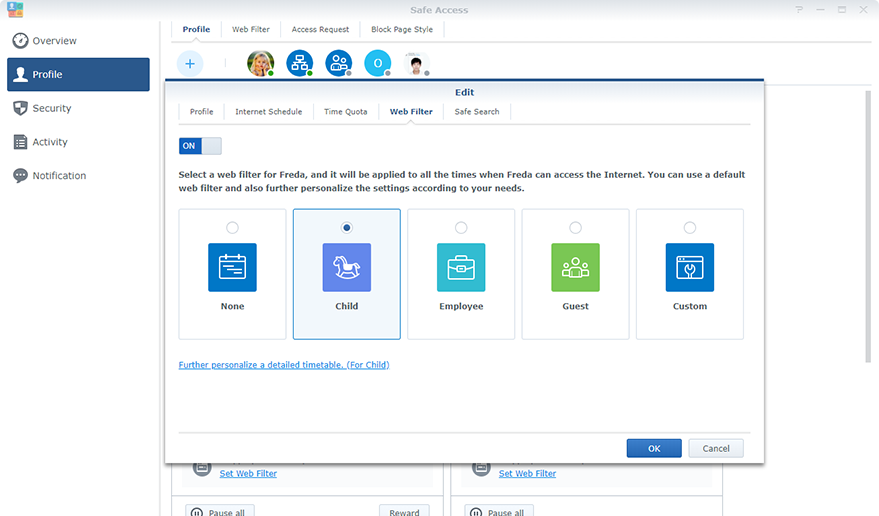

Internet filtering

Safeguard kids from adult-only content and search results. Set up a whitelist so younger children can only visit those sites. Schedule a web filter to ensure no social media during homework hours. The possibilities are boundless.

Internet filtering

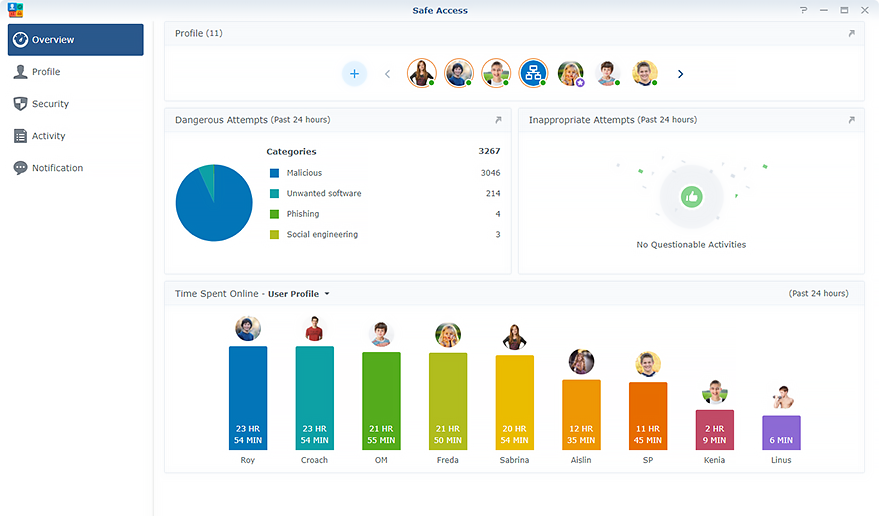

Understand usage & react

Gain insights into a kid’s activities every day. Reward him by giving him a few extra hours online, or pause all his devices if it’s time to talk.

Understand usage & react

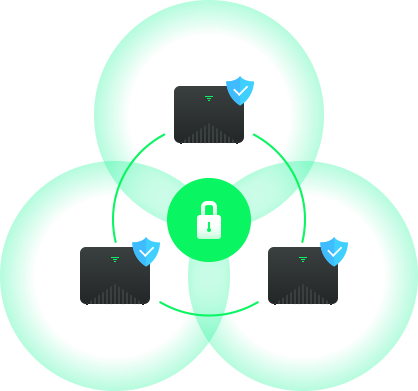

Security at the perimeter

It's not just people that you need to protect. It's all the connected things: IP cameras, smart doorbells, alarm systems… things that can make a smart home vulnerable. MR2200ac installs multiple layers of protection to shield your network against cyberattacks happening every day.

Wi-Fi Certified WPA3 & Enhanced Open technology

Certified by the newest Wi-Fi security standards, including WPA3-Personal, WPA3-Enterprise and Opportunistic Wireless Encryption (OWE), MR2200ac equips homes, businesses, and open Wi-Fi networks with other attacks.

Always up-to-date

Boasting a long track record of fast and continuous updates, SRM makes sure that your mesh network is ready to counter emerging threats.

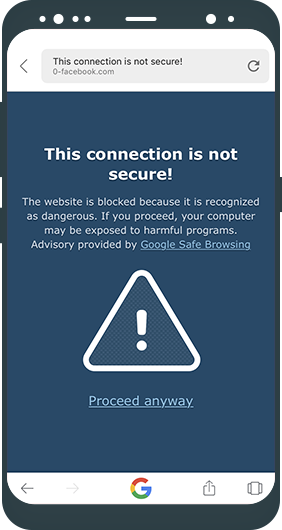

Google Safe Browsing

Guarding over three billion devices from malware, social engineering, and unwanted software, it's now brought into MR2200ac to keep everything in your network safe, regardless of the platforms used.

DNS & IP threat intelligence

Several additional threat intelligence databases are integrated to block access to malicious domains and IPs. All events are logged for auditing purpose.

Advanced functionality made accessible

For small offices who don't want the hassle of wiring access points everywhere, a mesh Wi-Fi solution fits in perfectly. Unlike others, MR2200ac doesn't leave out the network management features businesses care about.

  • Granular Quality of Service (QoS)
    Device- or application-based bandwidth control and traffic reports.
  • Intuitive and high-speed VPN
    Business-grade SSL VPN, WebVPN, and Site-to-Site IPsec VPN.
  • File sharing & backup
    Time Machine backup, remote file sharing, media server, and much more.

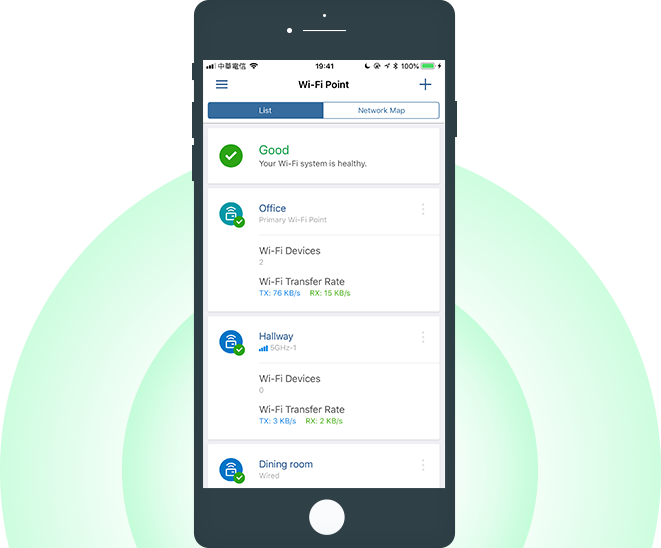

Be mobile

Deploy a mesh network from your phone. Stay on top of the traffic usage, user activities, and security events wherever you are, and act on them with just one tap on the screen. With DS router, you're never too far away from home.

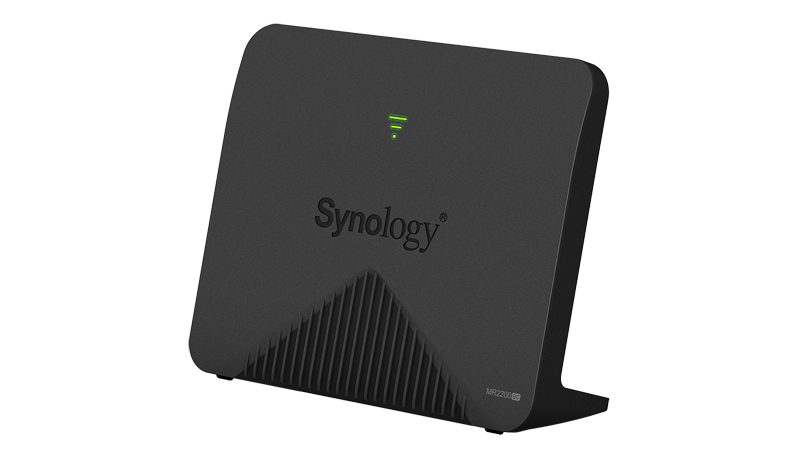

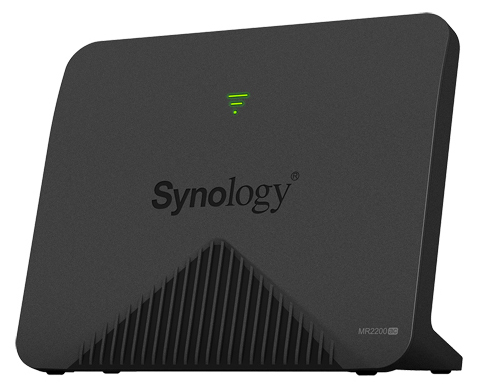

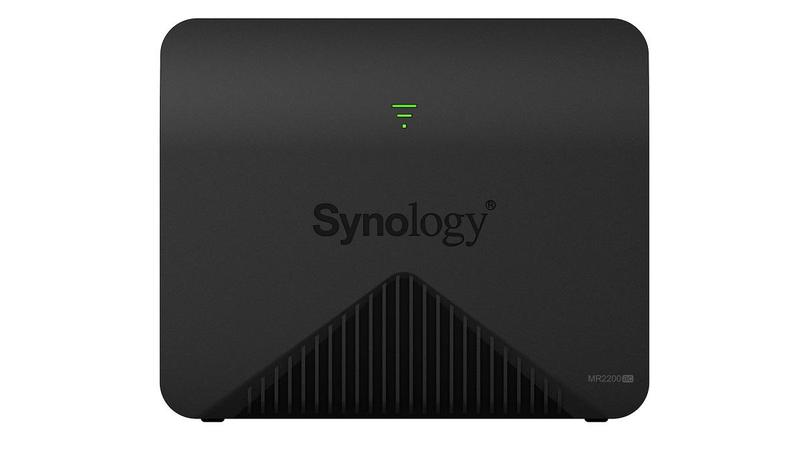

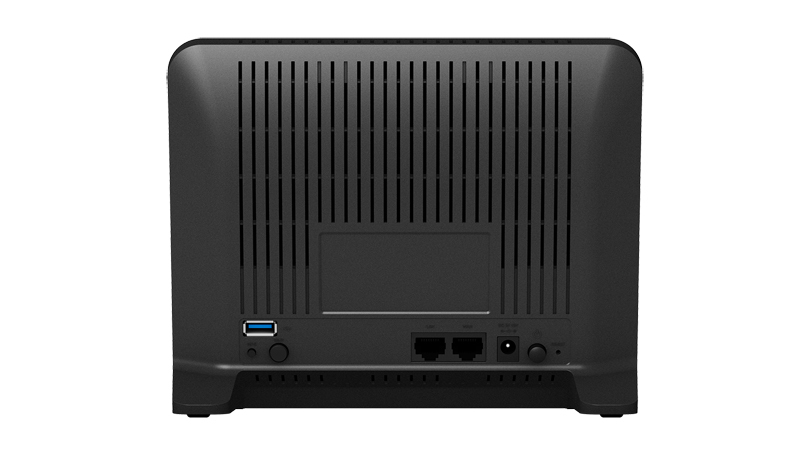

Product Views:

Technical Specifications:

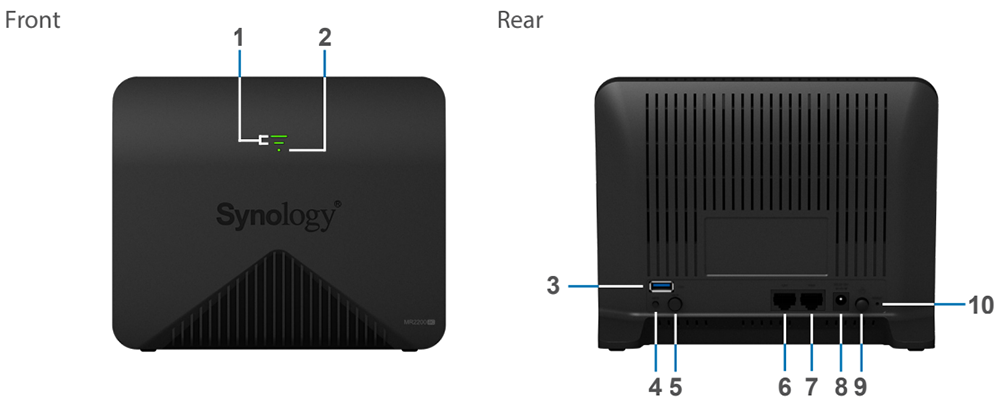

  1. Wi-Fi indicator
  2. Status indicator
  3. USB 3.0 port
  4. WPS button
  5. Wi-Fi on/off button
  6. LAN port
  7. WAN port
  8. Power port
  9. Power button
  10. Reset button
Technical Specifications:
Hardware Specifications
CPU Quad Core 717 MHz
Memory DDR3 256 MB
Antenna type 2T2R high-performance internal antenna (2.4 GHz /5 GHz)
LAN port 1 x Gigabit
WAN port 1 x Gigabit
External Ports USB 3.0
Size (Height x Width x Depth) 154 x 199 x 65 mm
Weight 0.45 kg
AC Input Power Voltage 100V to 240V AC
Power Frequency 50 to 60Hz, single phase
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
Wireless standards 802.11a/n/ac 5 GHz-1/ 5 GHz-2, 802.11b/g/n 2.4 GHz, simultaneous tri-band
Frequency and data rate
  • 2.4 GHz: 400 Mbps
  • 5 GHz-1: 867 Mbps
  • 5 GHz-2: 867 Mbps
Wireless security WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, Wi-Fi Protected Setup (WPS) 2.0, WPA3-Personal/Enterprise certified, Wi-Fi Enhanced Open certified
Seamless roaming 802.11k/v/r standard support
Other wireless functions
  • Smart Connect - 2.4 GHz and 5 GHz automatic band steering, Independent 2.4 GHz /5 GHz Wi-Fi schedule On/Off
  • Guest Network - Wi-Fi schedule On/Off
Operation Modes Wireless router, Wireless AP
DHCP Server, client, client list, MAC address reservation
Quality of Service Dedicated bandwidth management
Port forwarding DMZ, UPnP
Traffic control Per-device Internet ban, custom speed, traffic monitoring, domain history and advanced usage reporting
Network tools Ping, Traceroute, Wake on LAN over QuickConnect
Security IPv4, IPv6 Firewall / SPI firewall, auto block, denial of service (DoS) protection, VPN passthrough (PPTP, IPSec, L2TP), MAC address filter, website filter, IP block, Google Safe Browsing, Google/Youtube/Bing SafeSearch, server certificate, Security Advisor, two-factor authentication
VPN client PPTP, OpenVPN™, L2TP over IPSec
IPv6 support IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
Backup solutions Backup & restore SRM configuration, Time Machine support (with attached USB storage device)
Notifications Email, SMS, push notifications (via DS router)
File Service CIFS, AFP, FTP/FTPS, WebDAV
FTP server Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL /TLS and SFTP protocols, transfer logs
iOS /Android applications DS cloud, DS file, DS router, VPN Plus
Anywhere access Synology QuickConnect, Dynamic DNS (DDNS)
Printer support Maximum printer: 1, printing protocols: LPR, CIFS, IPP
Advanced functions Policy route, static route, network address translation (NAT), SNMP, SSH, LAN/WLAN IGMP snooping, PPPoE relay
Supported clients Windows 7 onward, Mac OS X 10.11 onward
Supported browsers Chrome, Firefox, Internet Explorer 11 onwards, Safari 11 onwards; Safari (iOS 11 onwards), Chrome (Android™ 6.0 onwards)
Add-on Packages
VPN Plus Server1 Allows secure VPN access through a web browser or client. Supports various VPN services — WebVPN, Synology SSL VPN, SSTP, OpenVPN, L2TP over IPSec, and PPTP. Remote Desktop provides remote access within internal network through a web browser. Site-to-Site VPN2 provides companies to establish encrypted tunnels between the networks in multiple locations
Safe Access Offers a simple interface to manage children's online access by creating different profiles and imposing Internet schedules, time quota, and web filters. Delivers solid network protection against intrusions with the DNS-based web filter with a built-in database and Google SafeSearch
Cloud Station Server Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files
RADIUS Server Provides centralized authentication, authorization, and accounting for wireless network access
DNS Server Help users to find, or translate domain names into IP addresses
Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule, maximum concurrent download task: 50
Media Server (DLNA/UPnP) Provide multimedia streaming service to DLNA certified devices and PS3® /PS4® /Xbox 360® /Xbox One® consoles
Certifications and Packaging
Standards RoHS Compliant; Wi-Fi certified; compliant with CE, FCC, NCC, BSMI, IC, IMDA, TELEC, JATE, VCCI, KCC, RCM standards
Package content
  • MR2200ac main unit
  • AC power adapter
  • RJ-45 LAN cable
  • Quick Installation Guide
Warranty 2 Years

*Model specifications are subject to change without notice. Please refer to for the latest information.
1 VPN Plus offers one free concurrent account with access to the premium features — WebVPN, Synology SSL VPN, and SSTP. Additional concurrent access requires licenses to be purchased from Synology.


Download the Synology Mesh Router MR2200ac Datasheet  (PDF).
