Synology RAM Module
For expanding your Synology DiskStation memory capacity
RAM capacity can be expanded on selected Synology NAS servers for boosted performance and responsiveness under high system loads. To ensure the optimum durability and compatibility, always select Synology authentic RAM modules from your local distributors and follow the installation instructions in your product quick installation guides.

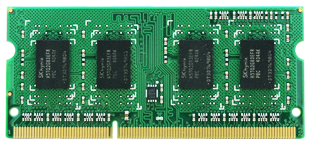

DDR3 Memory Module
SO-DIMM
D3NS1866L-4G - 4GB
DDR3L-1866 unbuffered SO-DIMM 204pin 1.35V
Applied Models
- Synology DiskStation: DS918+, DS718+, DS218+, DS418play
RAM1600DDR3-4G - 4GB
DDR3-1600 unbuffered SO-DIMM 204pin 1.35V/1.5V
Applied Models
- Synology DiskStation: DS2015xs, DS2415+, DS1815+, DS1515+, DS1817
- Synology RackStation: RS2416+/RS2416RP+, RS815+/RS815RP+
RAM1600DDR3L-4GBx2 - 8GB Kit (4GB x 2)
DDR3L-1600 unbuffered SO-DIMM 204pin 1.35V/1.5V
Applied Models
- Synology DiskStation: DS1817+, DS1517+
RAM1600DDR3L-8GBx2 - 16GB Kit (8GB x 2)
DDR3L-1600 unbuffered SO-DIMM 204pin 1.35V/1.5V
Applied Models
- Synology DiskStation: DS1817+, DS1517+

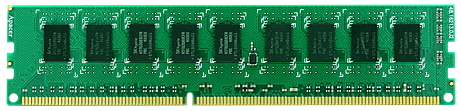

ECC RAM Module
RAMEC1600DDR3-2GBX2 - 4GB Kit (2GB x 2)
DDR3-1600 ECC unbuffered DIMM 240pin 1.5V
Applied Models
- Synology DiskStation : DS3615xs
- Synology RackStation : RS3617xs, RS3614xs/RS3614RPxs
RAMEC1600DDR3-4GBX2 - 8GB Kit (4GB x 2)
DDR3-1600 ECC unbuffered DIMM 240pin 1.5V
Applied Models
- Synology DiskStation : DS3615xs
- Synology RackStation : RS18016xs+, RC18015xs+, RS3614xs+, RS10613xs+, RS3413xs+, RS3617xs, RS3614xs/RS3614RPxs
RAMEC1600DDR3-8GBX2 - 16GB Kit (8GB x 2)
DDR3-1600 ECC unbuffered DIMM 240pin 1.5V
Applied Models
- Synology DiskStation : DS3615xs
- Synology RackStation : RS18016xs+, RC18015xs+, RS3614xs+, RS10613xs+, RS3413xs+, RS3617xs, RS3614xs/RS3614RPxs
DDR4 Memory Module
ECC SO-DIMM
RAMEC2133DDR4SO-16G - 16GB
DDR4-2133 ECC unbuffered SO-DIMM 260pin 1.2V
Applied Models
- Synology DiskStation : DS3018xs, DS3617xs

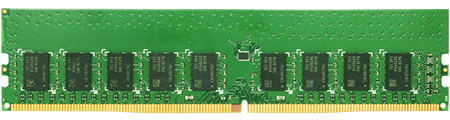

ECC UDIMM
RAMEC2133DDR4-8G - 8GB
DDR4-2133 ECC unbuffered DIMM 288pin 1.2V
Applied Models
- Synology RackStation: RS4017xs+, RS3617xs+, RS3617RPxs
RAMEC2133DDR4-16G - 16GB
DDR4-2133 ECC unbuffered DIMM 288pin 1.2V
Applied Models
- Synology RackStation: RS4017xs+, RS3617xs+, RS3617RPxs

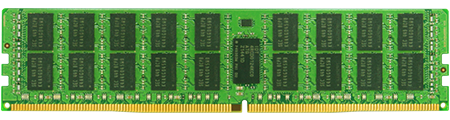

ECC RDIMM
RAMRG2133DDR4-16G - 16GB
DDR4-2133 ECC Registered DIMM 288pin 1.2V
Applied Models
- Synology FlashStation: FS3017, FS2017
- Synology RackStation: RS18017xs+
RAMRG2133DDR4-32G - 32GB
DDR4-2133 ECC Registered DIMM 288pin 1.2V
Applied Models
- Synology FlashStation: FS3017, FS2017
- Synology RackStation: RS18017xs+
