Synology RackStation RS1619xs+
1U rackmount flagship aims for file collaboration and high-performance computation

Overview:

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty.

• Powerful 1U NAS for growing businesses, featuring a quad-core CPU with AES-NI and 8 GB (up to 64 GB) DDR4 ECC UDIMM
• Built-in M.2 NVMe/SATA SSD slots for system cache support
• Excellent performance of over 1,523 MB/s sequential reading and 162,097 iSCSI random read IOPS
• Optional 10GbE NIC support
• Scalable up to 16 drives with Synology RX1217/RX1217RP
• Complete virtualization solution with Synology Virtual Machine Manager
• Backed by Synology’s 5-year limited warranty & Synology Replacement Service (SRS)

Powerful NAS Solution in 1U Form Factor

Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.

RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.

Features:

Variable options to boost system computing performance

Equipped with a PCIe 3.0 slot, RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.

• M.2 SSD support - Dual M.2 2280 slots supporting NVMe/SATA SSDs
• 10GbE/25GbE support - optional high-speed network capacity for bandwidth-intensive environments

---

---

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

• Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
• Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
• File or folder level data restoration makes data recovery fast and flexible
• Automatic file self-healing detects and recovers corrupted files without user intervention

---

---

---

Powered by Synology DiskStation Manager

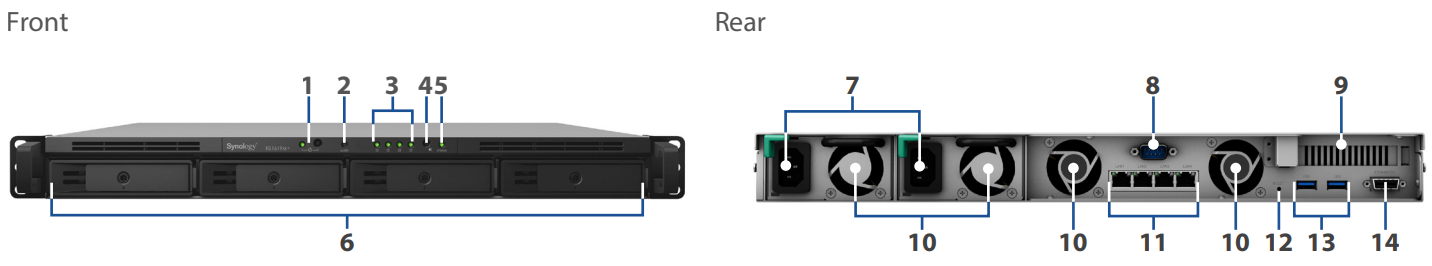

Specifications:

1. Power button and indicator
2. Alert indicator
3. Drive status indicator
4. Beep off button
5. Status indicator
6. Drive tray
7. Power port
8. Console port
9. PCIe expansion slot
10. Fan
11. 1GbE RJ-45 port
12. Reset button
13. USB 3.0 port
14. Expansion port

RackStation RS1619xs+ Hardware Specifications:
Hardware Specifications
CPU	Intel Xeon D-1527 quad-core 2.2GHz, Turbo Boost up to 2.7GHz
Hardware encryption engine	Yes (AES-NI)
Memory	8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
Compatible drive type	4 x 3.5" or 2.5" SATA SSD/HDD (drives not included) 2 x M.2 2280 NVMe/SATA SSD (drives not included)
Hot swappable drive	Yes
External port	2 x USB 3.0 port 1 x Expansion port
Size (Height x Width x Depth)	44 x 430.5 x 483.6 mm 44 x 480 x 518.6 mm (with server ears)
Weight	8.16 kg
LAN port	4 x 1GbE RJ-45
Wake on LAN/WAN	Yes
PCIe 3.0 slot	1 x 8-lane x8 slot 10GbE/25GbE network interface card support
Scheduled power on/off	Yes
System fan	2 (40 x 40 x 28 mm)
AC input power voltage	100 V to 240 V AC
Power Frequency	50 to 60Hz, single phase
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Maximum operating altitude	5,000 m (16,400 ft)
General DSM specification
Networking protocol	SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
File system	Internal: Btrfs, ext4 External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Supported RAID type	Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID F1
Storage management	Maximum single volume size: 108TB/200TB (at least 32 GB RAM required, for RAID 5 or RAID 6 groups only) Maximum system snapshots: 65,536 Maximum internal volume: 1,024
SSD cache	Read-write cache support M.2 SSD support (M.2 NVMe/SATA SSD)
File sharing capability	Maximum local user account: 16,000 Maximum local group: 512 Maximum shared folder: 512 Maximum concurrent SMB/NFS/AFP/FTP connection: 2,000
Privilege	Windows Access Control List (ACL), application privileges
Directory service	Windows AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration
Virtualization	VMware vSphere 6.5, Microsoft Hyper-V, Citrix, OpenStack
Security	Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite)
Supported client	Windows 7 onwards, macOS 10.12 onwards
Supported browser	Chrome, Firefox, Internet Explorer 11 onwards, Safari 11 onwards; Safari (iOS 11 onwards), Chrome (Android™ 6.0 onwards)
File Server & Synchronization
Drive	Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android™ and iOS. The built-in universal portal allows you to access data anytime and anywhere. Maximum number of hosted files: 3,000,000 Maximum number of concurrent connections for PC clients: 1,800
File Station	Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs.
FTP Server	Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs.
Presto File Server	Enables high-speed data transfer over WAN through the exclusive SITA technology between Synology NAS and desktop.
Cloud Sync	Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Amazon S3- compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk.
Universal Search	Enables global search of applications and files.
File Server & Synchronization
iSCSI Manager	Maximum iSCSI target: 256 Maximum iSCSI LUN: 512 iSCSI LUN clone/snapshot support
Virtual Machine Manager	Deploy and run various virtual machines on Synology NAS, including Windows®, Linux®, or Virtual DSM
Data Protection & Backup Solution
Hyper Backup	Support local backup, network backup, and data backup to public clouds
Backup tools	DSM configuration backup, macOS® Time Machine® support, Synology Drive Client desktop application Shared folder sync - maximum task number: 32
Snapshot Replication	Maximum of shared folder snapshots: 1,024 Maximum of replication: 64
Synology High Availability	Reduce service downtime by setting up two identical NAS into one high-availability cluster
Active Backup for G Suite	Support G Suite My Drive and Team Drive backup and restoration
Active Backup for Microsoft 365	Support Office 365 OneDrive for Business, mail, contacts, and calendar backup and restoration
Active Backup for Business	All-in-one backup solution designed for heterogeneous business IT environment, enabling IT admins to remotely manage and monitor protection over PC, servers and VM on one centralized console
Productivity & Collaboration
Collaboration tools	Users can collaborate through the instant messaging service Synology Chat, the online editor Synology Office, and the scheduling assistant Synology Calendar. Chat maximum user: 4,000 Office maximum user: 2,900 Calendar: support CalDAV and access via mobile devices
Note Station	A note taking platform that supports rich text, note organization and versioning, encryption, sharing, media embedding, and attachments.
Synology MailPlus Server	Secure, reliable, and private mail solution with high-availability, load balancing, security and filtering design (Includes 5 free email account licenses; additional accounts require the purchasing of additional licenses)
Synology MailPlus	An intuitive webmail interface for Synology MailPlus Server with customizable mail labels, filters, and user interface.
Multimedia
Moments	Support smart AI album with facial and subject recognition, photo editing and sharing features, and iOS and Android mobile applications
Other packages	Video Station, Photo Station, Audio Station, iTunes Server
Surveillance
Surveillance Station	Maximum IP camera: 75 (total of 2,250 FPS at 720p, H.264) (Including two free camera licenses; additional cameras require the purchasing of additional licenses)
All-in-One Server
Synology Directory Server	Provide a flexible and cost-effective domain controller solution
Central Management System	Provide a single interface to manage and monitor multiple Synology NAS
VPN Server	Maximum connection: 40 Supported VPN protocol: PPTP, OpenVPN™, L2TP/IPSec
Mail Server	Supported Mail Server protocols: POP3, SMTP, IMAP LDAP/AD account support
Mail Station	Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server
Web Station	Virtual host (up to 30 websites), PHP/MariaDB, 3rd-party applications support
Other packages	DNS Server, RADIUS Server, Log Center
Others
Storage Analyzer	Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, least recently accessed files
Antivirus Essential	Full system scan, scheduled scan, white list customization, virus definition auto update

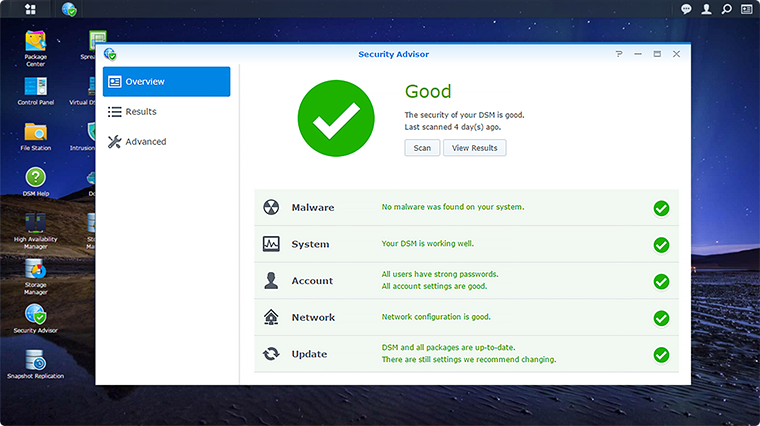

Security Advisor	Malware detection/removal, user account/password, network, system-related security scan
Other packages	Additional 3rd-party packages available on Package Center
Certifications and Packaging
Environment safety	RoHS compliant
Package content	1 x RS1619xs+ main unit 1 x Quick Installation Guide 1 x Accessory pack 2 x AC power cord
Optional accessories	8GB/16GB DDR4-2133 ECC UDIMM (RAMEC2133DDR4-8G/RAMEC2133DDR4-16G) Synology E10G17-F2/E10G18-T1/E10G18-T2 10Gbps Ethernet adapters Synology Expansion Unit RX1217/RX1217RP Synology Rail Kit RKM114-Rail Kit Mounted / RKS1317-Rail Kit Sliding VisualStation VS360HD, VS960HD Surveillance Device License Pack MailPlus License Pack Virtual DSM License Pack
Warranty	5 Years

Documentation:

Download the Synology RackStation RS1619xs+ Datasheet  (PDF).
